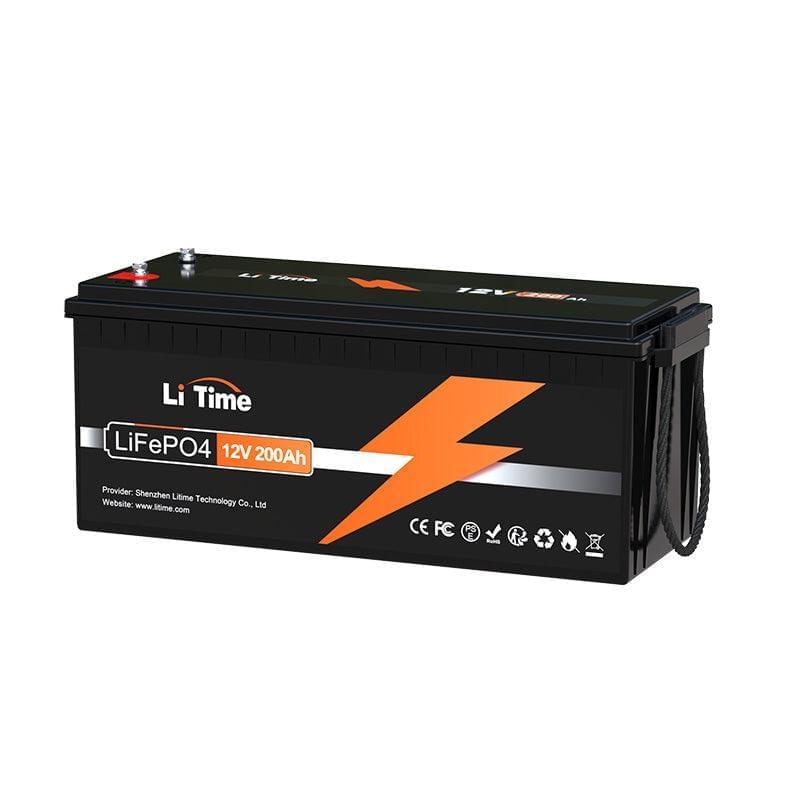

LiTime 12V 200Ah Lithium Battery

Q: How long will a 12V 200Ah battery last?

Run Time (hours) = Battery Capacity (Ah) / Current (A)The higher the discharge rate (amount of current/amps being drawn from the battery), the shorter the duration it will last.For example:A 200Ah battery discharging at just 10A could theoretically last around 20 hours. Discharging at 50A would last only around 4 hours.

Q: How to charge LiTime LiFePO4 lithium batteries?

1. Using Solar PanelsThe battery can be fully charged in one day (with effective sunshine 4.5 hrs/day) by 800W solar panels. It may take more than one day to fully charge the battery by ≥800W solar panels since the duration and intensity of light would be a great factor for their charging efficiency. Besides solar panels, there are 2 more ways to charge.2. Generator/AlternatorIf the alternator or generator supports DC output, a DC-to-DC charger is needed to connect the battery to the generator; if your alternator or generator supports AC output, please add a suitable battery charger to connect the battery and the generator according to our recommendations. The Recommended Charging Voltage: 14.2V - 14.6V. The Recommended Charging Current: ① 20A (0.2C): the battery will be fully charged in around 5 hrs to 100% capacity; ② 50A (0.5C): the battery will be fully charged in around 2 hrs to around 97% capacity.3. LiFePO4 Smart ChargersTo charge 12V battery, it is recommended to use 14.6V battery charger. The Recommended Charging Voltage: 14.2V - 14.6V. The Recommended Charging Current: ① 20A (0.2C): the battery will be fully charged in around 5 hrs to 100% capacity; ② 50A (0.5C): the battery will be fully charged in around 2 hrs to around 97% capacity.Related reading: Can I Charge LiFePO4 batteries with a Normal Charger?

Q: How do I store LiTime LiFePO4 lithium batteries?

It is recommended to store LiTime LiFePO4 batteries at 50% state of charge (SOC). If the batteries are stored for long periods, cycle the batteries at least every 3 months. Recommended storage environment: 10℃～35℃ (50℉～95℉), 45%RH～75％RH

C$599.99

C$1,299.98

- 53.85 %

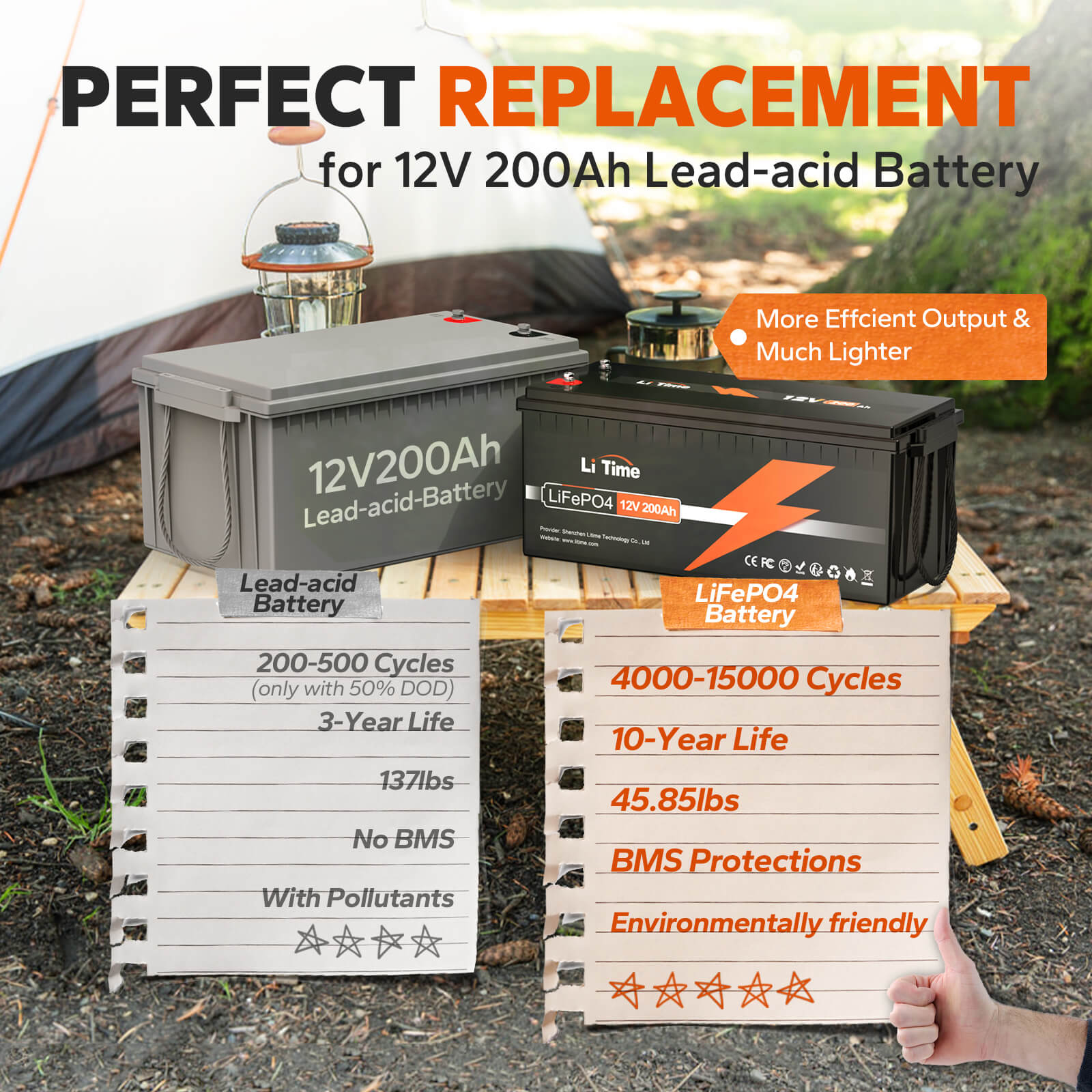

Perfect Replacement for 12V 200Ah Lead-acid Battery
-2560Wh Energy, 1280W Continuous Output Power
-Max 40.96kWh Energy (4P4S)

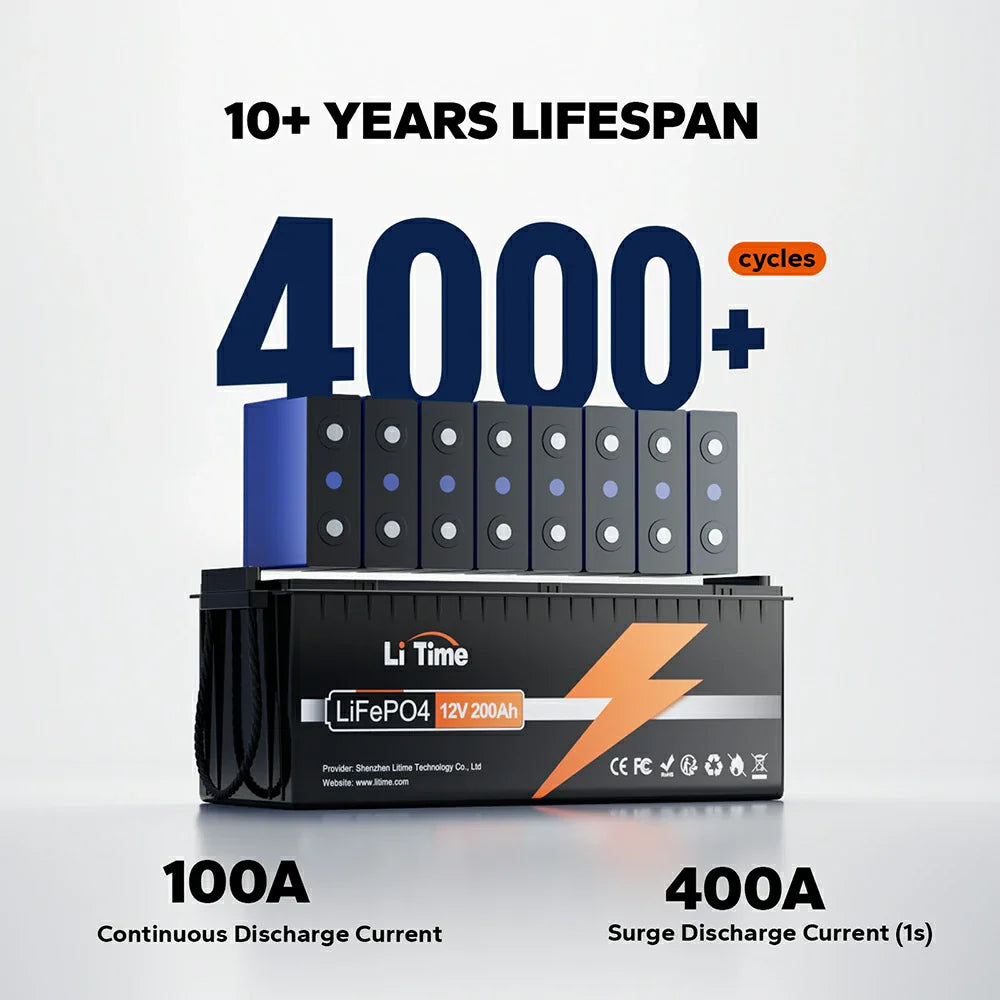

-EV Grade-A Cells, 4000+ cycles @100%DOD
-400(1S) of High Discharging Current
-LiTime's 100A BMS provides 100% protection (overcharge, over-discharge, over-current, overheating, and short circuits)
-1/3 the Weight of 12V 200Ah Lead-acid Battery
-53Wh/lb energy density
-Suitable for RVs/Campers/Home Storage/Off-grid/Marine/Trolling Motors(30~70 lb)
-IP65 Waterproof
-3 Charging Ways (LiFePO4 charger, Solar, Generator)
-Free Maintenance, Lower TCO (total cost of ownership)
-Fast Delivery & Excellent Customer Service
-DO NOT use as Starter Battery.

Choose Products

Comparison

1 Pack 12V 200Ah

C$599.99 C$1,299.98

Hurry up and buy, only 8 Left

2 Pack (C$593.99 /Each)

C$1,187.98 C$2,599.96

3 Pack (C$593.99 /Each)

C$1,781.97 C$3,899.94

Out of Stock

4 Pack (C$587.99 /Each)

C$2,351.96 C$5,199.92

Out of Stock

Quantity:

C$599.99

C$1,299.98

- 53.85 %

5 Years Warranty

Backed up by techical support within 24hrs

Free Shipping

Free standard shipping on all orders

Free Returns

30 Days Hassle Free Returns

12V 200Ah

C$599.99

C$1,299.98

[{"alt":"litime12v 200ah lithium battery","id":36729590743336,"position":1,"preview_image":{"aspect_ratio":1.0,"height":800,"width":800,"src":"\/\/ca.litime.com\/cdn\/shop\/files\/LiTime12V200AhLiFePO4LithiumBattery_7cc985a4-8351-4cf1-8d2a-7d4d3effcade_1.jpg?v=1725432893"},"aspect_ratio":1.0,"height":800,"media_type":"image","src":"\/\/ca.litime.com\/cdn\/shop\/files\/LiTime12V200AhLiFePO4LithiumBattery_7cc985a4-8351-4cf1-8d2a-7d4d3effcade_1.jpg?v=1725432893","width":800},{"alt":"litime12v 200ah lithium battery size","id":32189223797032,"position":2,"preview_image":{"aspect_ratio":1.0,"height":1600,"width":1600,"src":"\/\/ca.litime.com\/cdn\/shop\/products\/LiTime12V200AhLiFePO4LithiumBattery2.jpg?v=1725432893"},"aspect_ratio":1.0,"height":1600,"media_type":"image","src":"\/\/ca.litime.com\/cdn\/shop\/products\/LiTime12V200AhLiFePO4LithiumBattery2.jpg?v=1725432893","width":1600},{"alt":"litime12v 200ah lithium battery superior bms","id":32189223862568,"position":3,"preview_image":{"aspect_ratio":1.0,"height":1600,"width":1600,"src":"\/\/ca.litime.com\/cdn\/shop\/products\/LiTime12V200AhLiFePO4LithiumBattery3.jpg?v=1725432893"},"aspect_ratio":1.0,"height":1600,"media_type":"image","src":"\/\/ca.litime.com\/cdn\/shop\/products\/LiTime12V200AhLiFePO4LithiumBattery3.jpg?v=1725432893","width":1600},{"alt":"litime12v 200ah lithium battery back up powar","id":32189223895336,"position":4,"preview_image":{"aspect_ratio":1.0,"height":1600,"width":1600,"src":"\/\/ca.litime.com\/cdn\/shop\/products\/LiTime12V200AhLiFePO4LithiumBattery4.jpg?v=1725432893"},"aspect_ratio":1.0,"height":1600,"media_type":"image","src":"\/\/ca.litime.com\/cdn\/shop\/products\/LiTime12V200AhLiFePO4LithiumBattery4.jpg?v=1725432893","width":1600},{"alt":"litime12v 200ah lithium battery connection","id":32189223928104,"position":5,"preview_image":{"aspect_ratio":1.0,"height":1600,"width":1600,"src":"\/\/ca.litime.com\/cdn\/shop\/products\/LiTime12V200AhLiFePO4LithiumBattery5.jpg?v=1725432893"},"aspect_ratio":1.0,"height":1600,"media_type":"image","src":"\/\/ca.litime.com\/cdn\/shop\/products\/LiTime12V200AhLiFePO4LithiumBattery5.jpg?v=1725432893","width":1600},{"alt":"litime12v 200ah lithium battery 3 charger methods","id":32189223960872,"position":6,"preview_image":{"aspect_ratio":1.0,"height":1600,"width":1600,"src":"\/\/ca.litime.com\/cdn\/shop\/products\/LiTime12V200AhLiFePO4LithiumBattery6.jpg?v=1725432893"},"aspect_ratio":1.0,"height":1600,"media_type":"image","src":"\/\/ca.litime.com\/cdn\/shop\/products\/LiTime12V200AhLiFePO4LithiumBattery6.jpg?v=1725432893","width":1600},{"alt":"Lithium batteries are better than lead-acid batteries","id":32189224026408,"position":7,"preview_image":{"aspect_ratio":1.0,"height":1600,"width":1600,"src":"\/\/ca.litime.com\/cdn\/shop\/products\/LiTime12V200AhLiFePO4LithiumBattery7.jpg?v=1725432893"},"aspect_ratio":1.0,"height":1600,"media_type":"image","src":"\/\/ca.litime.com\/cdn\/shop\/products\/LiTime12V200AhLiFePO4LithiumBattery7.jpg?v=1725432893","width":1600}]

FEATURES

SPECS

FAQ

REVIEWS

One for All Solutions

The LiTime 12V 200Ah LiFePO4 lithium battery delivers unmatched energy and performance with EV Grade-A cells and a reliable BMS, making it ideal for indoor and outdoor applications where safety and power are paramount.

LiTime 12V 200Ah LiFePO4 Lithium Battery less weight

LiFepo4 Battery, for A Greener Future

The durable LiTime 12V 200Ah lithium battery powers all your needs and benefits our future through EV Grade-A LiFePO4 cells enabling longevity and eco-friendly design. Passing UL, FCC, CE, RoHS and UN38.3 certifications ensures the stable high-performance and safety of LiTime battery.

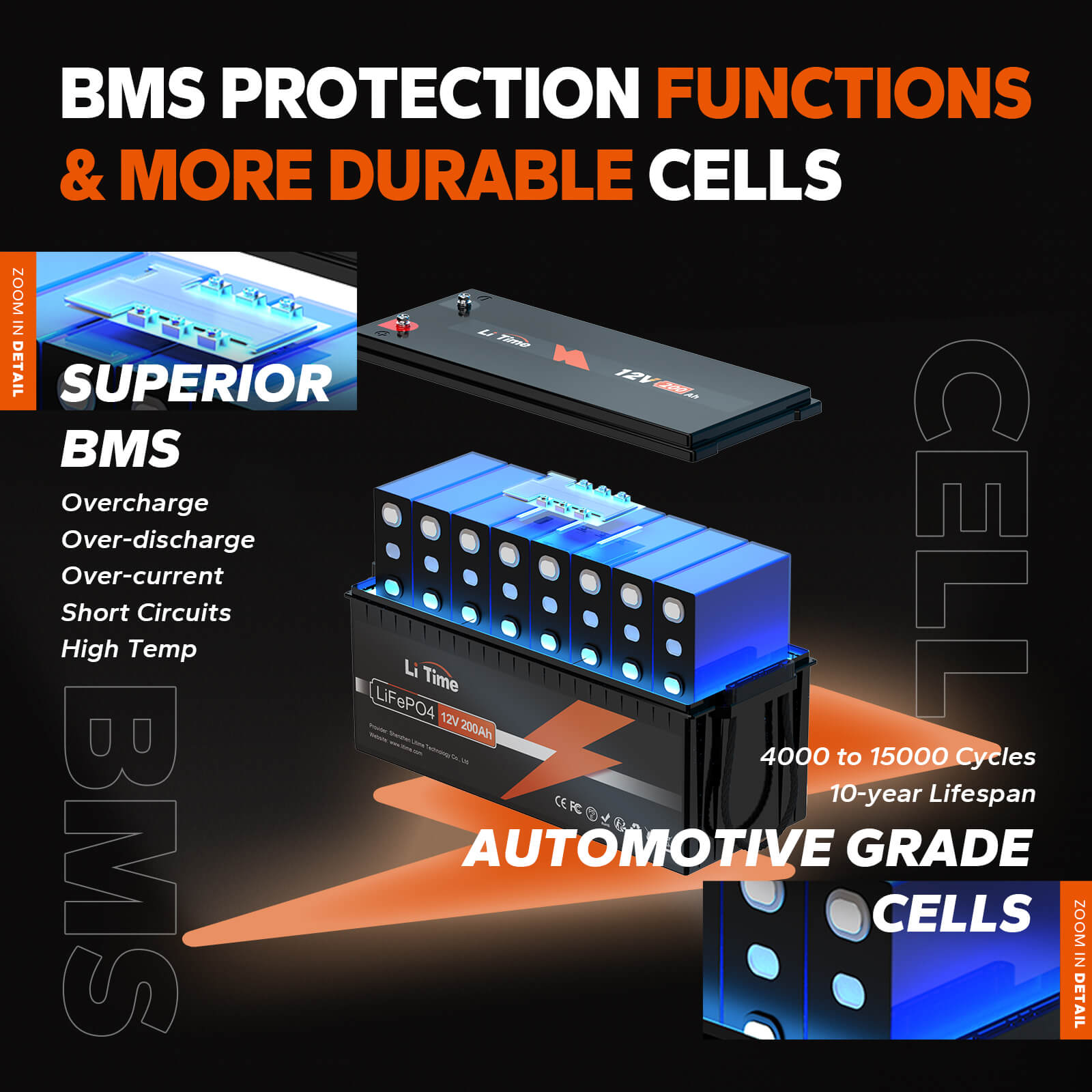

LiTime 12V 200Ah LiFePO4 Lithium Battery superior bms

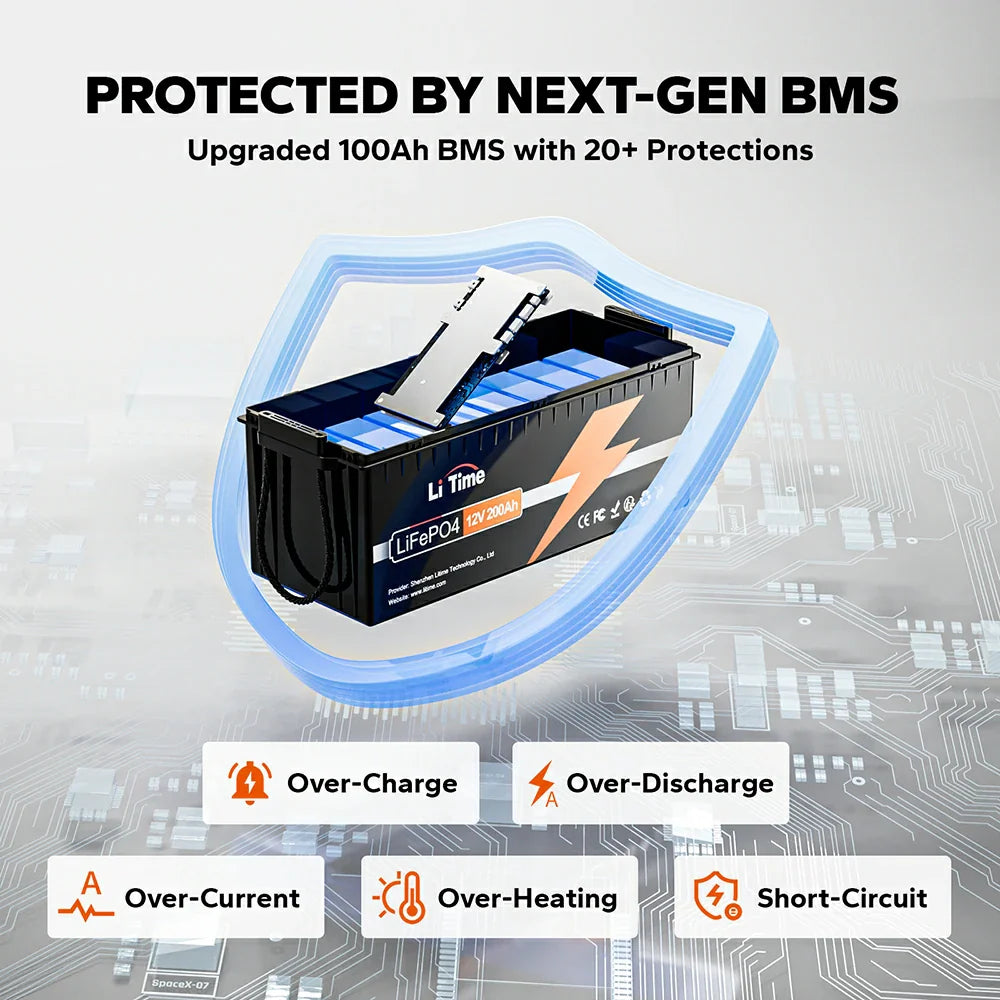

High-Performance Protection

The built-in 100A BMS protects the 12V 200Ah LiFePO4 battery from potential risks for long-term use. It has protections against overcharge, over-discharge, over-current, and short circuits. Built-in high-temp cut-off protection prevents it when charging temp is over 167 °F (75 °C). An ultra-low self-discharge rate makes it longer-lasting.

LiTime 12V 200Ah LiFePO4 Lithium Battery applications

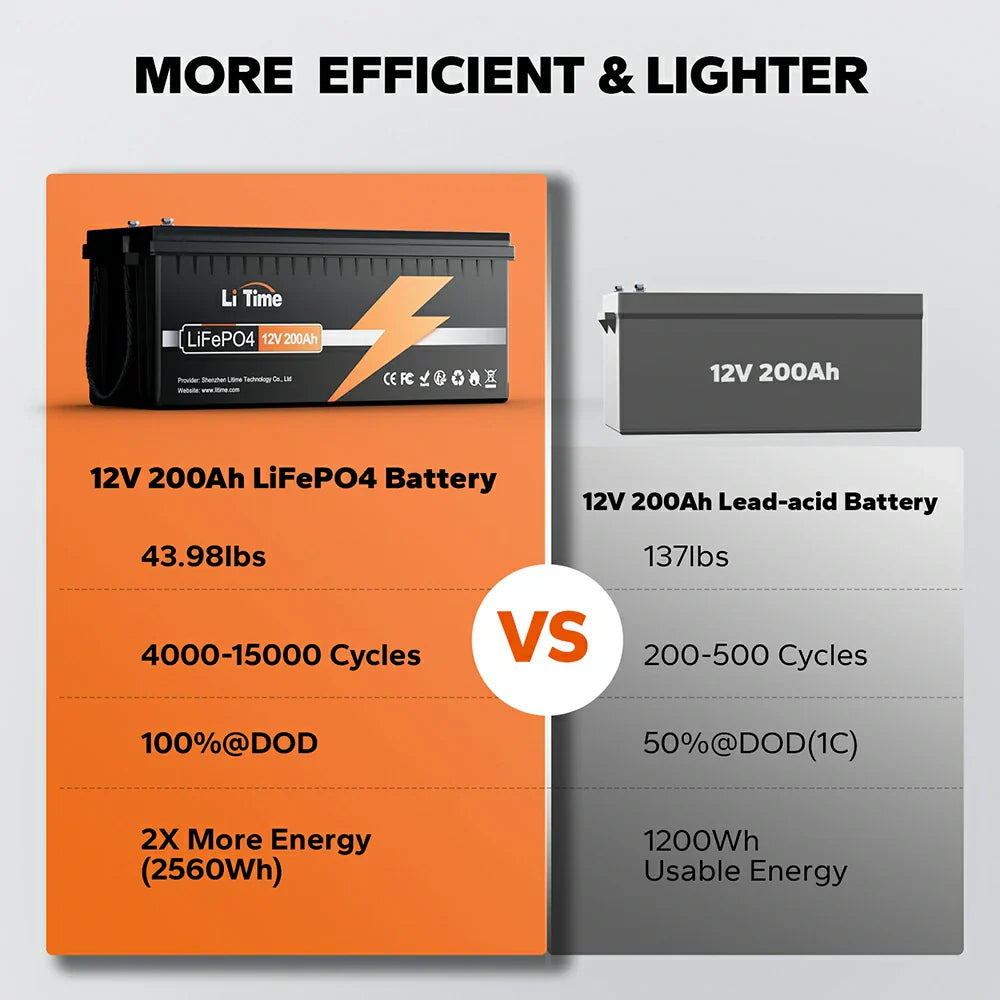

Superior to Lead Acid

LiTime 12V 200Ah LiFePO4 battery weighs 48.28 lbs, only 1/3 of a 12V 200Ah lead acid battery, making it easier to install and transport for indoor and outdoor power needs.

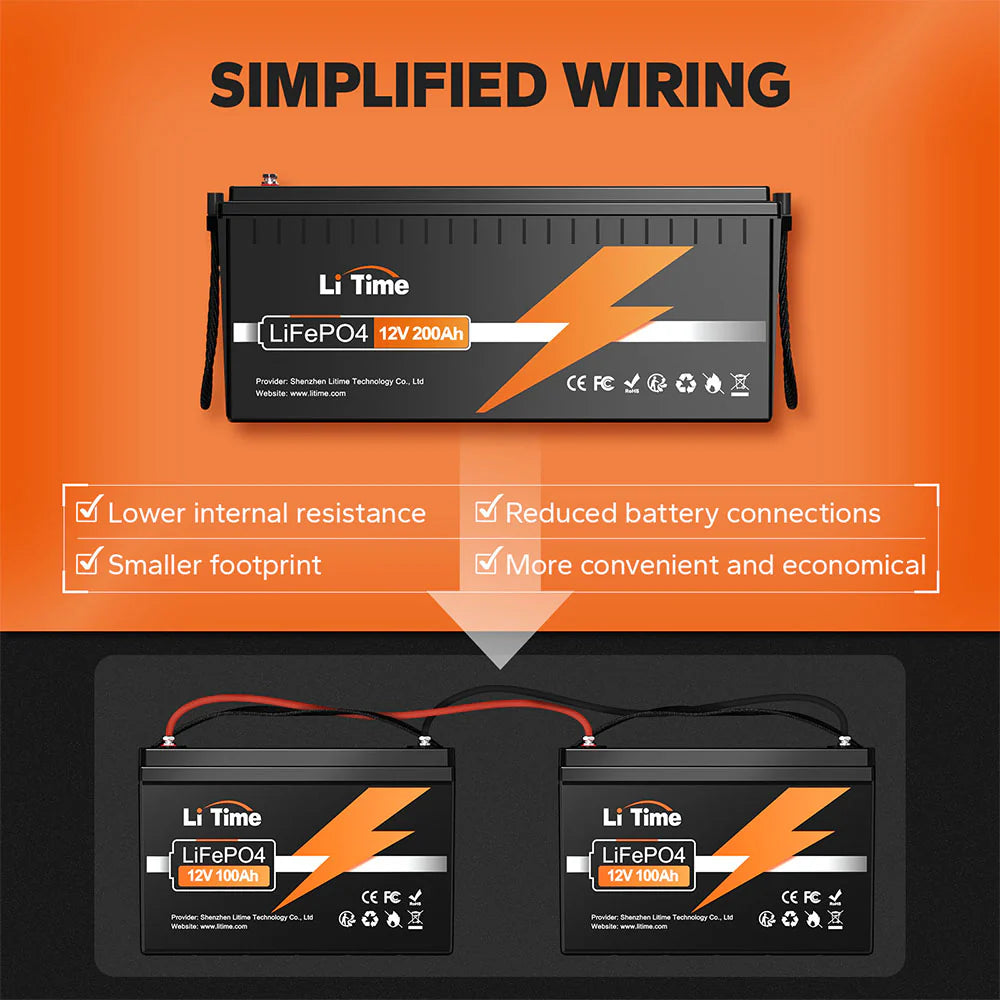

LiTime 12V 200Ah LiFePO4 Lithium Battery connection

More Juice, Less Fuss

The LiTime 12V 200Ah LiFePO4 battery is superior to lead-acid batteries in all aspects, capacity in particular. LiTime 12V 200Ah LiFePO4 battery powers 2560Wh, 2X energy of a 12V 100Ah LiFePO4 battery. A battery with 2560Wh usable energy can be your confident solution for various applications.

Power tailored for you

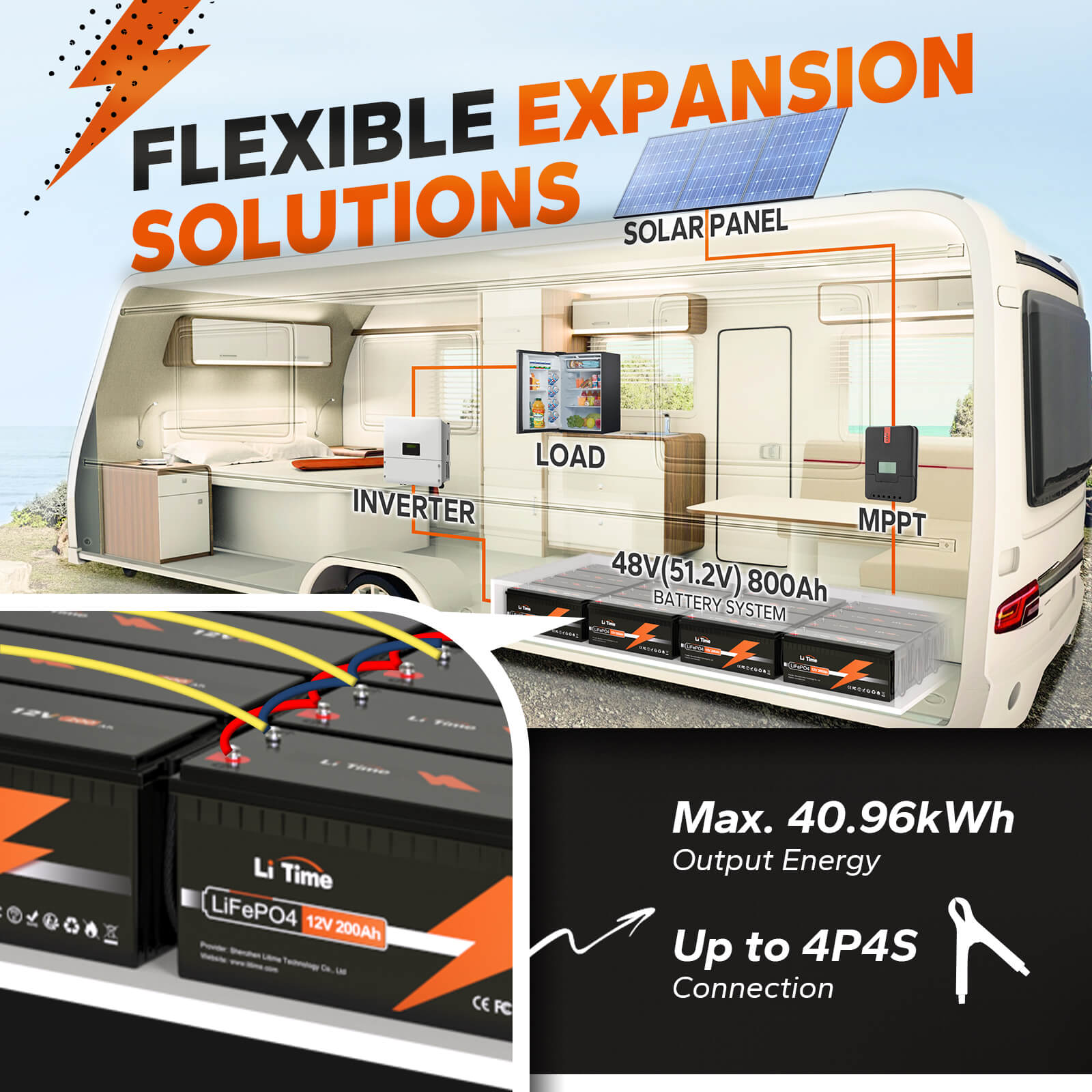

Customizable LiTime battery solutions provide Max. 40960Wh energy for your indoor needs and outdoor adventures. It supports up to 4P4S to build a 51.2V 800Ah battery system.

Your One-Stop Juice Station

The durable yet powerful LiTime battery provides reliable power for RVs, Campers, Home Storage, Off-grid, Solar, Marine, Trolling Motors(30~70 lb) and more. You do not need to worry about power-off when the electricity is cut off or go traveling, camping and fishing.

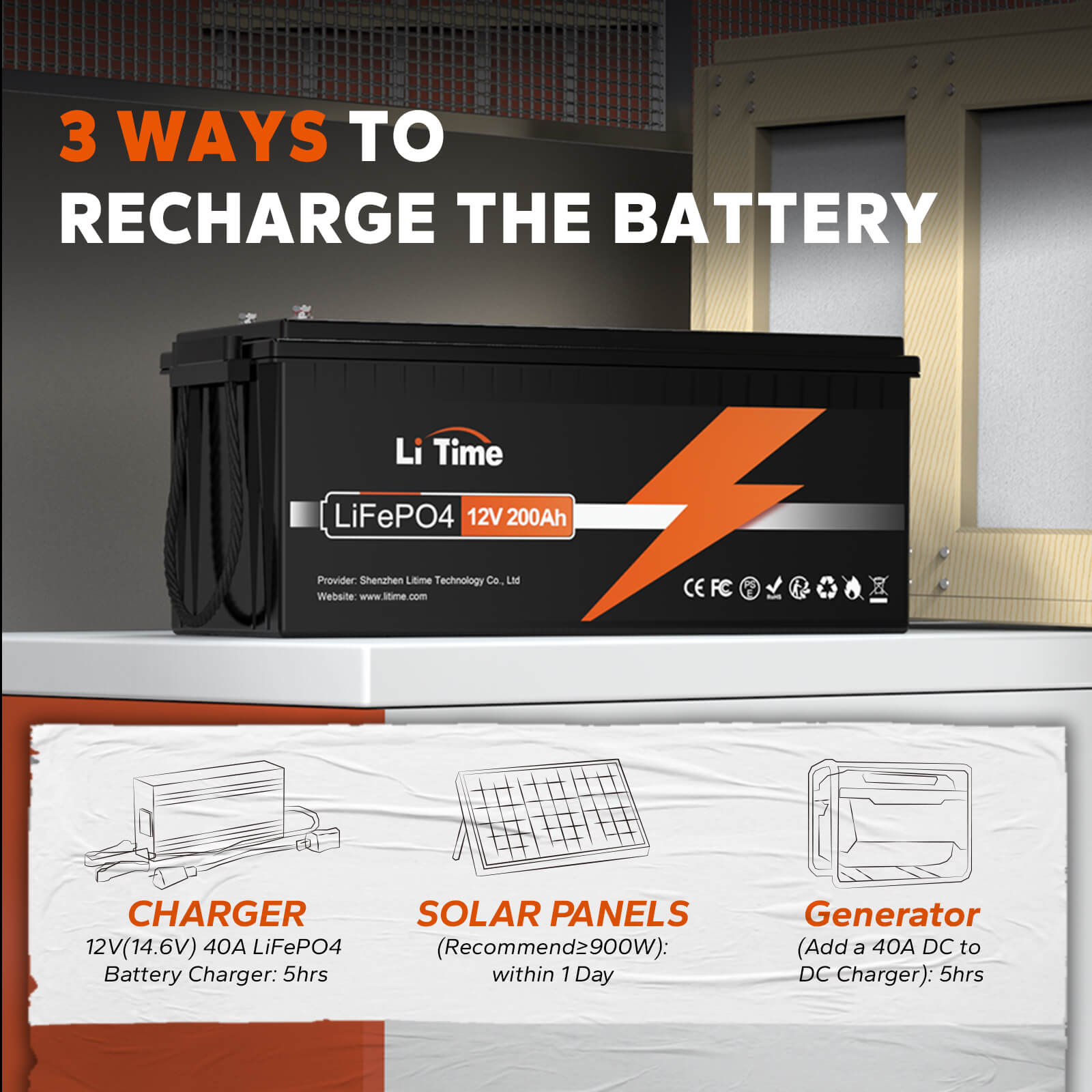

Fast Flexible Charging

LiTime battery has faster charging efficiency than lead-acid and supports various quick charge options for continuous high performance. Without memory effect, you can charge the battery via a LiFePO4 charger, solar panel and generator partially or fully anytime.

Precautions for Usage

Tips for a better user experience and batteries' health.

5 Year Warranty, USA Local Warehouses, Fast Delivery, Best Customer Service

BATTERY

Cell Type：

Various Scenarios

Warranty：

5 Years

Cycle Life：

4000 cycles at 100% DOD, 6000 cycles at 80% DOD, 15,000 cycles at 60% DOD

Nominal Voltage：

12.8V

Rated Capacity：

200Ah

Energy：

2560Wh

Max. Expansion (Parallel & Series)：

4P4S

Internal Resistance：

≤40mΩ

Certifications：

UL, FCC, CE, RoHS, UN38.3

BMS

BMS：

100A

Max. Continuous Output Power：

1280W

Max. Continuous Charge Current：

100A

Max. Continuous Discharge Current：

100A

Max. Discharge Current 5 Seconds：

280A

CHARGE

Charge Method：

CC/CV

Charge Voltage：

14.4V ± 0.2V

Recommend Charge Current：

40A (0.2C)

TEMPERATURE

Charge Temperature：

0℃ to 50℃ / 32℉ to 122℉

Discharge Temperature：

-20℃ to 60℃ / -4℉ to 140℉

Storage Temperature：

-10℃ to 50℃ / 14℉ to 122℉

Low-Temperature Protection：

N/A

Low-Temperature Charging Protection Auto Recovery：

N/A

SELF-HEATING

Heating Temperature：

N/A

Approx. Heating Time：

N/A

OTHERS

Terminals：

M8 bolts

Weight Approx.：

44lbs

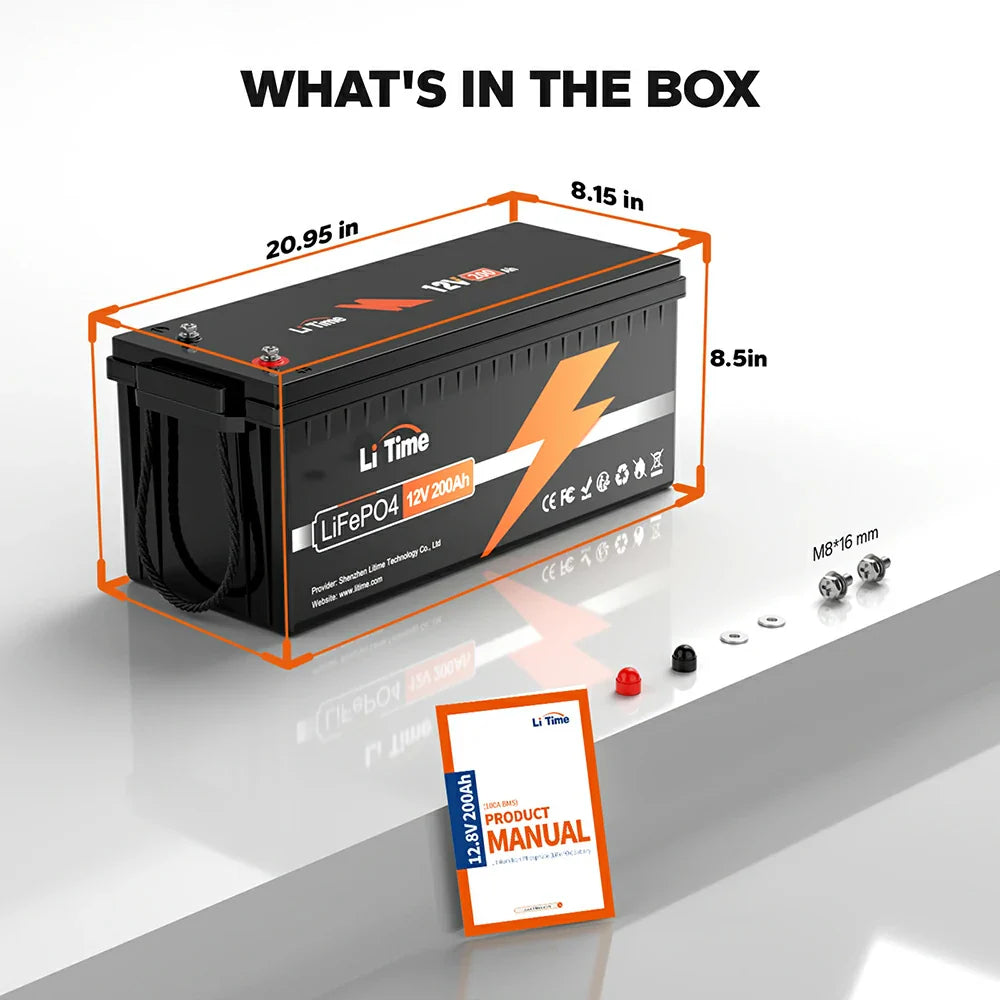

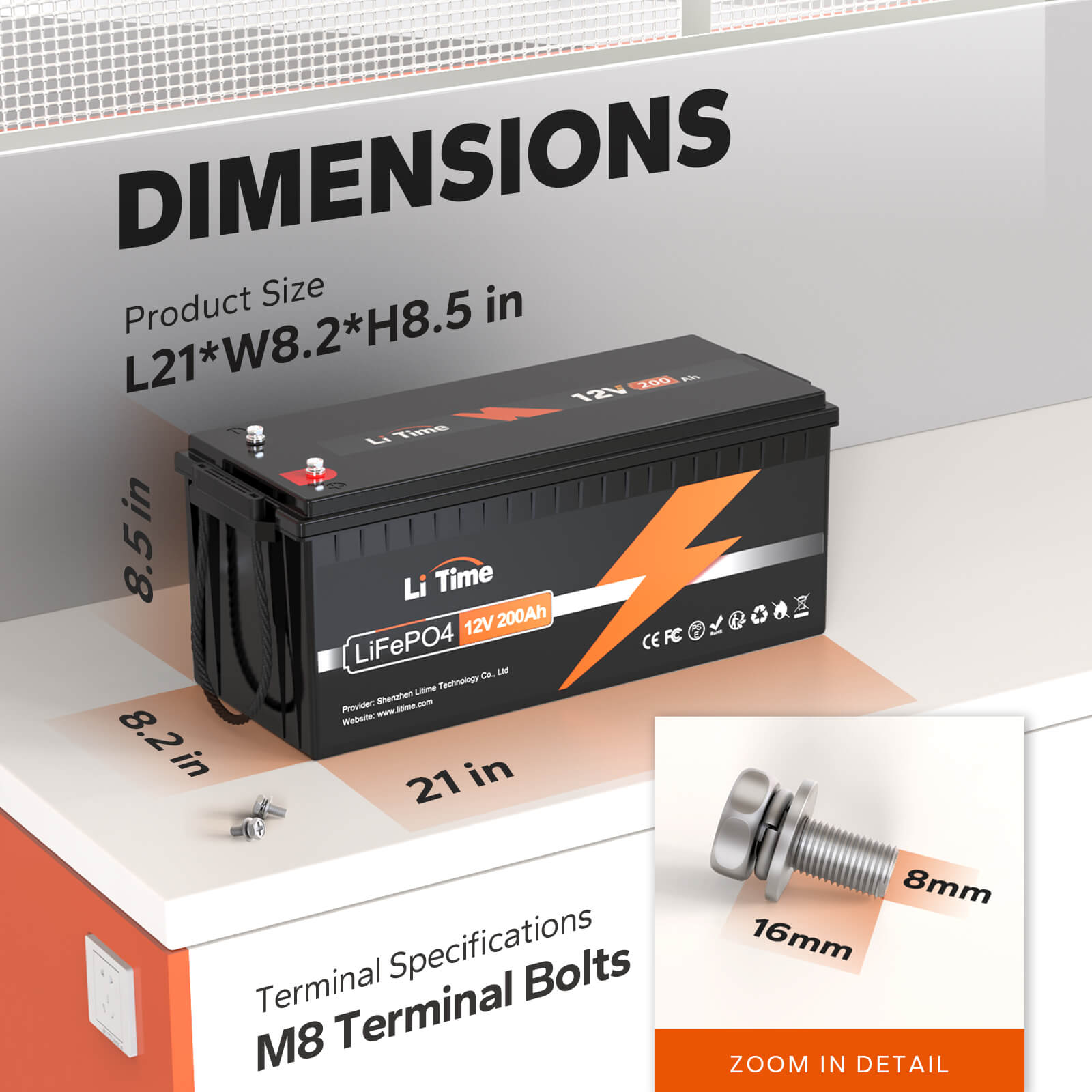

Size：

L21*W8.2*H8.5inch

Housing Material：

ABS

Protection Class：

IP65

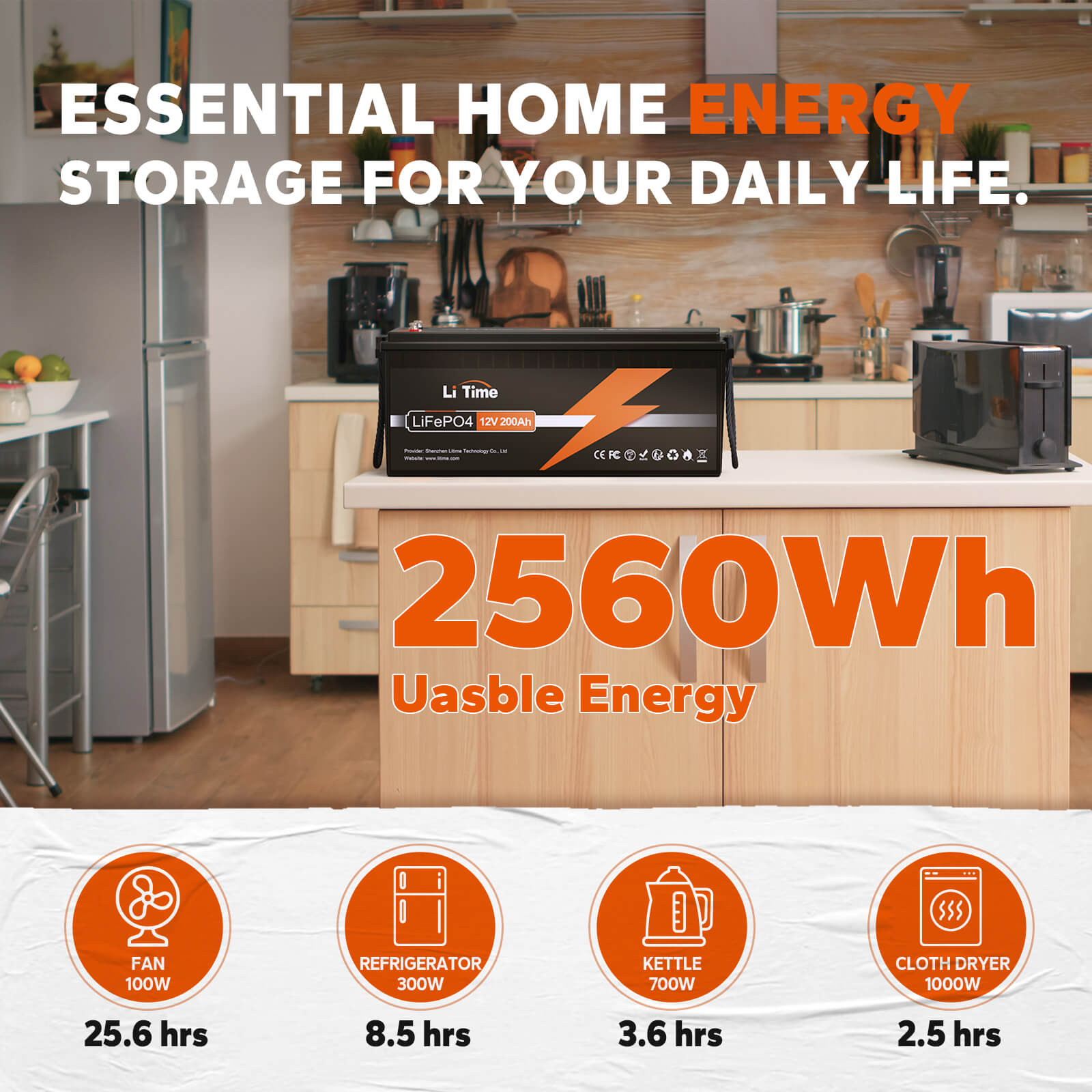

How long will a 12V 200Ah battery last?

Run Time (hours) = Battery Capacity (Ah) / Current (A)

The higher the discharge rate (amount of current/amps being drawn from the battery), the shorter the duration it will last.

For example:

A 200Ah battery discharging at just 10A could theoretically last around 20 hours. Discharging at 50A would last only around 4 hours.

What's the difference between LiTime 12V 200Ah and 200Ah Plus?

The BMS boards are different. The 200Ah battery uses a 100A BMS, which can accept a maximum continuous charge/discharge current of 100A. The Plus version uses a 200A BMS, which can accept a maximum continuous charge/discharge current of 200A.

Are LiTime LiFePO4 Lithium batteries safe?

Yes. LiFePO4 is an inherently safe chemistry and the most stable lithium-type battery on the market. LiTime lithium cells are UL certified for the highest safety and sustainability standards. All LiTime LiFePO4 batteries come with an internal Battery Management System which protects against under-voltage during discharge, over-voltage during charge, over-current during discharge, over-temperature during charge and discharge, and short-circuit protection – protects battery cells from damage. Additionally, LiTime LiFePO4 Lithium batteries have been tested to be free from the risk of fire, and electric shock in harsh environments.

Can I pair a Bluetooth Module for this battery to monitor the battery status on the phone?

No. This battery is not compatible with the Bluetooth module. You can use a 500A Battery Monitor With Shunt to keep track of battery status.

Can I use LiTime LiFePO4 Lithium batteries as starting batteries?

No. LiTime LiFePO4 lithium batteries are not intended to be used as starting batteries but energy storage, please do not use them to start any devices.

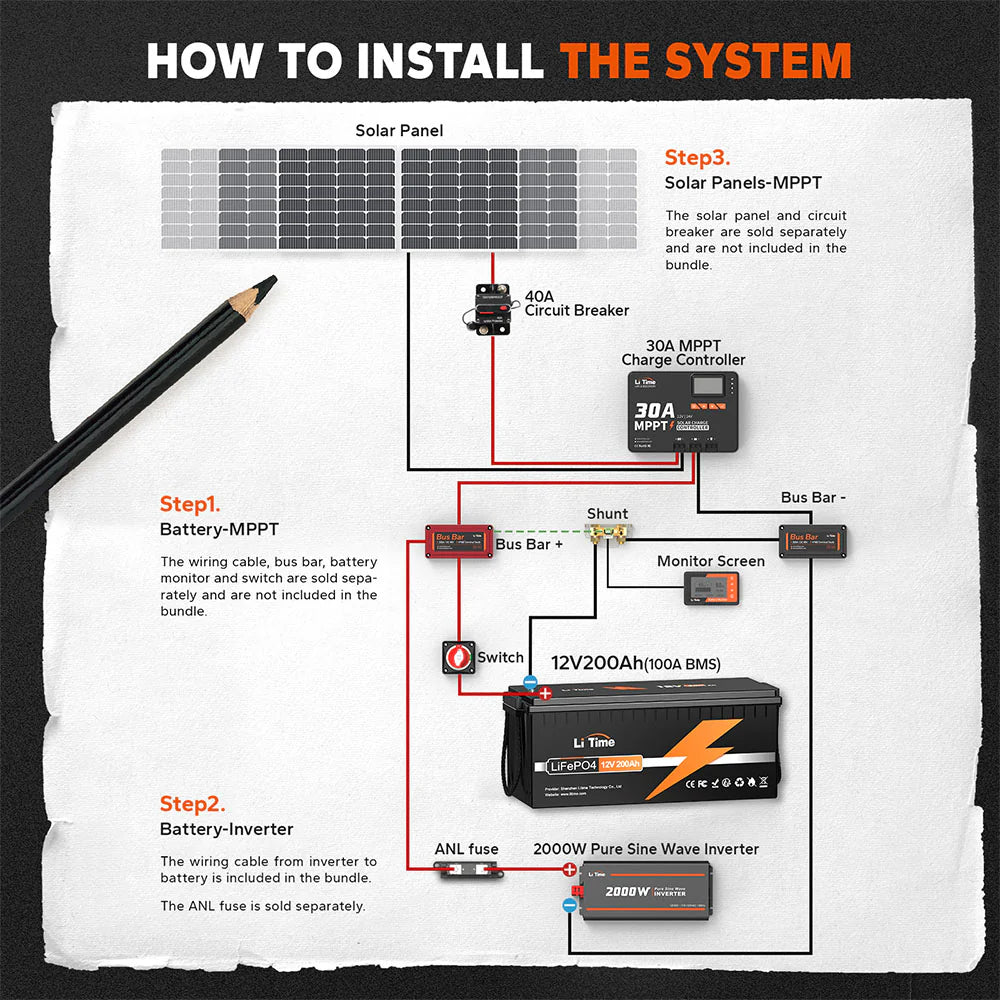

How to charge LiTime LiFePO4 lithium batteries?

1. Using Solar Panels

The battery can be fully charged in one day (with effective sunshine 4.5 hrs/day) by 800W solar panels. It may take more than one day to fully charge the battery by ≥800W solar panels since the duration and intensity of light would be a great factor for their charging efficiency. Besides solar panels, there are 2 more ways to charge.

2. Generator/Alternator

If the alternator or generator supports DC output, a DC-to-DC charger is needed to connect the battery to the generator; if your alternator or generator supports AC output, please add a suitable battery charger to connect the battery and the generator according to our recommendations. The Recommended Charging Voltage: 14.2V - 14.6V. The Recommended Charging Current: ① 20A (0.2C): the battery will be fully charged in around 5 hrs to 100% capacity; ② 50A (0.5C): the battery will be fully charged in around 2 hrs to around 97% capacity.

3. LiFePO4 Smart Chargers

To charge 12V battery, it is recommended to use 14.6V battery charger. The Recommended Charging Voltage: 14.2V - 14.6V. The Recommended Charging Current: ① 20A (0.2C): the battery will be fully charged in around 5 hrs to 100% capacity; ② 50A (0.5C): the battery will be fully charged in around 2 hrs to around 97% capacity.

Is it okay to keep the charger connected to the battery without disconnecting?

It is recommended to disconnect the charger from the battery or unplug the charger plug from the socket when the storage battery is fully charged. Otherwise, it may cause the battery BMS to trigger overcharging protection.

If BMS protection is frequently triggered, the BMS will be damaged over time, leading to degradation of the battery system performance or even damage.

Can I charge LiTime LiFePO4 lithium batteries in cold weather (under freezing temperatures)?

LiFePO4 batteries can safely charge between 32°F to 113°F (0°C to 45°C). LiTime 12V 200Ah lithium battery doesn't have low-temperature protection, so it suggest to charge the 12V 200Ah deep cycle battery indoor.

How do I store LiTime LiFePO4 lithium batteries?

It is recommended to store LiTime LiFePO4 batteries at 50% state of charge (SOC). If the batteries are stored for long periods, cycle the batteries at least every 3 months. Recommended storage environment: 10℃～35℃ (50℉～95℉), 45%RH～75％RH

perfect fast shiping

Good battery works great

Bat

Saw one of your batterys on line with larger capacity for the same price. Very disappointed

Batteries are great….

You just need to allow customers to select a courier. UPS are the WORST courier company who made me sit around for two days because they lied about the delivery. You would have got at least one more star otherwise….

12v 200AH

So far so good. Was surprised when I checked the voltage all 4 batteries were exactly the same. Charged them up and put them into my solar system for my cottage. Really happy with them so far.
