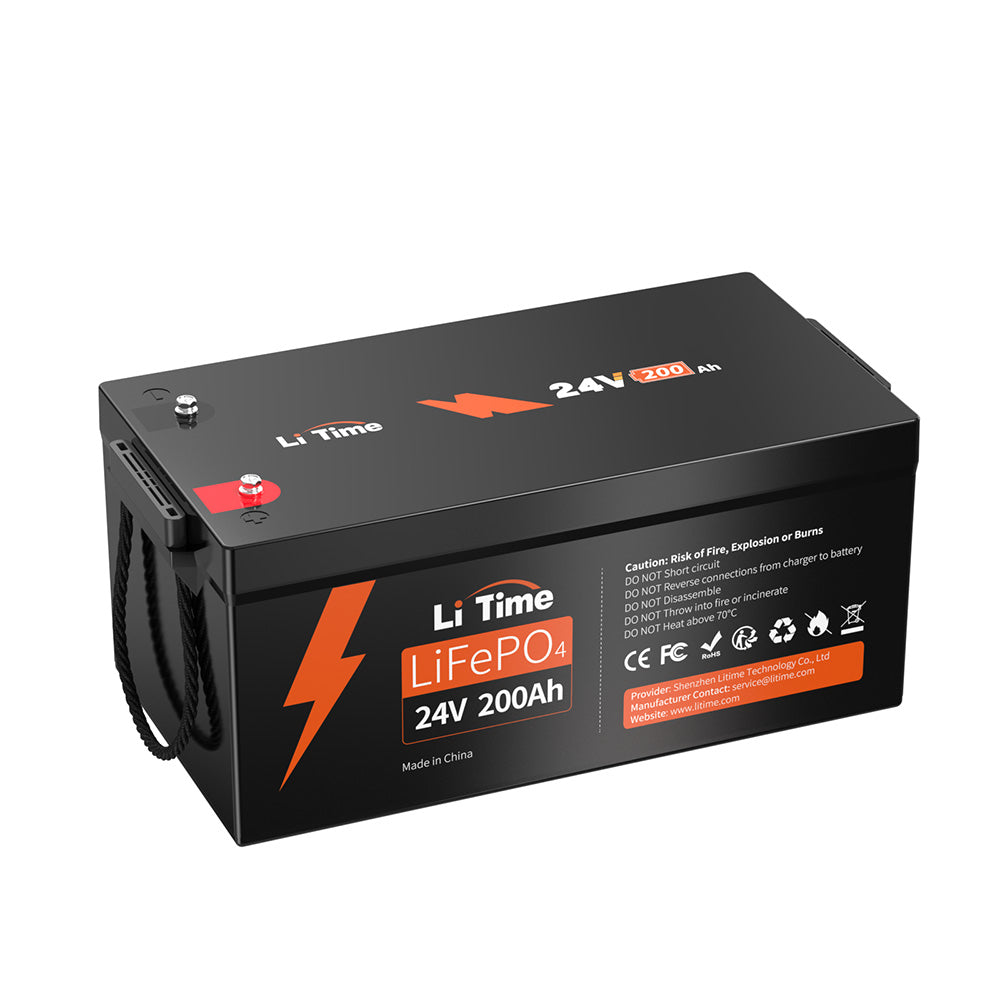

LiTime 24V 200Ah Lithium Battery

Q: Can I charge LiTime LiFePO4 lithium batteries with solar panels?

To charge 24V battery, it is recommended to use 29.2V battery charger.The Recommended Charging Voltage: 28.4V - 29.2V.The Recommended Charging Current: ① 40A (0.2C): the battery will be fully charged in around 5 hrs to 100% capacity; ② 100A (0.5C): the battery will be fully charged in around 2 hrs to around 97% capacity.Related reading: Can I Charge LiFePO4 batteries with a Normal Charger?

Q: How many LiTime 24V 200Ah lithium Batteries can I connect at most?

The LiTime 24V batteries support versatile connections, including series, parallel, and series-parallel connection. You can connect up to 2 batteries in series, 4 in parallel, or 8 in the series-parallel connection.

C$1,499.99

C$2,499.99

- 40.00 %

【Safe & Reliable Lithium Battery】 LiTime 24V 200Ah LiFePO4 batteries have exceptional quality since they are assembled by Automotive LiFePO4 Cells with UL certificated, which have a higher energy density, more stable performance, greater power, and excellent 3% self-discharge rate.

【4000-15000 Deep Cycle & 10-Year Lifetime】 24V 200Ah lithium battery can run 4000~15000 cycles, which is more than 10 times Lead Acid with 200~500 cycles. 24V LiFePO4 battery can realize 100% SOC&DOD and has a 10-year service life, three times longer than the Lead Acid’s 3-year.

【1/3 Lightweight & Portable】LiTime LiFePO4 Lithium Battery weighs 85.84lbs, only 1/3 the weight of lead-acid batteries. Plus, the IP65 level waterproof case with two solid handles on both sides, it’s easy to move and lift the battery. Thus, it’s no worry to install the lithium battery indoors or outdoors.

【5120Wh Higher Energy】 24V 200Ah lithium battery equals two 24V 100Ah lithium batteries. It is allowed to be expanded to a max 2S4P as 51.2V 800Ah battery system with around 41kWh energy. Perfect for which requires higher power or longer battery runtime Applications.

【24 hours Customer Service】 LiTime Group is committed to providing you with satisfactory service. We will arrange the shipment from local warehouses in Canada. Professional technical support and one-to-one customer service with quick feedback within 24 hours. If you have any questions during your use of the battery, please feel free to contact us.

Choose Products

Comparison

1 Pack 24V 200Ah

C$1,499.99 C$2,499.99

Hurry up and buy, only 11 Left

2 Pack (C$1454.99 /Each)

C$2,909.98 C$4,999.98

4 Pack(C$1439.99 /Each)

C$5,759.96 C$10,399.96

Quantity:

C$1,499.99

C$2,499.99

- 40.00 %

5 Years Warranty

Backed up by techical support within 24hrs

Free Shipping

Free standard shipping on all orders

Free Returns

30 Days Hassle Free Returns

24V 200Ah

C$1,499.99

C$2,499.99

[{"alt":null,"id":39925994520872,"position":1,"preview_image":{"aspect_ratio":1.0,"height":1000,"width":1000,"src":"\/\/ca.litime.com\/cdn\/shop\/files\/1-1.jpg?v=1724750084"},"aspect_ratio":1.0,"height":1000,"media_type":"image","src":"\/\/ca.litime.com\/cdn\/shop\/files\/1-1.jpg?v=1724750084","width":1000},{"alt":null,"id":39925994553640,"position":2,"preview_image":{"aspect_ratio":1.0,"height":1000,"width":1000,"src":"\/\/ca.litime.com\/cdn\/shop\/files\/2_c6be4395-70b0-4b26-a2ef-b842ffffe8ba.jpg?v=1724750084"},"aspect_ratio":1.0,"height":1000,"media_type":"image","src":"\/\/ca.litime.com\/cdn\/shop\/files\/2_c6be4395-70b0-4b26-a2ef-b842ffffe8ba.jpg?v=1724750084","width":1000},{"alt":null,"id":39925994586408,"position":3,"preview_image":{"aspect_ratio":1.0,"height":1000,"width":1000,"src":"\/\/ca.litime.com\/cdn\/shop\/files\/3_7159b4c0-3a5b-467d-b558-a13121c043c2.jpg?v=1724750085"},"aspect_ratio":1.0,"height":1000,"media_type":"image","src":"\/\/ca.litime.com\/cdn\/shop\/files\/3_7159b4c0-3a5b-467d-b558-a13121c043c2.jpg?v=1724750085","width":1000},{"alt":null,"id":39925994619176,"position":4,"preview_image":{"aspect_ratio":1.0,"height":1000,"width":1000,"src":"\/\/ca.litime.com\/cdn\/shop\/files\/4_bce3f9be-b2d5-4da8-a521-dbe10babd85f.jpg?v=1724750084"},"aspect_ratio":1.0,"height":1000,"media_type":"image","src":"\/\/ca.litime.com\/cdn\/shop\/files\/4_bce3f9be-b2d5-4da8-a521-dbe10babd85f.jpg?v=1724750084","width":1000},{"alt":null,"id":39925994651944,"position":5,"preview_image":{"aspect_ratio":1.0,"height":1000,"width":1000,"src":"\/\/ca.litime.com\/cdn\/shop\/files\/5_a9d1538e-74a2-401e-ac4e-6c923d1465d7.jpg?v=1724750084"},"aspect_ratio":1.0,"height":1000,"media_type":"image","src":"\/\/ca.litime.com\/cdn\/shop\/files\/5_a9d1538e-74a2-401e-ac4e-6c923d1465d7.jpg?v=1724750084","width":1000},{"alt":null,"id":39925994684712,"position":6,"preview_image":{"aspect_ratio":1.0,"height":1000,"width":1000,"src":"\/\/ca.litime.com\/cdn\/shop\/files\/6_bf1a8e3a-c25d-4cd5-8bbf-989abb690ff4.jpg?v=1724750084"},"aspect_ratio":1.0,"height":1000,"media_type":"image","src":"\/\/ca.litime.com\/cdn\/shop\/files\/6_bf1a8e3a-c25d-4cd5-8bbf-989abb690ff4.jpg?v=1724750084","width":1000},{"alt":null,"id":39925994783016,"position":7,"preview_image":{"aspect_ratio":1.0,"height":1000,"width":1000,"src":"\/\/ca.litime.com\/cdn\/shop\/files\/9_868e3267-23d3-4d81-9aaa-5c9ee137262a.jpg?v=1724750084"},"aspect_ratio":1.0,"height":1000,"media_type":"image","src":"\/\/ca.litime.com\/cdn\/shop\/files\/9_868e3267-23d3-4d81-9aaa-5c9ee137262a.jpg?v=1724750084","width":1000},{"alt":null,"id":39925994717480,"position":8,"preview_image":{"aspect_ratio":1.0,"height":1000,"width":1000,"src":"\/\/ca.litime.com\/cdn\/shop\/files\/7_79e6bbce-f210-4928-83fb-645298bfa67b.jpg?v=1724750084"},"aspect_ratio":1.0,"height":1000,"media_type":"image","src":"\/\/ca.litime.com\/cdn\/shop\/files\/7_79e6bbce-f210-4928-83fb-645298bfa67b.jpg?v=1724750084","width":1000},{"alt":null,"id":39925994750248,"position":9,"preview_image":{"aspect_ratio":1.0,"height":1000,"width":1000,"src":"\/\/ca.litime.com\/cdn\/shop\/files\/8_165db91e-5bfb-4be0-aaa1-19649b26cbe0.jpg?v=1724750084"},"aspect_ratio":1.0,"height":1000,"media_type":"image","src":"\/\/ca.litime.com\/cdn\/shop\/files\/8_165db91e-5bfb-4be0-aaa1-19649b26cbe0.jpg?v=1724750084","width":1000}]

FEATURES

SPECS

FAQ

REVIEWS

Safe & Reliable Lithium Battery

LiTime 24V 200Ah LiFePO4 batteries have exceptional quality for their EV Grade-A LiFePO4 Cells with UL1973, FCC, CE, RoHS and UN38.3 certificated, which have a higher energy density, less size and weight, greater power, and excellent stable performance.

LiTime 24V 200Ah LiFePO4 Lithium Battery

Super Longevity Offers the Best Value

LiTime 24V 200Ah lithium battery can run 4000~15000 cycles, which is over 8 times Lead Acid batteries. This battery can reach 100% SOC&DOD and has an over 10-year lifespan, three times longer than the Lead Acid batteries. LiTime lithium batteries offer you the nicest price and cost-effectiveness.

LiTime 24V 200Ah LiFePO4 Lithium Battery superior bms

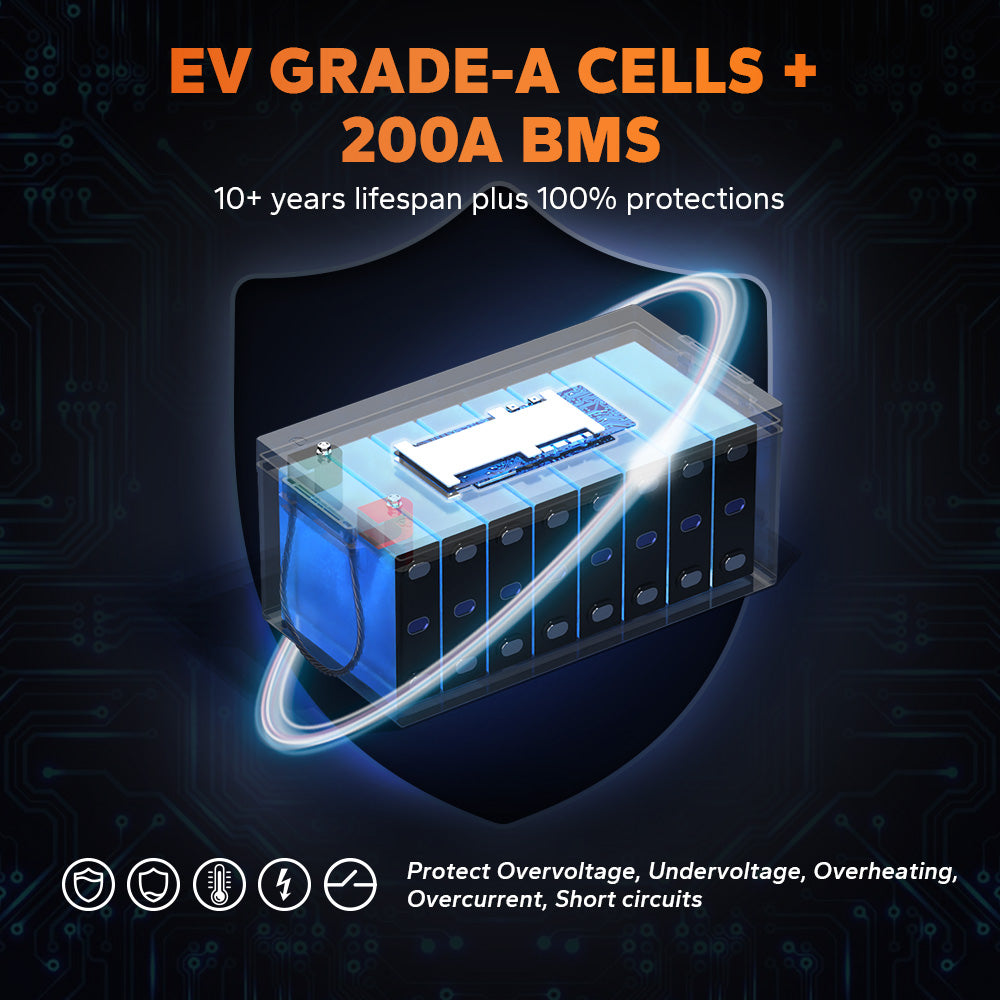

200A BMS Ensures the Safety & Longevity of batteries

The built-in 200A BMS protects the LiFePO4 battery from potential risks for long-term use. This reliable BMS has protections against over-voltage, under-voltage, overheating, over-current, and short circuit. 3% ultra-low self-discharge rate per month makes it longer-lasting. Feel comfort and peace of mind when using it anytime and anywhere.

One-step energy juice facilitates your life.

LiTime 24V 200Ah LiFePO4 Lithium Battery weighs 83 lbs, only 1/3 the weight of two 12V 200Ah lead-acid batteries. Another advantage you can't ignore is its simple wiring connection. You don't need to connect 4* 12V 100Ah batteries in series/parallel to get a 24V 200Ah battery bank.

LiTime 24V 200Ah LiFePO4 Lithium Battery parallel and series

Power Your World with LiTime

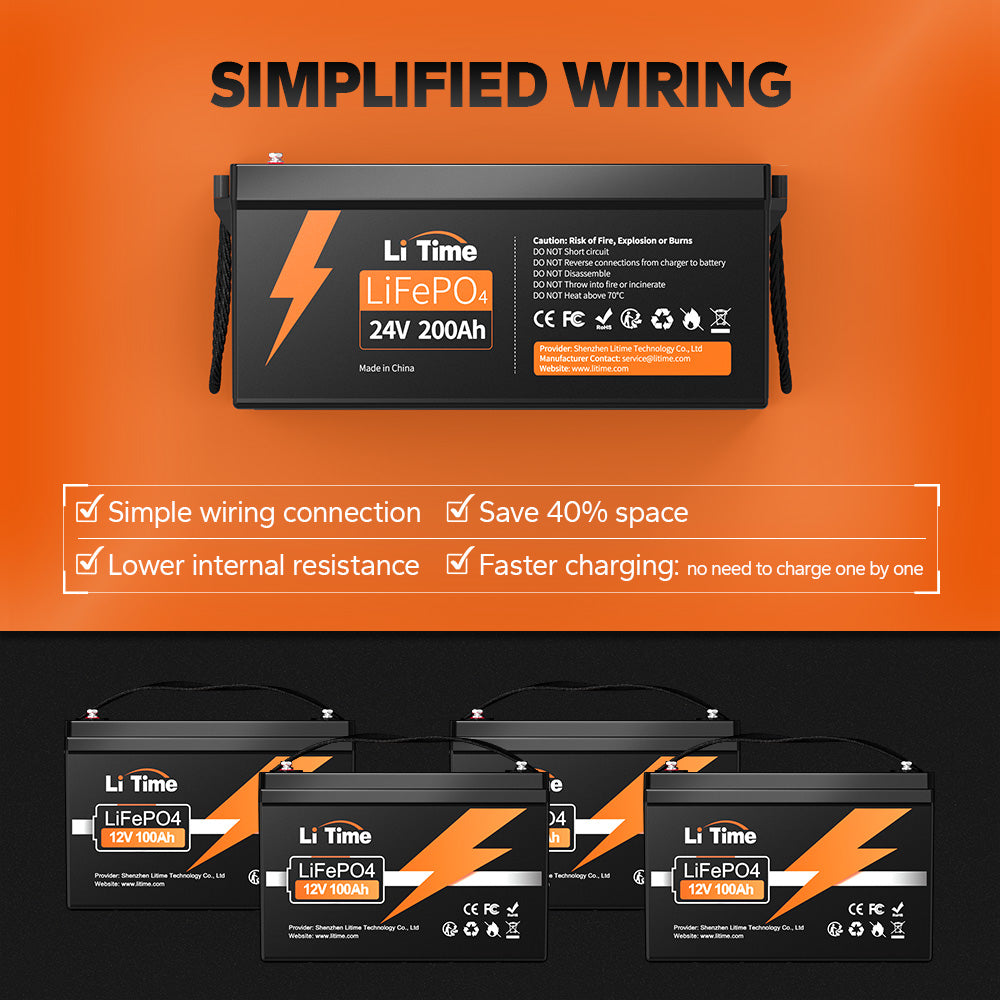

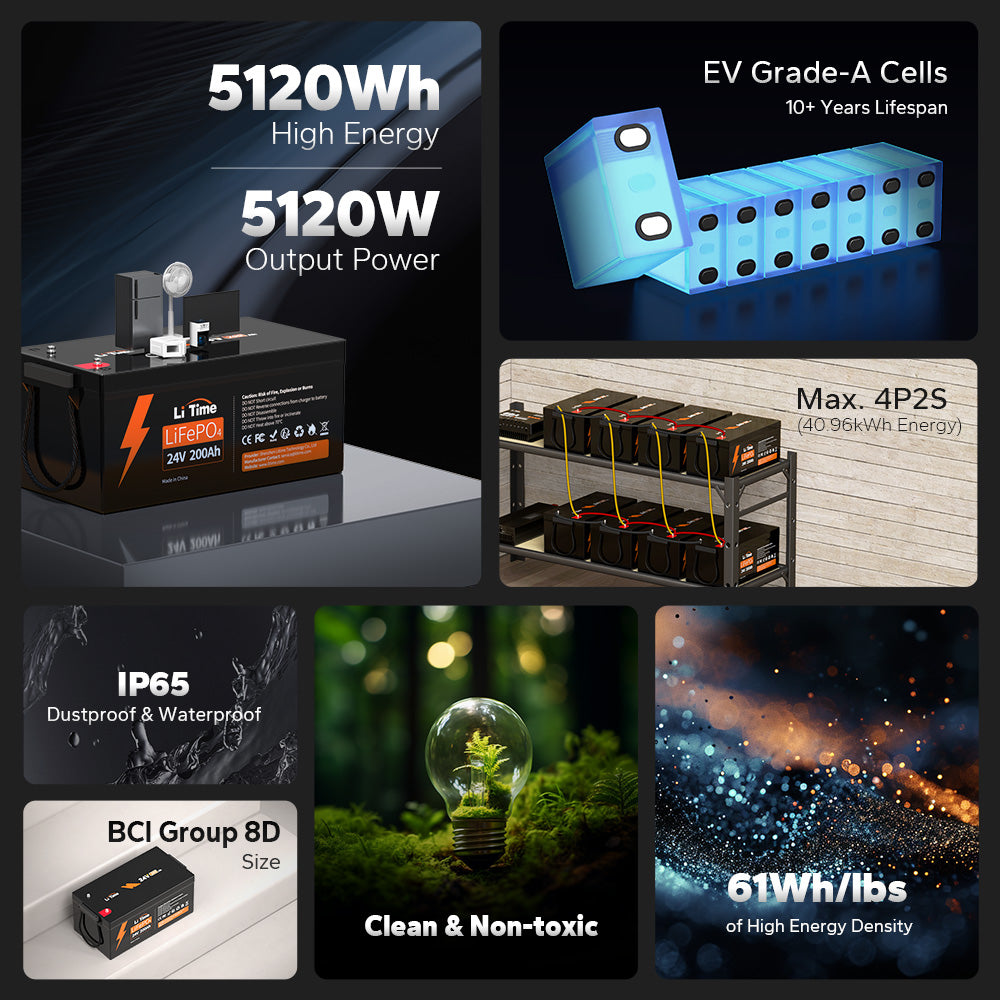

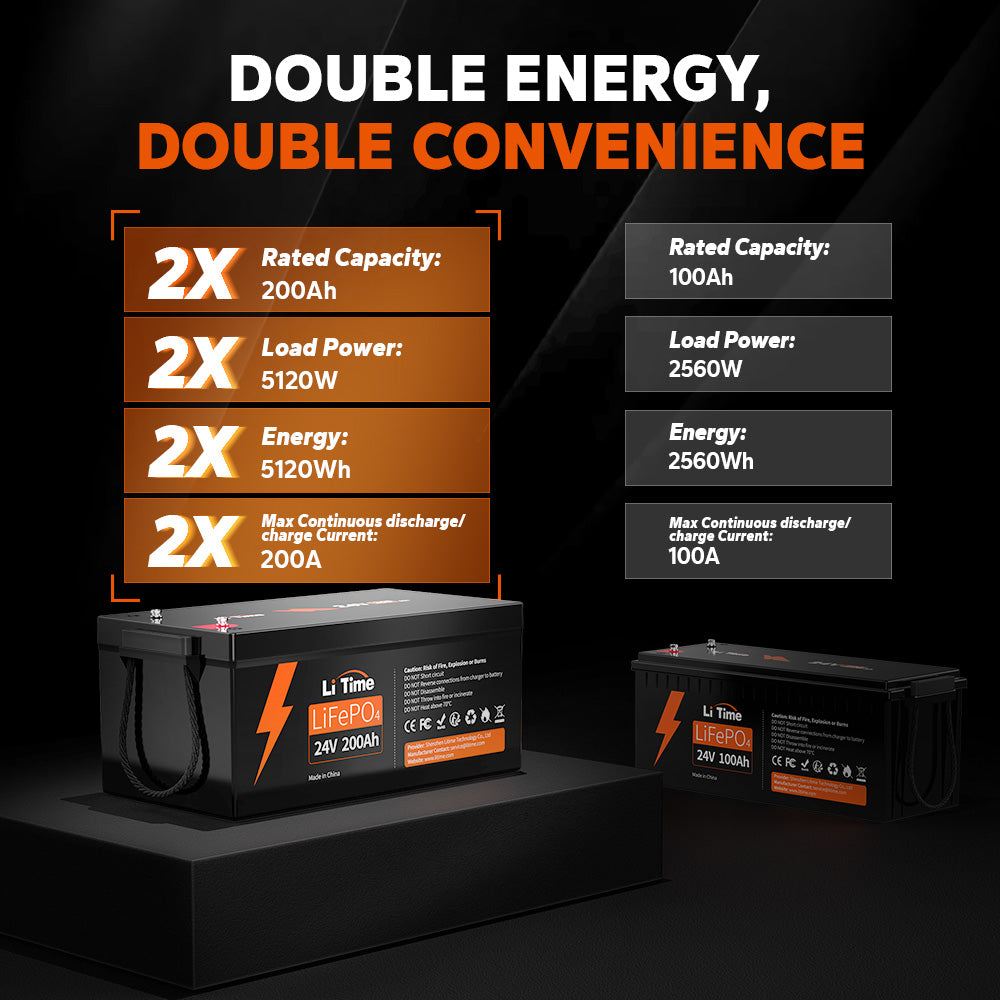

With 5120Wh higher energy, a 24V 200Ah lithium battery equals two 24V 100Ah lithium batteries. Perfect for which requires higher power and longer battery runtime applications. Our 24V 200Ah lithium batteries can power your trips, sudden electricity shortfalls, off-grid and boat-fishing.

LiTime 24V 200Ah LiFePO4 Lithium Battery deep cycles

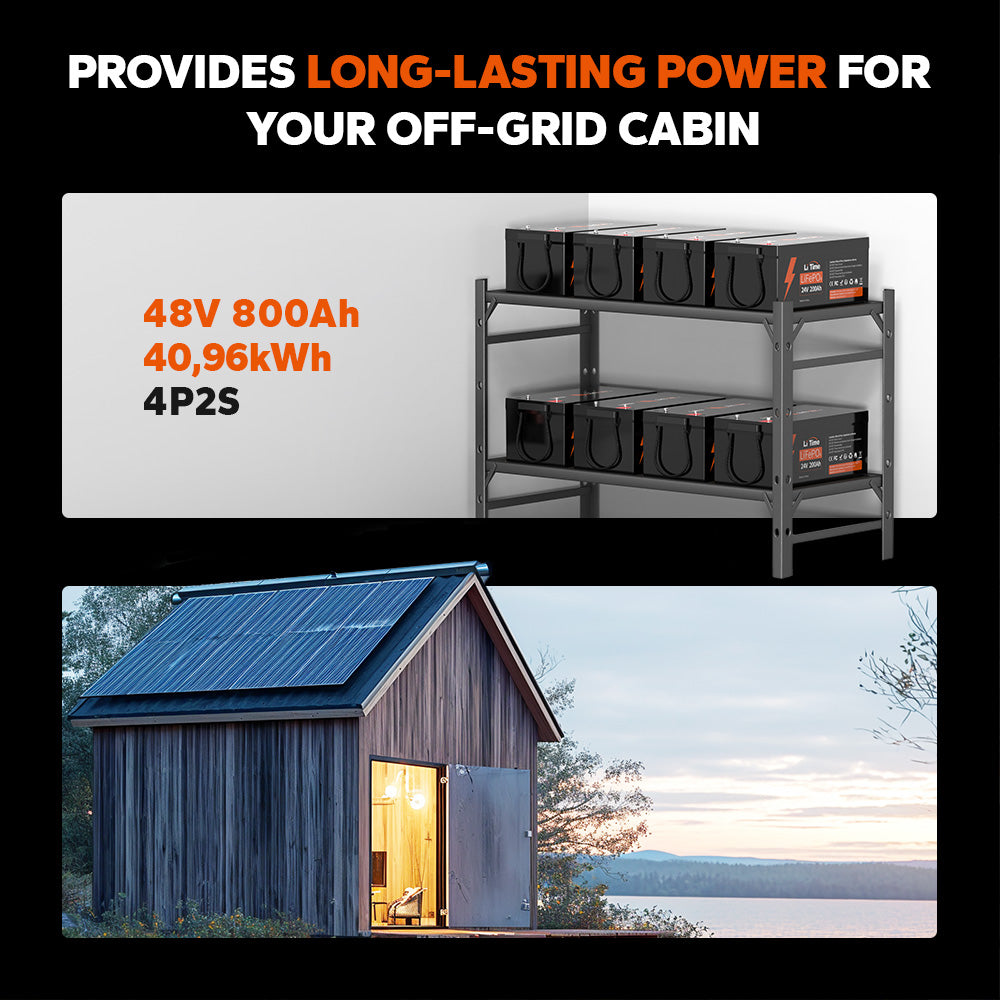

51.2V 800Ah Battery Banck

It is allowed to be expanded to a Max 4P2S as a 51.2V 800Ah battery system with around 41kWh energy to meet all your needs.

Your Convenient Juice Station

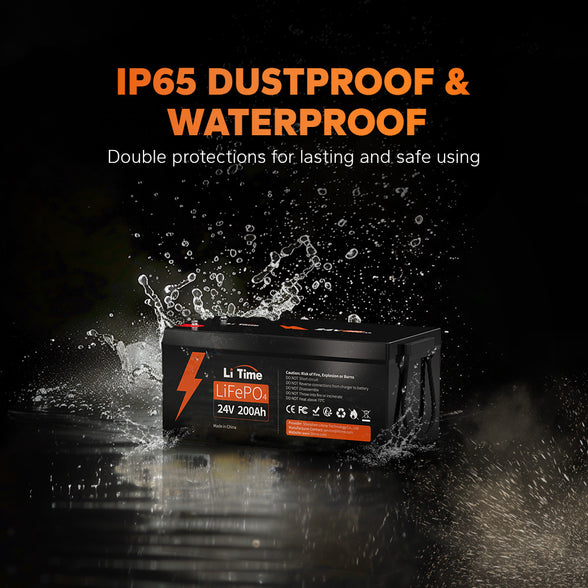

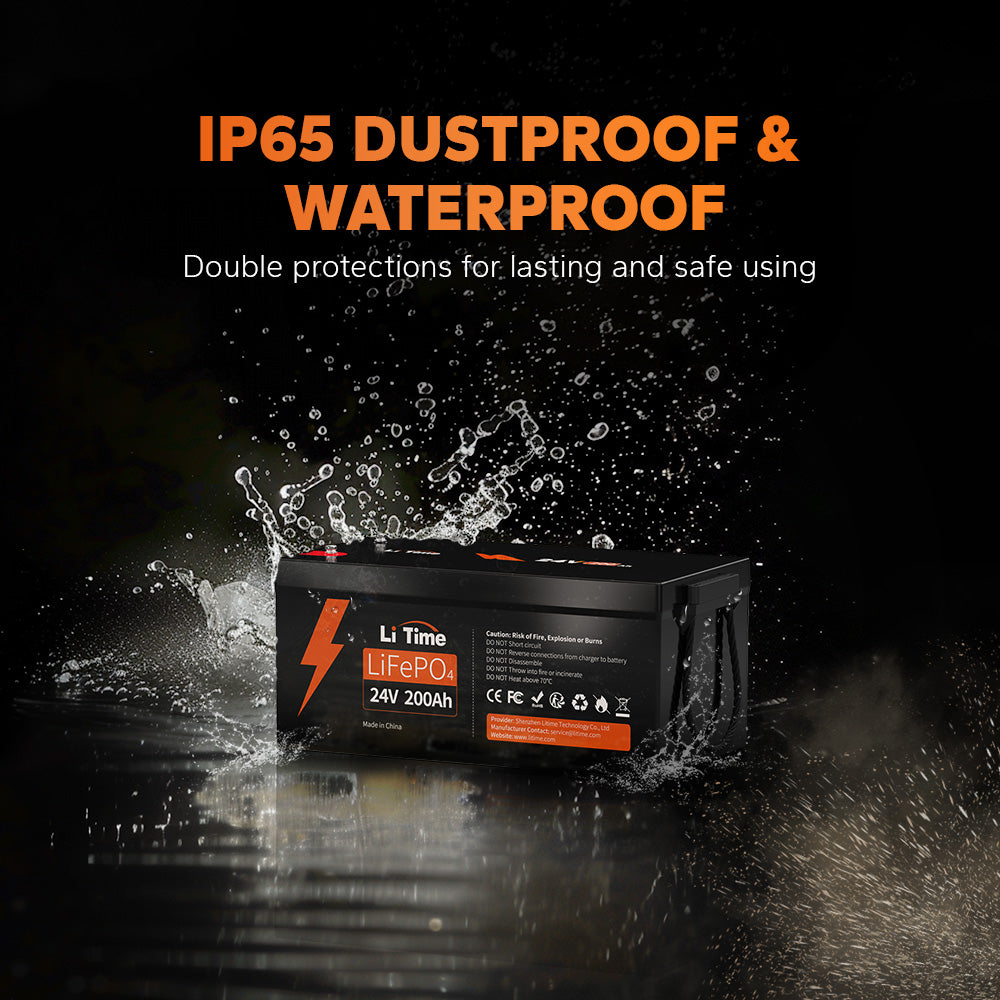

The durable yet powerful LiTime battery provides reliable power for Marine/Off-grid/Solar Systems. Plus, the IP65 level waterproof case with two solid handles on both sides, making you feel comfortable when using it indoors or outdoors

4 Fast Flexible Charging

LiTime battery has faster-charging efficiency than lead-acid and supports various quick charge options for continuous high performance. Without memory effect, you can charge the battery via a LiFePO4 charger, solar panel, alternator and generator partially or fully at anytime.

Excellent Service

BATTERY

Cell Type：

LiFePO4 Prismatic

Warranty：

5 Years

Cycle Life：

4000 cycles at 100% DOD, 6000 cycles at 80% DOD, 15,000 cycles at 60% DOD

Nominal Voltage：

25.6V

Rated Capacity：

200Ah

Energy：

5120Wh

Max. Expansion (Parallel & Series)：

4P2S

Internal Resistance：

≤40mΩ

Certifications：

UL, FCC, CE, RoHS, UN38.3

BMS

BMS：

200A

Max. Continuous Output Power：

5120W

Max. Continuous Charge Current：

200A

Max. Continuous Discharge Current：

200A

Max. Discharge Current 5 Seconds：

400A

CHARGE

Charge Method：

CC/CV

Charge Voltage：

28.8V ± 0.4V

Recommend Charge Current：

40A (0.2C)

TEMPERATURE

Charge Temperature：

0℃ to 50℃ / 32℉ to 122℉

Discharge Temperature：

-20℃ to 60℃ / -4℉ to 140℉

Storage Temperature：

-10℃ to 50℃ / 14℉ to 122℉

Low-Temperature Protection：

N/A

Low-Temperature Charging Protection Auto Recovery：

N/A

SELF-HEATING

Heating Temperature：

N/A

Approx. Heating Time：

N/A

OTHERS

Terminals：

M8 bolts

Weight Approx.：

80.25lbs

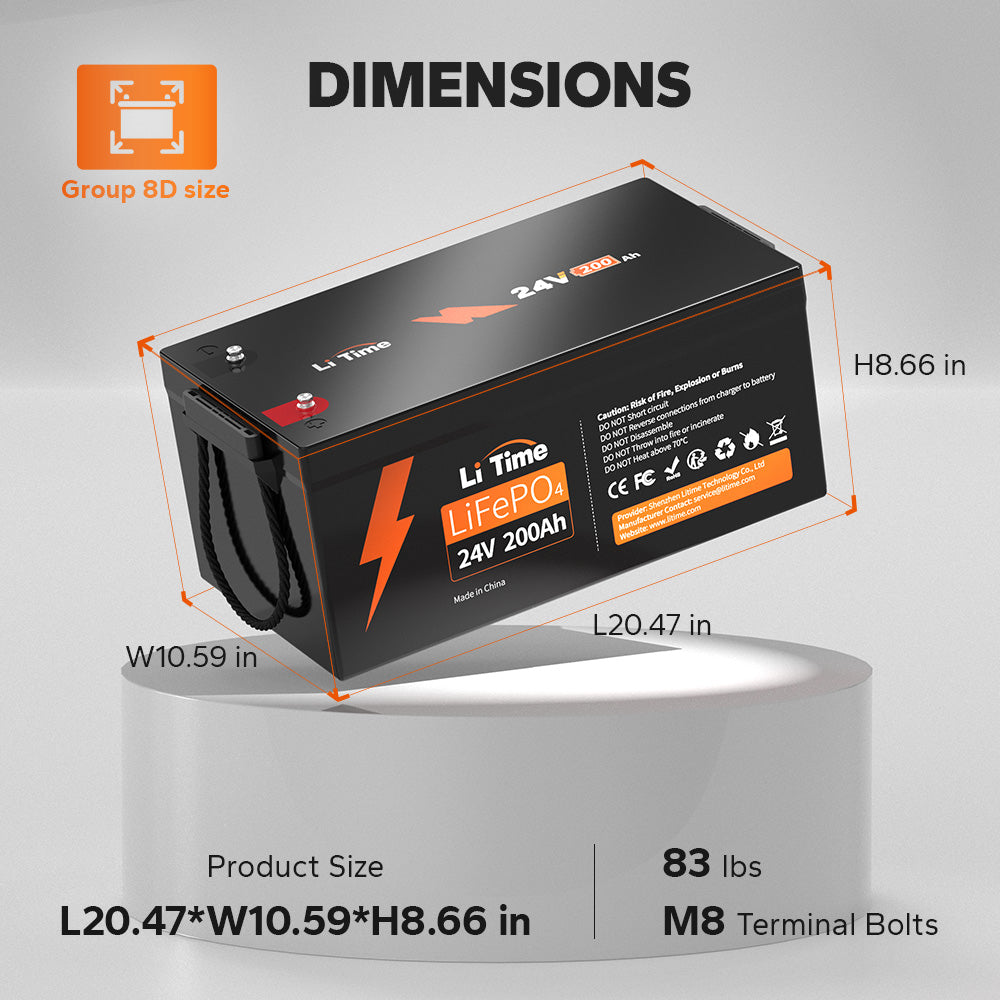

Size：

L20.47*W10.59*H8.66 inch (group 8D size)

Housing Material：

ABS

Protection Class：

IP65

Are LiTime LiFePO4 batteries safe?

Yes. LiFePO4 is an inherently safe chemistry and the most stable lithium-type battery on the market. LiTime lithium cells are UL certified for the highest safety and sustainability standards. All LiTime LiFePO4 batteries come with an internal Battery Management System which protects against under-voltage during discharge, over-voltage during charge, over-current during discharge, over-temperature during charge and discharge, and short-circuit protection – protects battery cells from damage. Additionally, LiTime LiFePO4 Lithium batteries have been tested to be free from the risk of fire, and electric shock in harsh environments.

Can I use LiTime LiFePO4 Lithium batteries as starting batteries?

No. LiTime LiFePO4 lithium batteries are not intended to be used as starting batteries but energy storage, please do not use them to start any devices. Read on deep cycle vs starting batteries to learn more.

Can I charge LiTime LiFePO4 lithium batteries with solar panels?

To charge 24V battery, it is recommended to use 29.2V battery charger.

The Recommended Charging Voltage: 28.4V - 29.2V.

The Recommended Charging Current: ① 40A (0.2C): the battery will be fully charged in around 5 hrs to 100% capacity; ② 100A (0.5C): the battery will be fully charged in around 2 hrs to around 97% capacity.

What does a group 8D battery mean?

The group 8D battery is one of the largest batteries available to use. The group 8D battery dimension is about L21*W11*H10 inch. Read on Guide to Group 8 Battery to learn more.

Is this 8D battery a deep cycle battery?

LiTime 24V 200Ah LiFePO4 battery is a 8d deep cycle battery, widely used in RVs, marine, home storage and off-grid.

Can I charge LiTime LiFePO4 lithium batteries in cold weather (under freezing temperatures)?

LiFePO4 batteries can safely charge between 32°F to 113°F (0°C to 45°C). LiTime 12V 100Ah TM & 230Ah LiFePO4 batteries include low-temperature charging protection which will automatically cut the battery charging off when the cell temperature is lower than 32℉, thus preventing the battery cells from damage when charging under the freezing point.

How do I store LiTime LiFePO4 lithium batteries?

It is recommended to store LiTime LiFePO4 batteries at 50% state of charge (SOC). If the batteries are stored for long periods, cycle the batteries at least every 6 months. Recommended storage environment: 10℃～35℃ (50℉～95℉), 45%RH～75％RH

How many LiTime 24V 200Ah lithium Batteries can I connect at most?

The LiTime 24V batteries support versatile connections, including series, parallel, and series-parallel connection. You can connect up to 2 batteries in series, 4 in parallel, or 8 in the series-parallel connection.

Can I pair a Bluetooth Module for this battery to monitor the battery status on the phone?

No. This battery is not compatible with the Bluetooth module. You can use a 500A Battery Monitor With Shunt to keep track of battery status.
