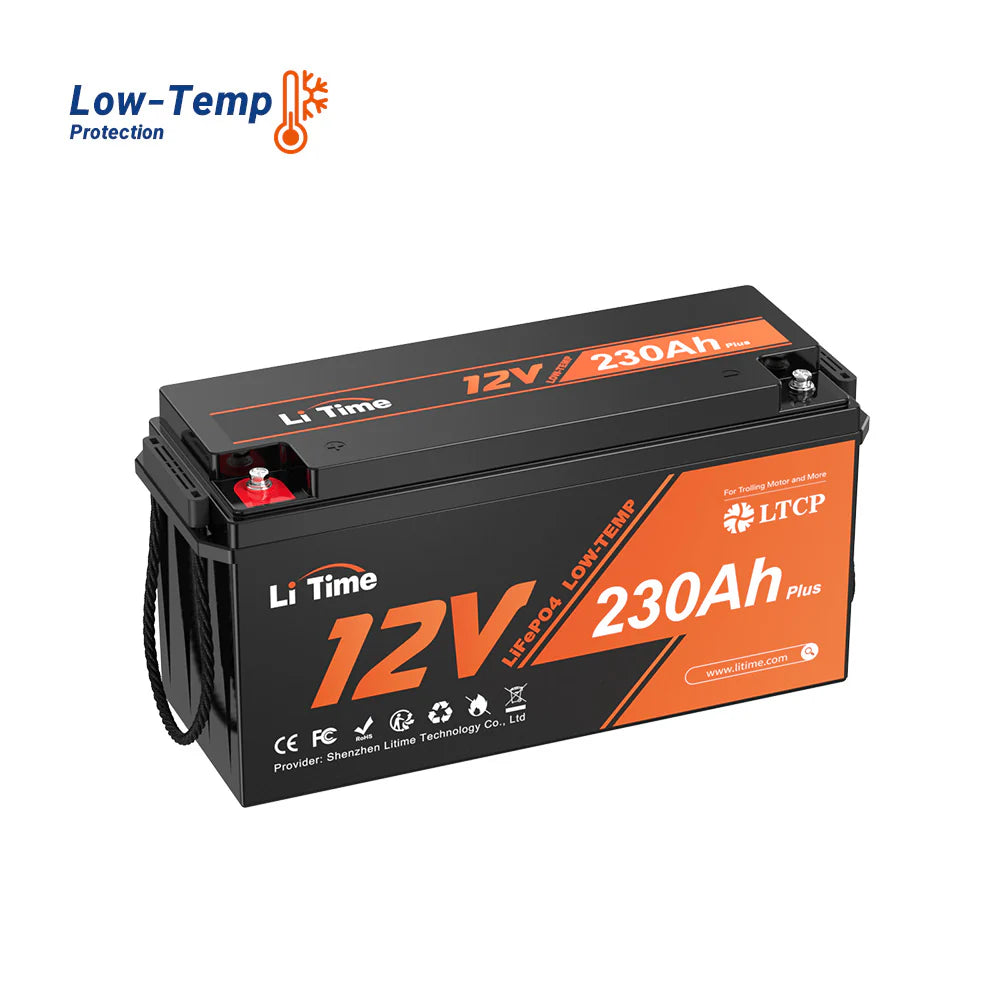

LiTime 12V 230Ah Plus Deep Cycle Battery With Low-Temp Protection
13 reviews
C$789.99
C$1,349.99
-
41.48 %
Will Prowse "Best Value" 12V LiFePO4 Battery

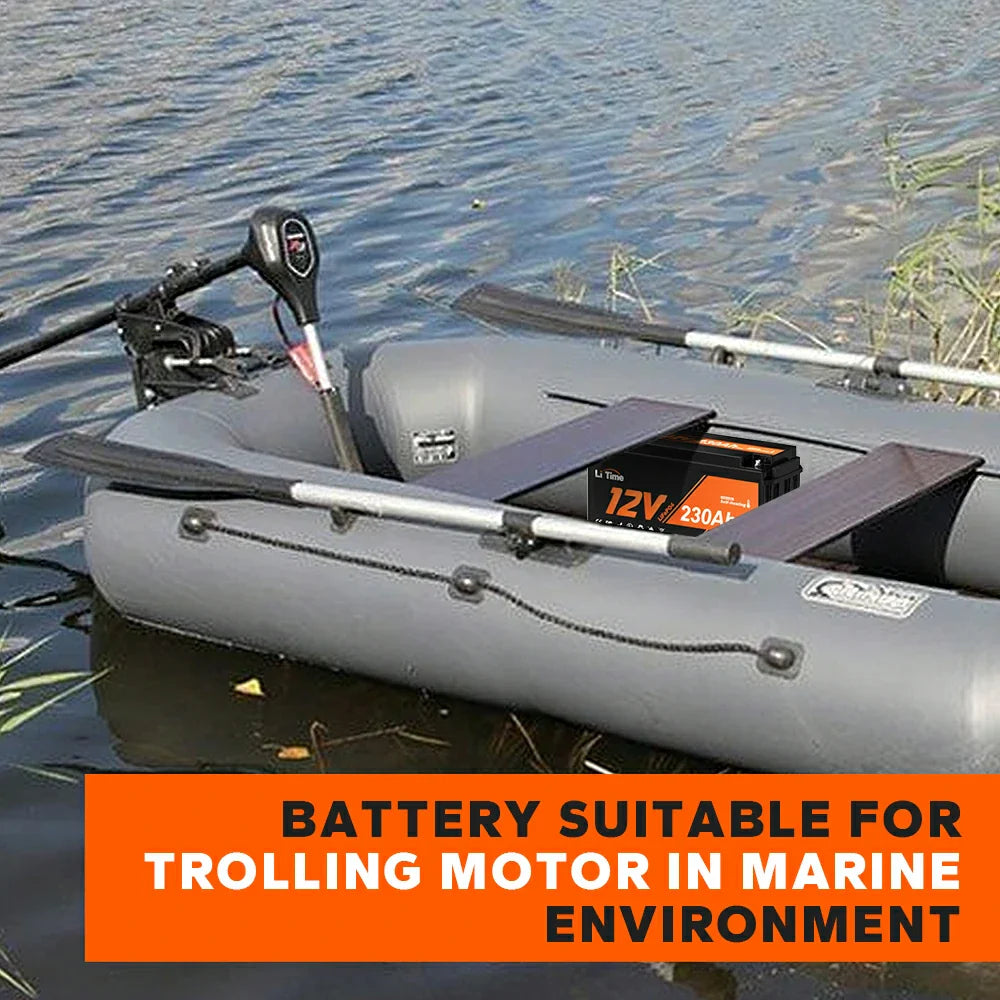

Support 200A Current:heavy-duty batterysuitable for 12-volt trolling motors with 30-70 lbs, marine, RVs, UPS, and backup power.
Low-Temperature Cut-Off Protection: cuts charging when it is below 0°C/32°F, disconnecting loads when it is below -20°C/-4°F, to prevent damages from charging/discharging in the cold weather.
Automatic Overload Protection and Recovery – No User Intervention Required
EV Grade-A LiFePO4 battery cells: 4000+ cycles at 100% DOD, and are green and non-toxic.

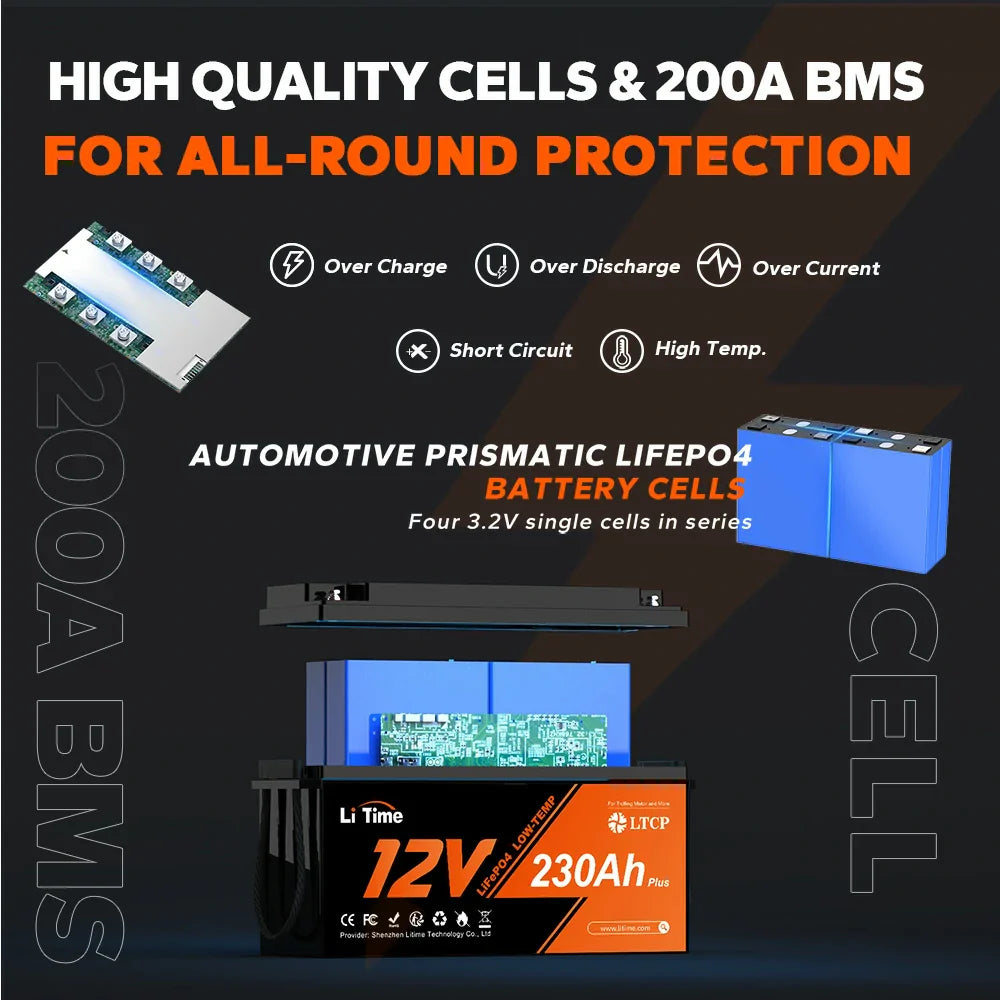

High Safety of 200A BMS: an intelligent 200A BMS board prevents over-charging, over-discharging, over-current, over-temperature and short-circuit protection, ensuring a safer and more reliable battery.
IP65 waterproof: protect your battery from water and dust
6X Cost-effectiveness: $0.21 per deep cycle to save $1.21 per cycle than lead-acid batteries, and no regular maintenance fee.

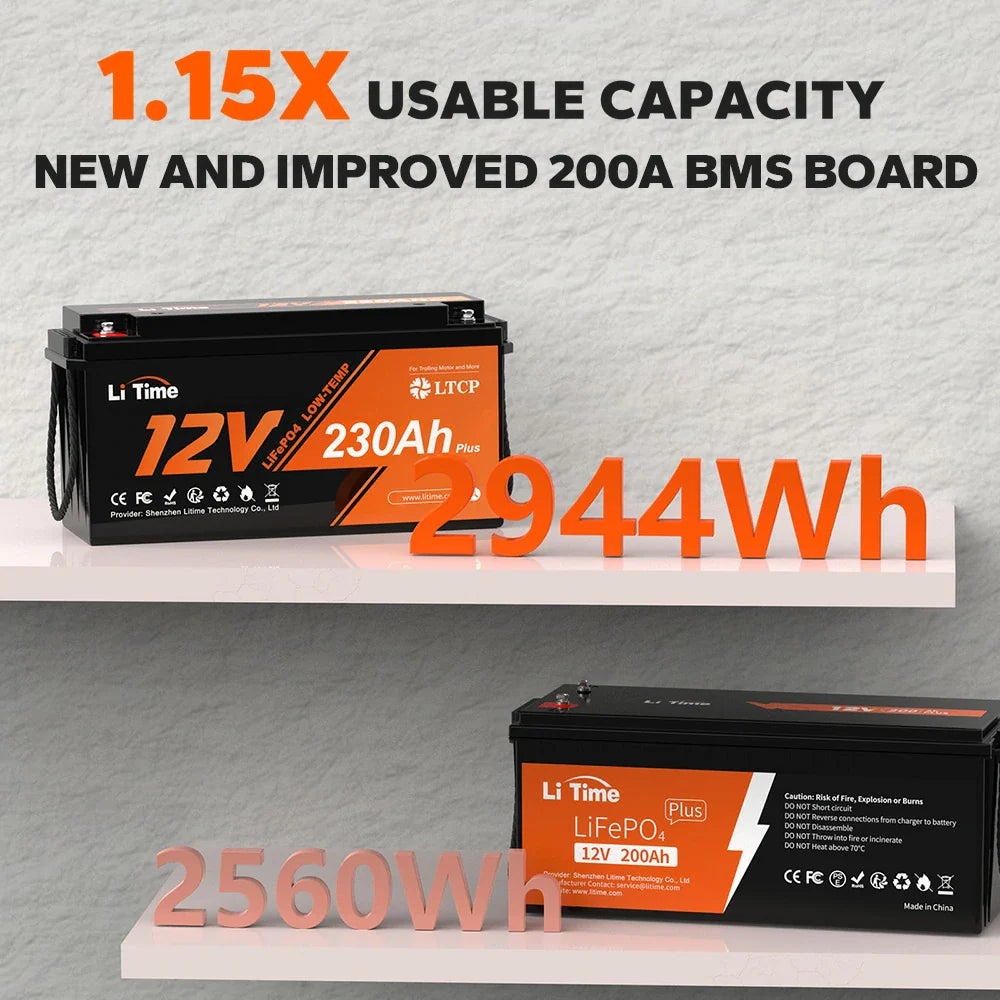

Ultra-long Runtime: a Max 2560W Power & 2944Wh of usable energy, enough to power approx. 3kWh of daily home/off-grid or one-day use of fishing/RV/camping.

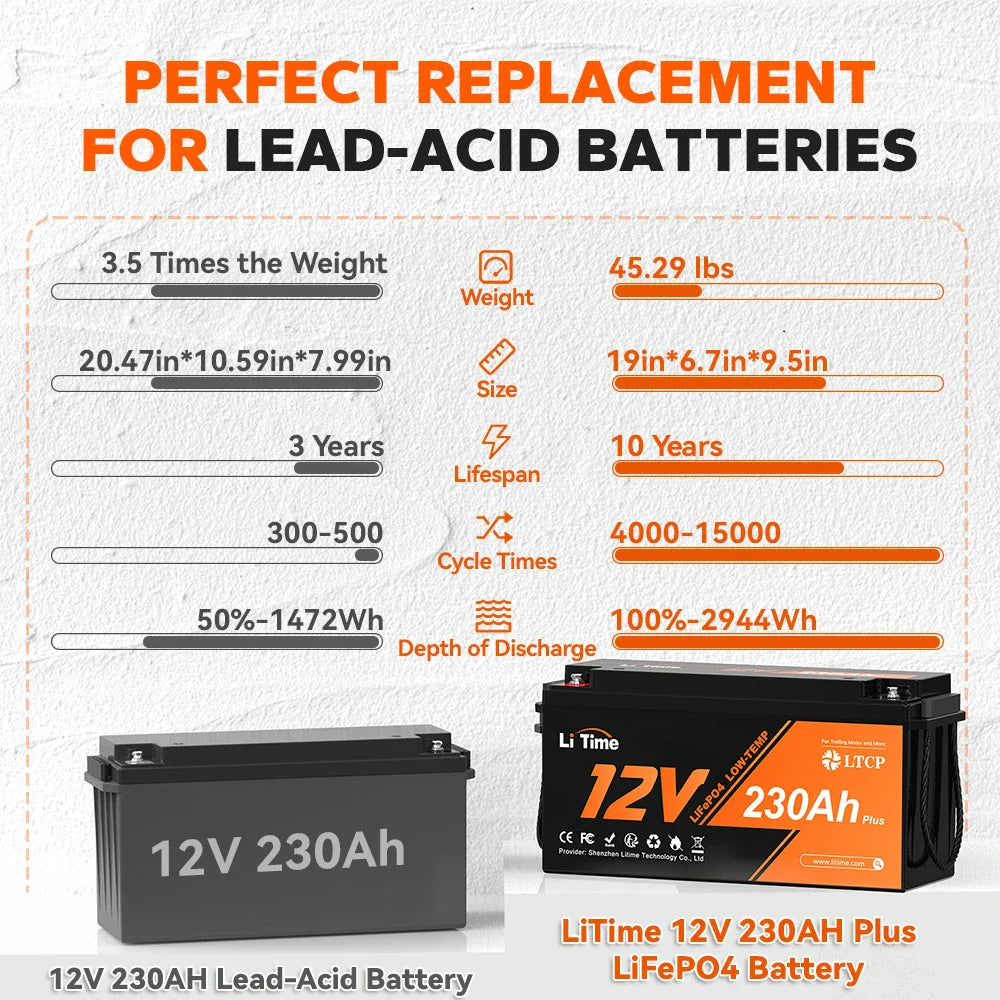

6X Energy Density: 65Wh/lbs, 6X the energy density and 65% lighter than a 12V 200Ah lead-acid battery.
Max 47.104kWh Energy Expansion: Max 4P4S to build a 51.2V 920Ah battery system
Best Service: fast delivery, 24-hour response & 5-year warranty
DO NOT use as Starter Battery If you need a starting battery
ABYC Official Certi.: All LiTime marine batteries meet ABYC standards, ensuring the highest safety for your sailing needs.
View More
Choose Products
Comparison
Quantity:
C$789.99
C$1,349.99
-
41.48 %
5 Years Warranty
Backed up by techical support within 24hrs
Free Shipping
Free standard shipping on all orders
Free Returns
30 Days Hassle Free Returns
12V 230Ah
C$789.99
C$1,349.99
C$789.99
C$1,349.99
12V 230Ah
[{"alt":"LiTime 12V 230Ah Plus Deep Cycle LiFePO4 Battery With Low-Temp Protection","id":39144619049256,"position":1,"preview_image":{"aspect_ratio":1.0,"height":1000,"width":1000,"src":"\/\/ca.litime.com\/cdn\/shop\/files\/8-12V230AhPlusLowTempProtection.webp?v=1725962806"},"aspect_ratio":1.0,"height":1000,"media_type":"image","src":"\/\/ca.litime.com\/cdn\/shop\/files\/8-12V230AhPlusLowTempProtection.webp?v=1725962806","width":1000},{"alt":"LiTime 12V 230Ah Plus Deep Cycle LiFePO4 Battery With Low-Temp Protection","id":39144619442472,"position":2,"preview_image":{"aspect_ratio":1.0,"height":1000,"width":1000,"src":"\/\/ca.litime.com\/cdn\/shop\/files\/LiTime12V230AhPlusLiFePO4BatteryBuilt-in200ABMS_Max2_944WhEnergy_LithiumIronPhosphateBatteryPerfectforSolarsystem_RV_Camping_Boat_HomeEnergyStorage1_1_705dde9e-5aca-4877-9d4d-3109625c.webp?v=1725962806"},"aspect_ratio":1.0,"height":1000,"media_type":"image","src":"\/\/ca.litime.com\/cdn\/shop\/files\/LiTime12V230AhPlusLiFePO4BatteryBuilt-in200ABMS_Max2_944WhEnergy_LithiumIronPhosphateBatteryPerfectforSolarsystem_RV_Camping_Boat_HomeEnergyStorage1_1_705dde9e-5aca-4877-9d4d-3109625c.webp?v=1725962806","width":1000},{"alt":"LiTime 12V 230Ah Plus Deep Cycle LiFePO4 Battery With Low-Temp Protection","id":39144619311400,"position":3,"preview_image":{"aspect_ratio":1.0,"height":1000,"width":1000,"src":"\/\/ca.litime.com\/cdn\/shop\/files\/LiTime12V230AhPlusLiFePO4BatteryBuilt-in200ABMS_Max2_944WhEnergy_LithiumIronPhosphateBatteryPerfectforSolarsystem_RV_Camping_Boat_HomeEnergyStorage1_1_3-2.webp?v=1725962806"},"aspect_ratio":1.0,"height":1000,"media_type":"image","src":"\/\/ca.litime.com\/cdn\/shop\/files\/LiTime12V230AhPlusLiFePO4BatteryBuilt-in200ABMS_Max2_944WhEnergy_LithiumIronPhosphateBatteryPerfectforSolarsystem_RV_Camping_Boat_HomeEnergyStorage1_1_3-2.webp?v=1725962806","width":1000},{"alt":"LiTime 12V 230Ah Plus Deep Cycle LiFePO4 Battery With Low-Temp Protection","id":39144619213096,"position":4,"preview_image":{"aspect_ratio":1.0,"height":1000,"width":1000,"src":"\/\/ca.litime.com\/cdn\/shop\/files\/LiTime12V230AhPlusLiFePO4BatteryBuilt-in200ABMS_Max2_944WhEnergy_LithiumIronPhosphateBatteryPerfectforSolarsystem_RV_Camping_Boat_HomeEnergyStorage1_1_2.webp?v=1725962806"},"aspect_ratio":1.0,"height":1000,"media_type":"image","src":"\/\/ca.litime.com\/cdn\/shop\/files\/LiTime12V230AhPlusLiFePO4BatteryBuilt-in200ABMS_Max2_944WhEnergy_LithiumIronPhosphateBatteryPerfectforSolarsystem_RV_Camping_Boat_HomeEnergyStorage1_1_2.webp?v=1725962806","width":1000},{"alt":"LiTime 12V 230Ah Plus Deep Cycle LiFePO4 Battery With Low-Temp Protection","id":39144619245864,"position":5,"preview_image":{"aspect_ratio":1.0,"height":1000,"width":1000,"src":"\/\/ca.litime.com\/cdn\/shop\/files\/LiTime12V230AhPlusLiFePO4BatteryBuilt-in200ABMS_Max2_944WhEnergy_LithiumIronPhosphateBatteryPerfectforSolarsystem_RV_Camping_Boat_HomeEnergyStorage1_1_2-1.webp?v=1725962806"},"aspect_ratio":1.0,"height":1000,"media_type":"image","src":"\/\/ca.litime.com\/cdn\/shop\/files\/LiTime12V230AhPlusLiFePO4BatteryBuilt-in200ABMS_Max2_944WhEnergy_LithiumIronPhosphateBatteryPerfectforSolarsystem_RV_Camping_Boat_HomeEnergyStorage1_1_2-1.webp?v=1725962806","width":1000},{"alt":"LiTime 12V 230Ah Plus Deep Cycle LiFePO4 Battery With Low-Temp Protection","id":39144619278632,"position":6,"preview_image":{"aspect_ratio":1.0,"height":1000,"width":1000,"src":"\/\/ca.litime.com\/cdn\/shop\/files\/LiTime12V230AhPlusLiFePO4BatteryBuilt-in200ABMS_Max2_944WhEnergy_LithiumIronPhosphateBatteryPerfectforSolarsystem_RV_Camping_Boat_HomeEnergyStorage1_1_3-1.webp?v=1725962806"},"aspect_ratio":1.0,"height":1000,"media_type":"image","src":"\/\/ca.litime.com\/cdn\/shop\/files\/LiTime12V230AhPlusLiFePO4BatteryBuilt-in200ABMS_Max2_944WhEnergy_LithiumIronPhosphateBatteryPerfectforSolarsystem_RV_Camping_Boat_HomeEnergyStorage1_1_3-1.webp?v=1725962806","width":1000},{"alt":"LiTime 12V 230Ah Plus Deep Cycle LiFePO4 Battery With Low-Temp Protection","id":39144619344168,"position":7,"preview_image":{"aspect_ratio":1.0,"height":1000,"width":1000,"src":"\/\/ca.litime.com\/cdn\/shop\/files\/LiTime12V230AhPlusLiFePO4BatteryBuilt-in200ABMS_Max2_944WhEnergy_LithiumIronPhosphateBatteryPerfectforSolarsystem_RV_Camping_Boat_HomeEnergyStorage1_1_3-3.webp?v=1725962806"},"aspect_ratio":1.0,"height":1000,"media_type":"image","src":"\/\/ca.litime.com\/cdn\/shop\/files\/LiTime12V230AhPlusLiFePO4BatteryBuilt-in200ABMS_Max2_944WhEnergy_LithiumIronPhosphateBatteryPerfectforSolarsystem_RV_Camping_Boat_HomeEnergyStorage1_1_3-3.webp?v=1725962806","width":1000},{"alt":"LiTime 12V 230Ah Plus Deep Cycle LiFePO4 Battery With Low-Temp Protection","id":39144619180328,"position":8,"preview_image":{"aspect_ratio":1.0,"height":1000,"width":1000,"src":"\/\/ca.litime.com\/cdn\/shop\/files\/12V230PLUSLOW-TEMP.webp?v=1725962806"},"aspect_ratio":1.0,"height":1000,"media_type":"image","src":"\/\/ca.litime.com\/cdn\/shop\/files\/12V230PLUSLOW-TEMP.webp?v=1725962806","width":1000},{"alt":"LiTime 12V 230Ah Plus Deep Cycle LiFePO4 Battery With Low-Temp Protection","id":39144619376936,"position":9,"preview_image":{"aspect_ratio":1.0,"height":1000,"width":1000,"src":"\/\/ca.litime.com\/cdn\/shop\/files\/LiTime12V230AhPlusLiFePO4BatteryBuilt-in200ABMS_Max2_944WhEnergy_LithiumIronPhosphateBatteryPerfectforSolarsystem_RV_Camping_Boat_HomeEnergyStorage1_1_4-1.webp?v=1717127107"},"aspect_ratio":1.0,"height":1000,"media_type":"image","src":"\/\/ca.litime.com\/cdn\/shop\/files\/LiTime12V230AhPlusLiFePO4BatteryBuilt-in200ABMS_Max2_944WhEnergy_LithiumIronPhosphateBatteryPerfectforSolarsystem_RV_Camping_Boat_HomeEnergyStorage1_1_4-1.webp?v=1717127107","width":1000},{"alt":"LiTime 12V 230Ah Plus Deep Cycle LiFePO4 Battery With Low-Temp Protection","id":39144619409704,"position":10,"preview_image":{"aspect_ratio":1.0,"height":1000,"width":1000,"src":"\/\/ca.litime.com\/cdn\/shop\/files\/LiTime12V230AhPlusLiFePO4BatteryBuilt-in200ABMS_Max2_944WhEnergy_LithiumIronPhosphateBatteryPerfectforSolarsystem_RV_Camping_Boat_HomeEnergyStorage1_1_4-2.webp?v=1717127107"},"aspect_ratio":1.0,"height":1000,"media_type":"image","src":"\/\/ca.litime.com\/cdn\/shop\/files\/LiTime12V230AhPlusLiFePO4BatteryBuilt-in200ABMS_Max2_944WhEnergy_LithiumIronPhosphateBatteryPerfectforSolarsystem_RV_Camping_Boat_HomeEnergyStorage1_1_4-2.webp?v=1717127107","width":1000}]
null
Share
/products/12v-230ah-plus-lithium-battery
FEATURES
SPECS
FAQ
REVIEWS
Upgraded Low-Temperature Protection
Maximize your battery life and charging efficiency with the low-temperature charging cutoff protection - keeping you safe and powered up even in the coldest conditions.
Ultra-Long Battery Lifespan
Impressive 4000+ cycles for a 10-year lifespan. Coupled with an intelligent BMS, it operates efficiently while ensuring safety and reliability.
All-Round Upgraded BMS
Designed for harsh environments such as rainy or coastal areas, or dusty and wet conditions, the upgraded 12V 230Ah LiFePO4 deep cycle battery offers worry-free and long-lasting performance with a reduced risk of damage and an extended lifespan.
Support 4P4S To 40.96KW Load Power
3 Ways to Recharge
Ready for Adventures
BATTERY
Cell Type：
Prismatic LiFePO4
Warranty：
5 years
Cycle Life：
4000 cycles at 100% DOD, 6000 cycles at 80% DOD, 15,000 cycles at 60% DOD
Nominal Voltage：
12.8V
Rated Capacity：
230Ah
Energy：
2944Wh
Max. Expansion (Parallel & Series)：
4P4S
Internal Resistance：
≤40mΩ
Certifications：
UL, FCC, CE, RoHS, UN38.3
BMS
BMS：
200A
Max. Continuous Output Power：
2560W
Max. Continuous Charge Current：
200A
Max. Continuous Discharge Current：
200A
Max. Discharge Current 5 Seconds：
600A
CHARGE
Charge Method：
CC/CV
Charge Voltage：
14.4V ± 0.2V
Recommend Charge Current：
46A (0.2C)
TEMPERATURE
Charge Temperature：
0℃ to 50℃ / 32℉ to 122℉
Discharge Temperature：
-20℃ to 60℃ / -4℉ to 140℉
Storage Temperature：
-10℃ to 50℃ / 14℉ to 122℉
Low-Temperature Protection：
Yes (32℉/0℃)
Low-Temperature Charging Protection Auto Recovery：
Yes (41℉/5℃)
SELF-HEATING
Heating Temperature：
N/A
Approx. Heating Time：
N/A
Required Minimum Charge Current for Heating Function：
M8 bolts
OTHERS
Terminals：
M8 bolts
Weight Approx.：
45.22lbs

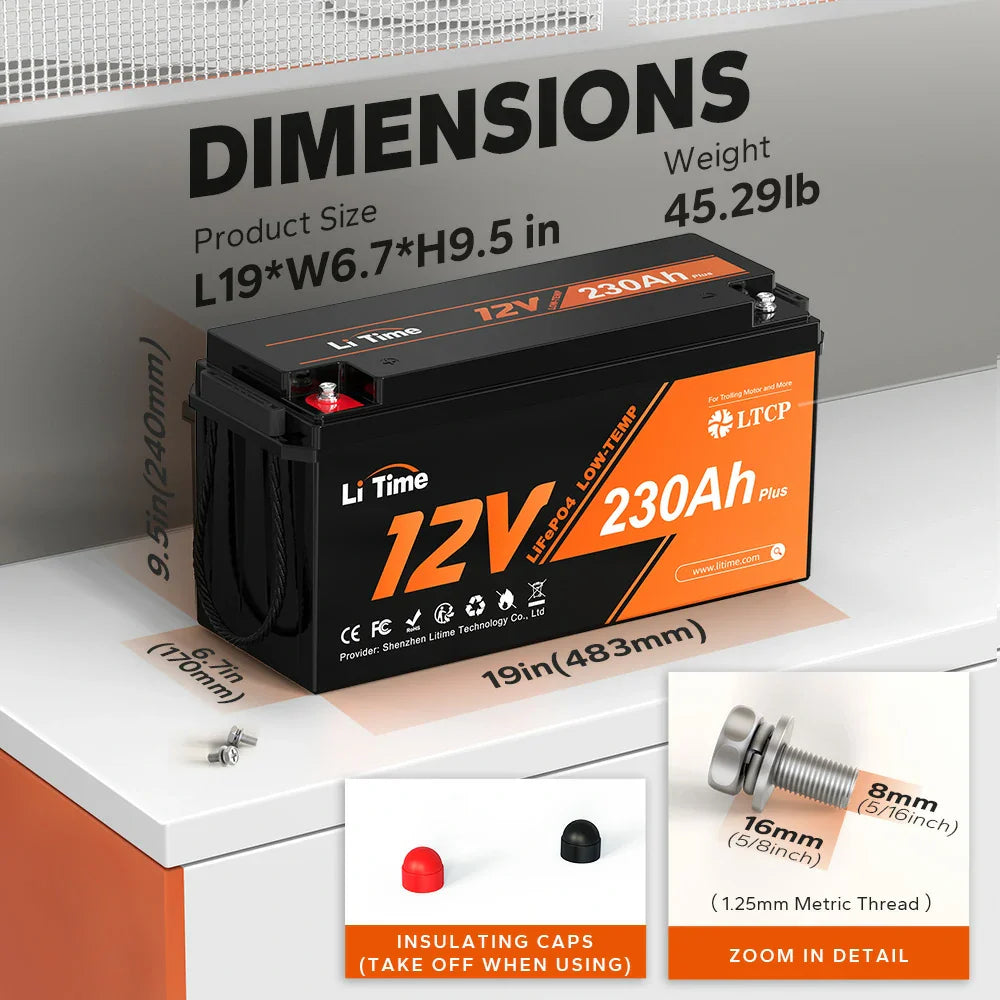

Size：
L19*W6.7*H9.5 inch
Housing Material：
ABS
Protection Class：
IP65
Can I use LiTime LiFePO4 lithium batteries as starting batteries?
No. LiTime LiFePO4 lithium batteries are not intended to be used as starting batteries but energy storage, please do not use them to start any devices. Learn more about Deep Cycle VS Starting Batteries.
Are LiTime LiFePO4 lithium batteries safe?
Yes. LiFePO4 is an inherently safe chemistry and the most stable lithium-type battery on the market. LiTime lithium cells are UL certified for the highest safety and sustainability standards. All LiTime LiFePO4 batteries come with an internal Battery Management System which protects against under-voltage during discharge, over-voltage during charge, over-current during discharge, over-temperature during charge and discharge, and short-circuit protection – protects battery cells from damage. Additionally, LiTime LiFePO4 Lithium batteries have been tested to be free from the risk of fire, and electric shock in harsh environments.
Can I charge LiTime LiFePO4 lithium batteries with solar panels?
Yes, you can charge LiTime LiFePO4 lithium batteries with solar panels. Here are 3 ways to charge the battery.
1. Using Solar Panels
The LiTime 12V 230Ah battery can be fully charged by in one day (with effective sunshine 4.5hrs/day) by 800W solar panels. It may take more than one day to fully charge the battery by ≥800W solar panels since the duration and intensity of light would be a great factor for their charging efficiency.
2. Generator/Alternator
If the alternator or generator supports DC output, a DC-to-DC charger is needed to connect the battery to the generator; if your alternator or generator supports AC output, please add a suitable battery charger to connect the battery and the generator according to our recommendations.
The Recommended Charging Voltage: 14.2V - 14.6V.
The Recommended Charging Current: ① 46A (0.2C): the battery will be fully charged in around 5 hrs to 100% capacity; ② 115A (0.5C): the battery will be fully charged in around 2 hrs to around 97% capacity.
3. LiFePO4 Smart Chargers
To charge 12V battery, it is recommended to use 14.6V battery charger. The Recommended Charging Voltage: 14.2V - 14.6V.
The Recommended Charging Current: ① 46A (0.2C): the battery will be fully charged in around 5 hrs to 100% capacity; ② 115A (0.5C): the battery will be fully charged in around 2 hrs to around 97% capacity.Related reading: Can I Charge LiFePO4 batteries with a Normal Charger?
Can I charge LiTime LiFePO4 lithium batteries in cold weather (under freezing temperatures)?
LiFePO4 batteries can safely charge between 32°F to 113°F (0°C to 45°C). LiTime 12V 230Ah LiFePO4 batteries include the low-temperature charging protection which will automatically cut the battery charging off when the cell temperature is lower than 32℉, thus preventing the battery cells from damage when charging under the freezing point.
How do I store LiTime LiFePO4 lithium batteries?
It is recommended to store LiFePO4 lithium batteries at 50% state of charge (SOC). If the batteries are stored for long periods, cycle the batteries at least every 3 months. Recommended storage environment: -10℃ to 50℃/14℉ to 122℉，45%RH～75％RH
In what applications can I use 12V 230Ah LiFePO4 lithium battery?
1. Solar Energy Storage: LiFePO4 batteries are commonly used in off-grid solar energy systems for storing and utilizing solar-generated electricity.
2. RVs and Marine Applications: These batteries are suitable for powering lights, appliances, and electronic devices in RVs, boats, and yachts, providing a reliable and long-lasting power source.

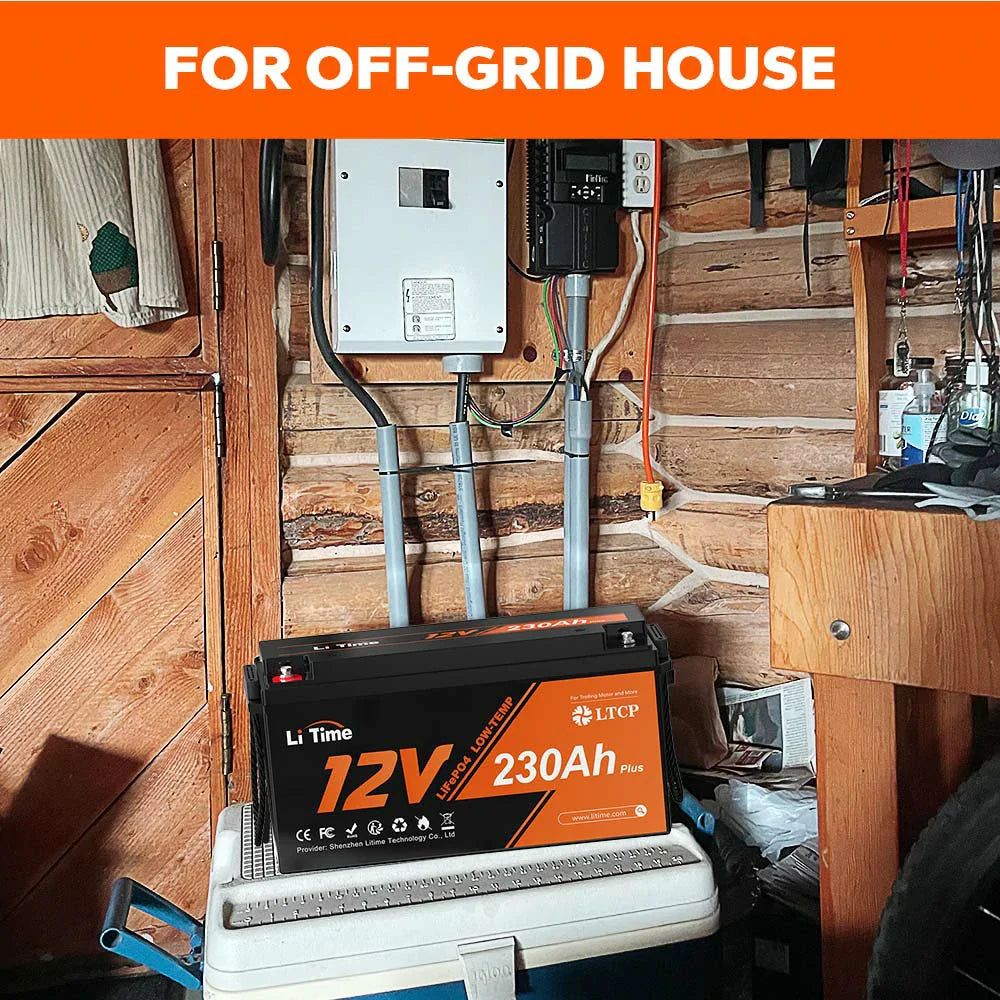

3. Off-Grid Power Solutions: LiFePO4 batteries can be used for off-grid cabins, cottages, or remote locations where a reliable power supply is necessary.
4. Backup Power for Home and Business: They can be utilized as a backup power source for homes, businesses, or critical systems in case of power outages.
5. UPS (Uninterruptible Power Supply): LiFePO4 batteries can be integrated into UPS systems to provide reliable and long-lasting backup power for critical equipment.
How Long Will a 12V 230Ah Battery Last?
The length of time a 12V 230Ah battery will last depends on the amount of current drawn from it and the specific use. You can estimate this by using the following formula:
Battery life (in hours) = Battery capacity (in amp-hours) / Load current (in amperes)
For example, if we assume a load current of 10 amperes:
Battery life = 230Ah / 10A = 23 hours
This means you can expect approximately 23 hours of continuous operation with a 10-ampere load. However, actual duration can vary based on factors such as system efficiency, changes in the load current, and the overall condition of the battery.
Can I pair a Bluetooth Module for this battery to monitor the battery status on the phone?
No. This battery is not compatible with the Bluetooth module. You can use a 500A Battery Monitor With Shunt to keep track of battery status.
