LiTime brand-new group 24 Bluetooth LiFePO4 battery propels industry-advancing innovations in performance, safety, energy efficiency and energy density. It demonstrates LiTime's continued drive to push the boundaries of lithium battery industry.
Quality and Technology, Pushing Beyond Limits
Litime has been committed to advancing lithium iron phosphate battery technology through dedicated research and development. Through rigorous analysis and experimentation, Litime experts have developed deep insight into all aspects of battery performance, safety and reliability. We stand ready to power our future with its industry-leading solutions.

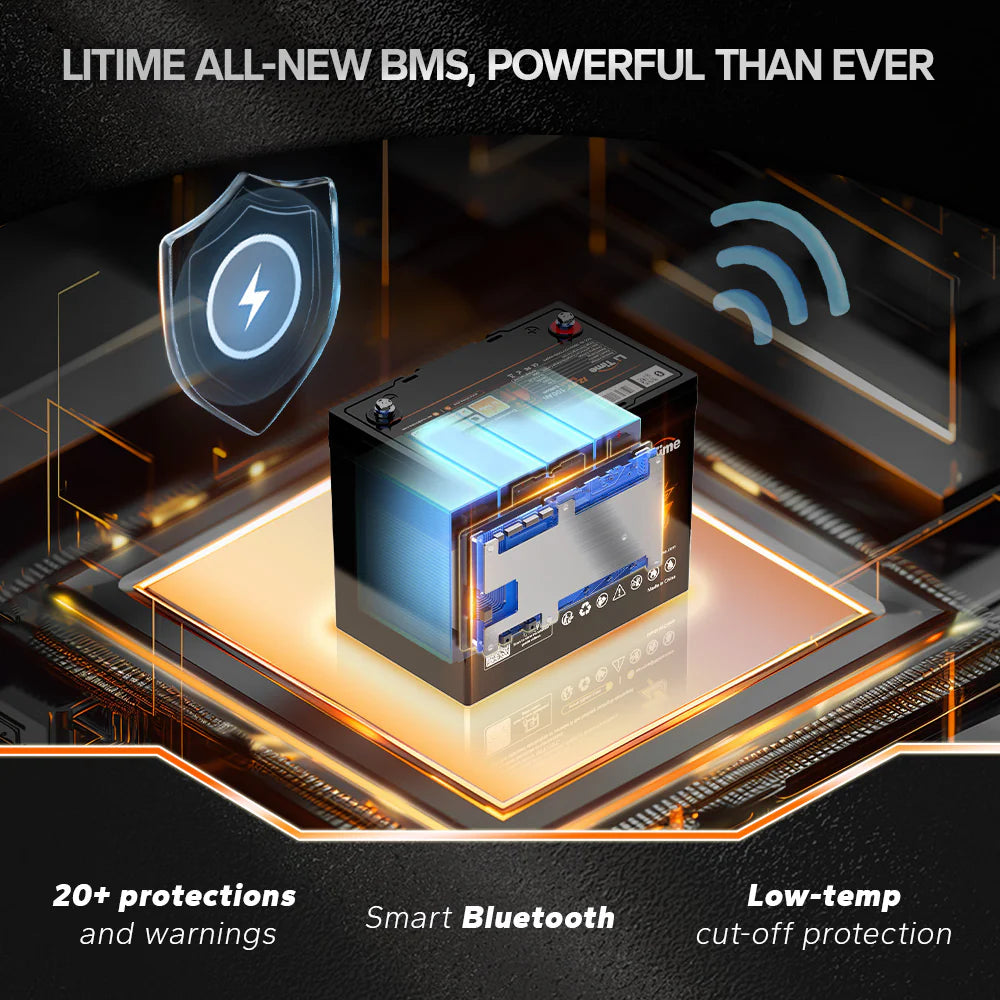

Self-Developed BMS, LiTime's Latest, Best & Greatest
The advanced 100A battery management system (BMS) has 20+ protections and warnings, majorly including smart Bluetooth, low-temp charging cut-off protection, over-voltage protection, low-voltage protection, over-current protection with auto recovery function, over-temp protection, low-temp protection, short-circuit protection, overload protection and pre-charging function with 30mF capative load, which enable it to operate stably, intelligently and safely.
Smart Bluetooth, Remote Genius at Your Fingertips

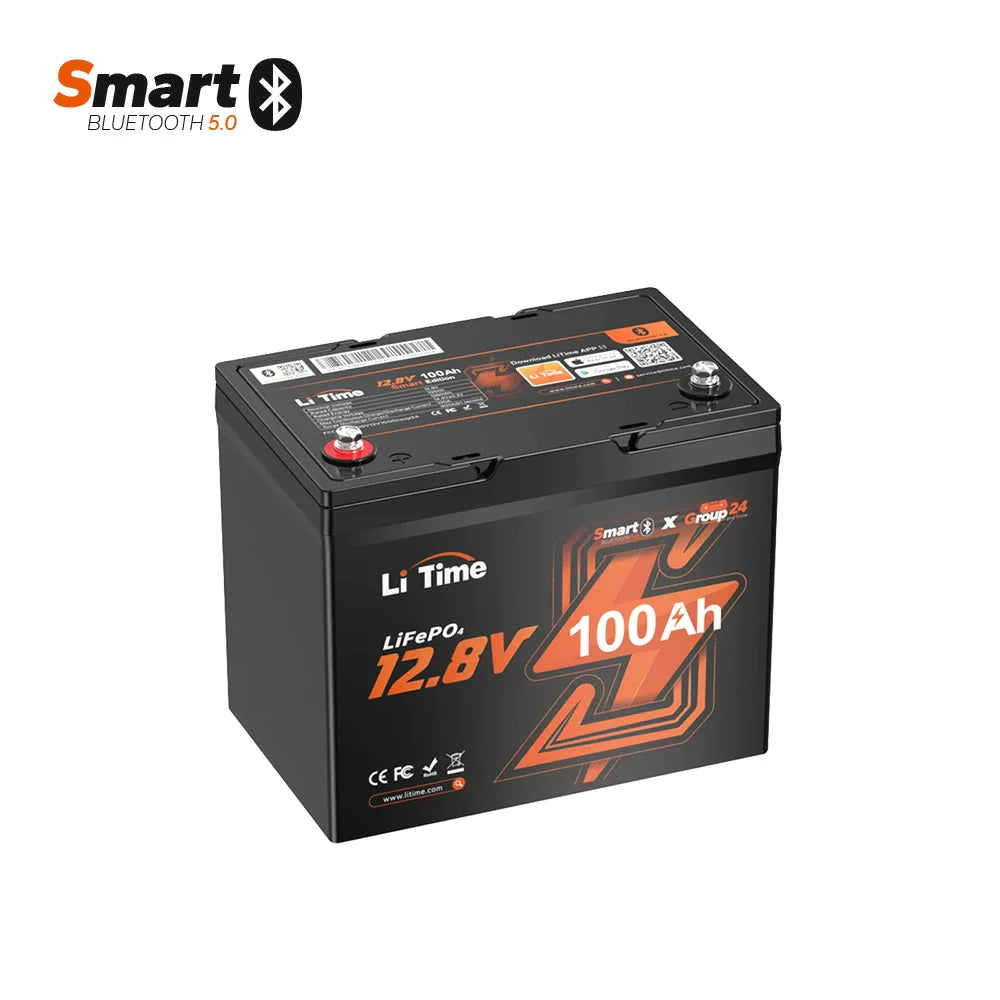

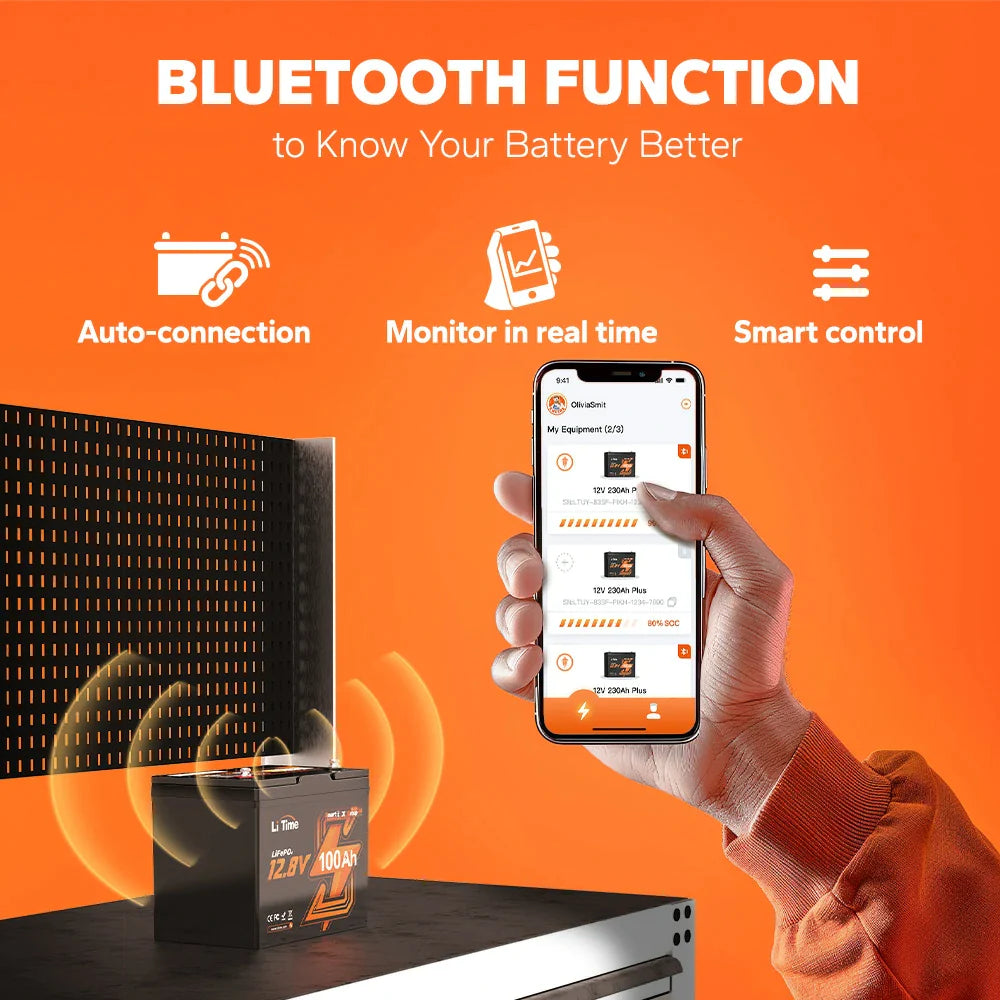

LiTime's latest 12V100Ah Group 24 Smart LiFePO4 battery is equipped with Smart Bluetooth 5.0. You can connect the LiTime APP to monitor the battery's overall status and data in real time, including SOC, charge/discharge/idle state, battery voltage, current, Power, remaining capacity, battery temperature and life cycles, scan the battery barcode to connect it automatically and use it to control discharge or turn it off.
Rigorously Tested, Routinely Trusted
With the Bluetooth FCC\CE-RED cert. and passing the tests of EMC and RF, Bluetooth 5.0 has a stable connection between Bluetooth and battery and reduces signal interference from the outside to enhance the signal. Its stability gives you convenience, peace of mind and comfort.

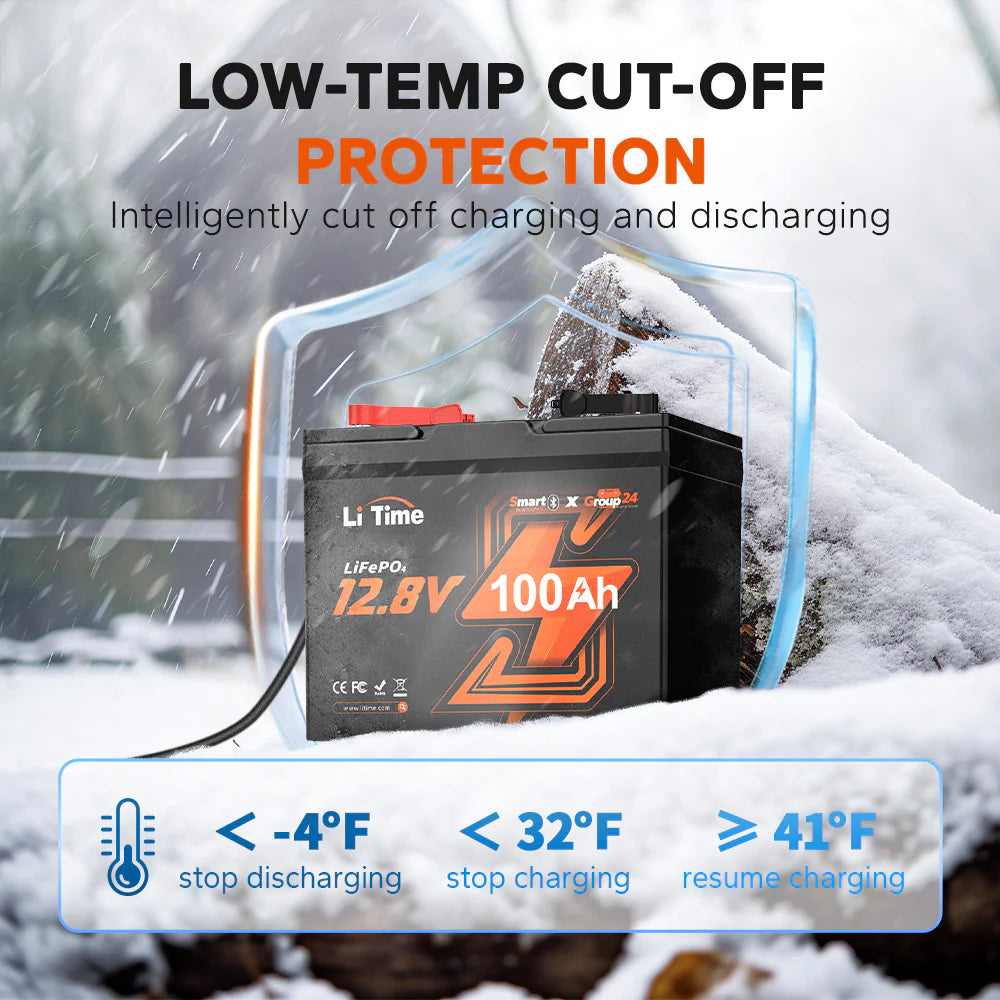

Low-Temp Cut-off Protection
LiTime 12V 100Ah Group 24 Smart LiFePO4 battery with low-temp charging cut-off protection can intelligently cut off charging at <0℃ and stop discharging at < -20℃, effortlessly protecting your battery.

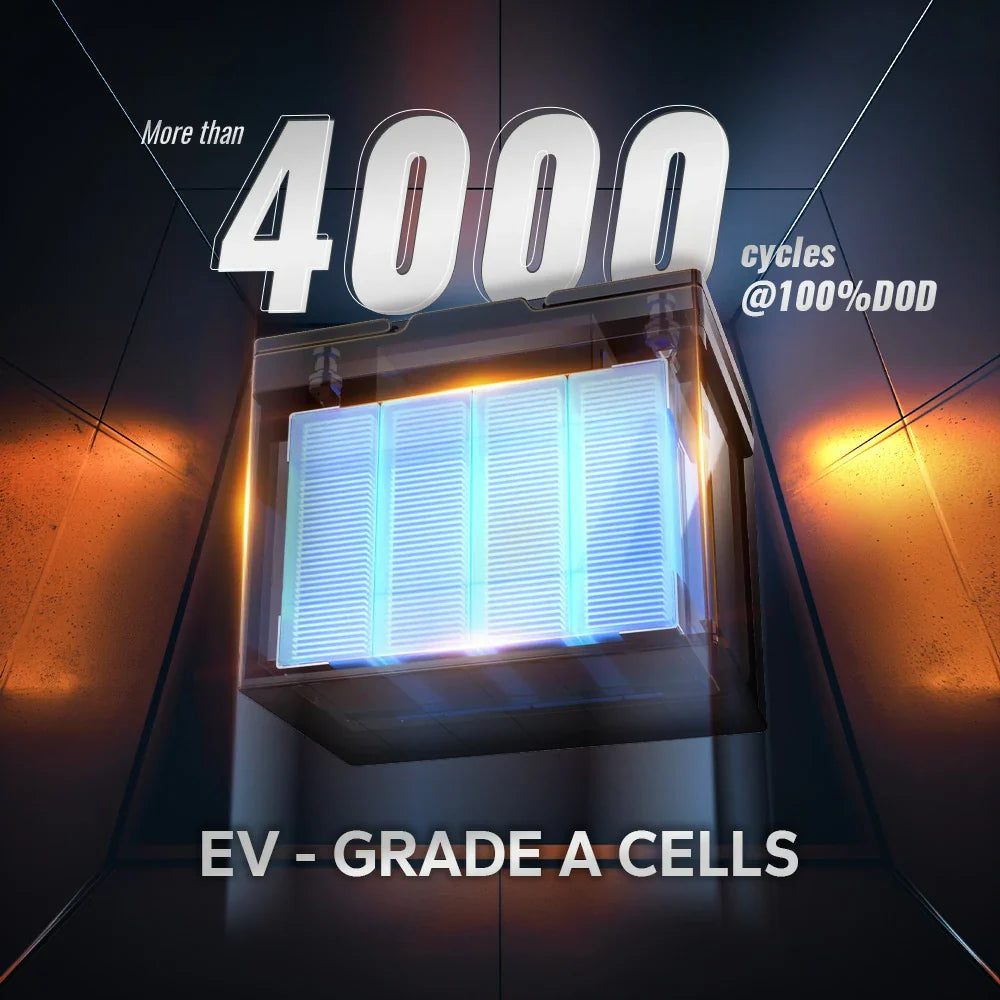

Unbeatable Quality, Setting New Standards
Equipped with automotive Grade-A prismatic cells, the 12V100Ah Group 24 Smart LiFePO4 battery is more powerful in stress resistance and heat dissipation. The advanced cells offer over 4000+ life cycles @100%DOD, and their exceptional lifespan gives you long-lasting companionship.
Unmatched Energy, Strength Like No Other

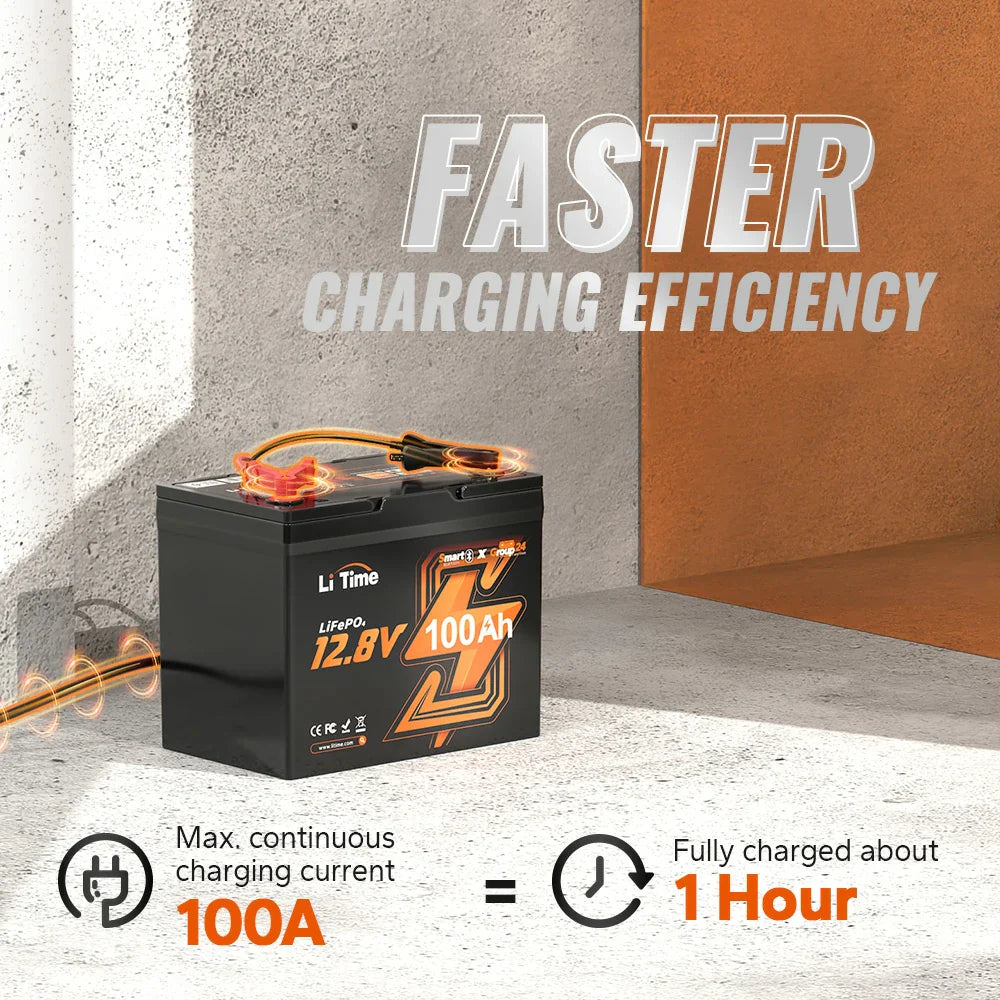

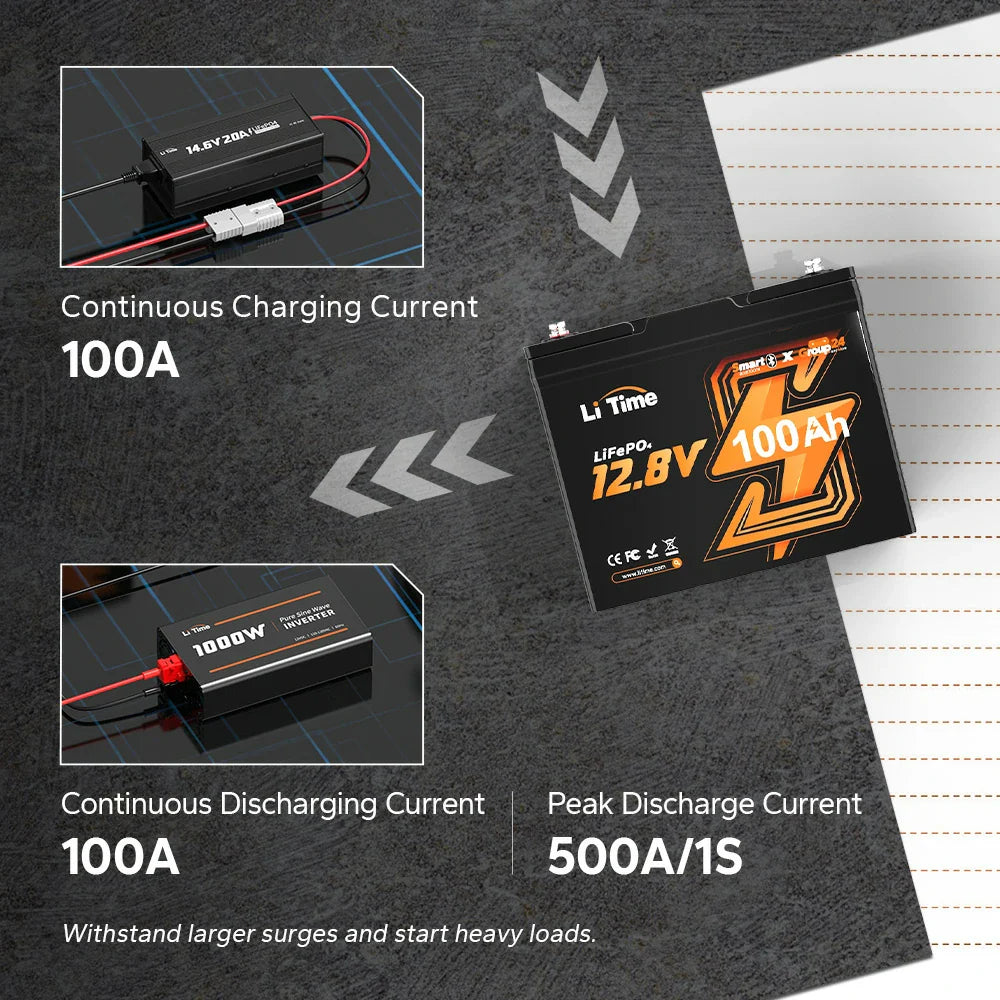

We represent the true battery capacity and performance without exaggeration. The battery offers 1280Wh of energy and 1280W Output Power to meet your daily needs. It has a 100A charge/discharge current and a 500A@1 Second peak discharge current, which makes it able to withstand larger surges and start heavy loads.
Mighty Energy, Minimal Size

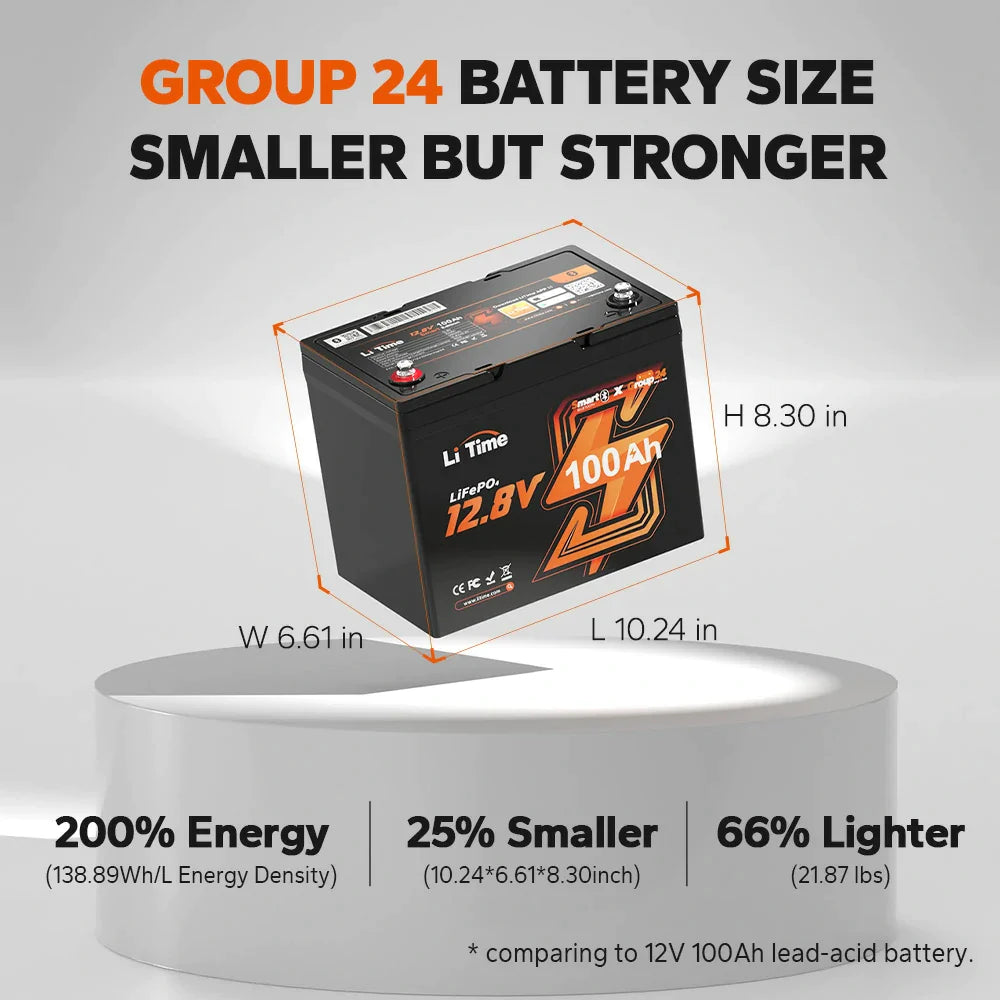

Sizing L10.24 * W6.61 * H8.30 inch, it is equivalent to group 24 battery size and saves up to 25% space than 12V 100Ah lead-acid battery, but releases 200% energy.
Solution for Every Situation
Connect batteries easily and safely to expand Max. 20.48kWh usable power. With a pre-charging function, which can carry a 30mF capative load, it can be used for RVs, trolling motors, off-grid and home storage with confidence.
Three Charging Ways
Charge the LiTime 12V 100Ah Group 24 Smart LiFePO4 battery faster and more conveniently than ever before! This powerful lithium battery can be recharged via LiFePO4 charger, solar panel or generator - providing flexible fueling however you need.
Precautions for Usage
Tips for a better using experience and batteries' healt
Trust Is Our Foundation, Excellence Is Our Promise
Perfect Match For Your Lithium Battery
Q: How do I monitor the battery status?
No. For a Group 24 battery with Bluetooth functionality, you can explore the LiTime Group 24 Smart.
Q: What to do when receive the battery?
Upon receiving your battery, please note that it may arrive with a low State of Charge (SOC) as a result of the transportation and storage process. To ensure peak performance, we advise promptly charging the battery to prevent over-discharge.
If you intend to store the battery for an extended period without use, we recommend charging it to a SOC 50% and conducting maintenance every three months. These measures will help preserve its functionality and performance in the long run.
Q: Does this battery has low-temperature protection?
Yes, this battery has low-temperature charging-off protection. It's recommend to charge the battery during the temperature range: 0℃ to 50℃ / 32℉ to 122℉.
Q: How many batteries can I connect in sereis or parallel?
The 12V lithium battery from LiTime supports maximum connections of 4 in series and 4 in parallel. Allow you to build up a maximum battery system of 16 battery units with 20.48kWh Max. capacity and 20.48kW of Max. power.
Note: To connect in series or /and parallel, batteries should meet the below conditions:
a. identical batteries with the same battery capacity (Ah) and BMS (A);
b. from the same brand (as lithium battery from different brands has their special BMS);
c. purchased in near time (within one month)
Q: How to charge LiTime 12V 100Ah Bluetooth lithium batteries?
1. Using Solar Panels
The battery can be fully charged in one day (with effective sunshine 4.5 hrs/day) by 400W solar panels. It may take more than one day to fully charge the battery by ≥400W solar panels since the duration and intensity of light would be a great factor for their charging efficiency.
2. Generator/Alternator
If the alternator or generator supports DC output, a DC-to-DC charger is needed to connect the battery to the generator; if your alternator or generator supports AC output, please add a suitable battery charger to connect the battery and the generator according to our recommendations. The Recommended Charging Voltage: 14.2V - 14.6V. The Recommended Charging Current: ① 20A (0.2C): the battery will be fully charged in around 5 hrs to 100% capacity; ② 50A (0.5C): the battery will be fully charged in around 2 hrs to around 97% capacity.

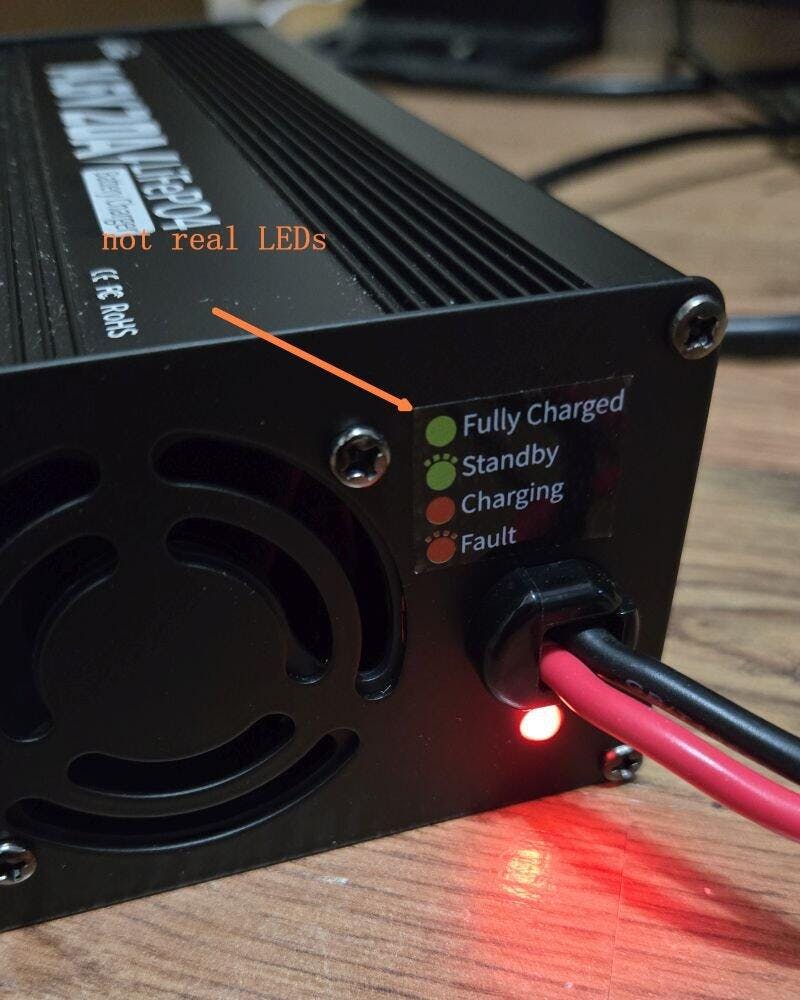

3. LiFePO4 Smart Chargers
To charge 12V battery, it is recommended to use 14.6V battery charger.
The Recommended Charging Voltage: 14.2V - 14.6V.
The Recommended Charging Current: ① 20A (0.2C): the battery will be fully charged in around 5 hrs to 100% capacity; ② 50A (0.5C): the battery will be fully charged in around 2 hrs to around 97% capacity.
Q: What are the Differences Between a Group 24 and Group 31 Battery?
The main difference between a LiTime Group 24 and Group 31 battery lies in their physical size. Group 24 batteries are generally smaller compared to Group 31 batteries.
Can read on Deep Cycle Group 24 VS Group 31 for more information.
