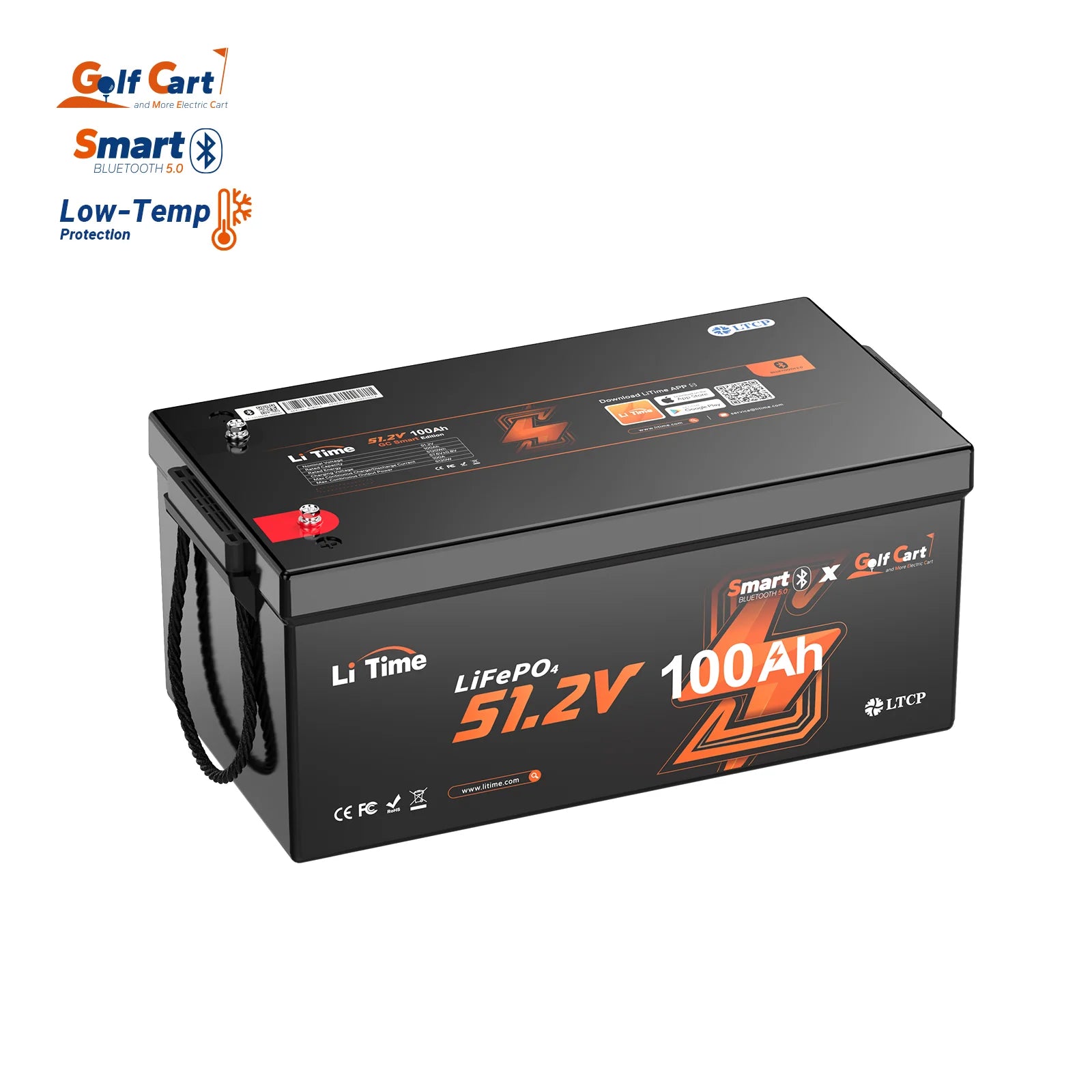

LiTime 48V 100Ah Bluetooth Lithium Golf Cart Battery

The LiTime 48V 100Ah Golf Cart Bluetooth Lithium Battery is designed to be compatible with various golf cart models, including:

- Club Car: Models such as the Club Car Precedent and Club Car DS.

- EZGO: Models like the EZGO TXT and EZGO RXV.

- ICON: Various ICON golf cart models.

- Yamaha: Models including the Yamaha Drive and Yamaha G29.

How to Check Compatibility:

1. Confirm Your Cart's Voltage: Most golf carts run on either 36V or 48V systems. This battery is only compatible with 48V systems.

2. Review Your Cart's Manual: Check your golf cart's user manual or inspect the current battery label to verify the voltage.

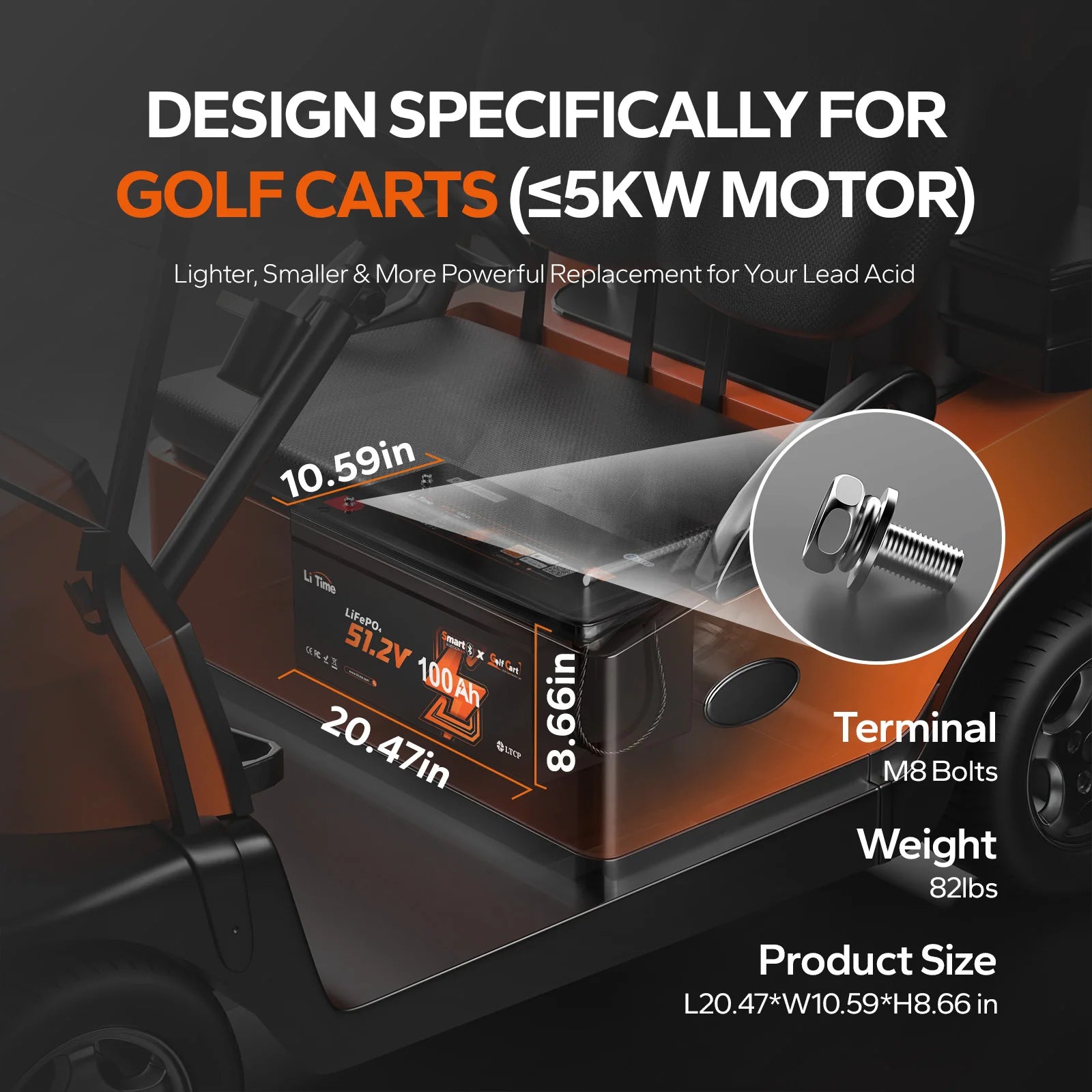

3. Measure Space Requirements: Ensure your cart has sufficient space to accommodate the dimensions of the LiTime 48V battery.


You can download the LiTime Bluetooth App from both the Apple App Store and Google Play Store.

Simply install the app, open it, and use it to scan the QR code on your battery to connect. Alternatively, the app allows you to search for nearby Bluetooth-enabled batteries for easy pairing.

There are 3 main ways to charge the LiTime 48V Lithium Battery:

1. Using a LiFePO4 Battery Charger:

• Recommended Charger Voltage: 53.25V to 54.75V
• Recommended Current:
• 20A (0.2C): Fully charges the battery in about 5 hours.
• 50A (0.5C): Charges to about 97% in around 2 hours.

Important Tips:

• Always connect the charger to the battery before plugging it into a power source to avoid sparks.
• Disconnect the charger after the battery is fully charged.

2. Using Solar Panels:

• With 1600W solar panels, the battery can be fully charged in one day with 4.5 hours of effective sunlight.
• Light duration and intensity will impact the charging time, and lower wattage panels may take longer.

3. Using a Generator or Alternator:

• If the alternator or generator outputs DC, use a DC-to-DC charger to connect the battery.
• If it outputs AC, use a suitable battery charger per the recommended voltage (53.25V - 54.75V) and current (20A or 50A) specifications.



Low-Temperature Cutoff Protection:

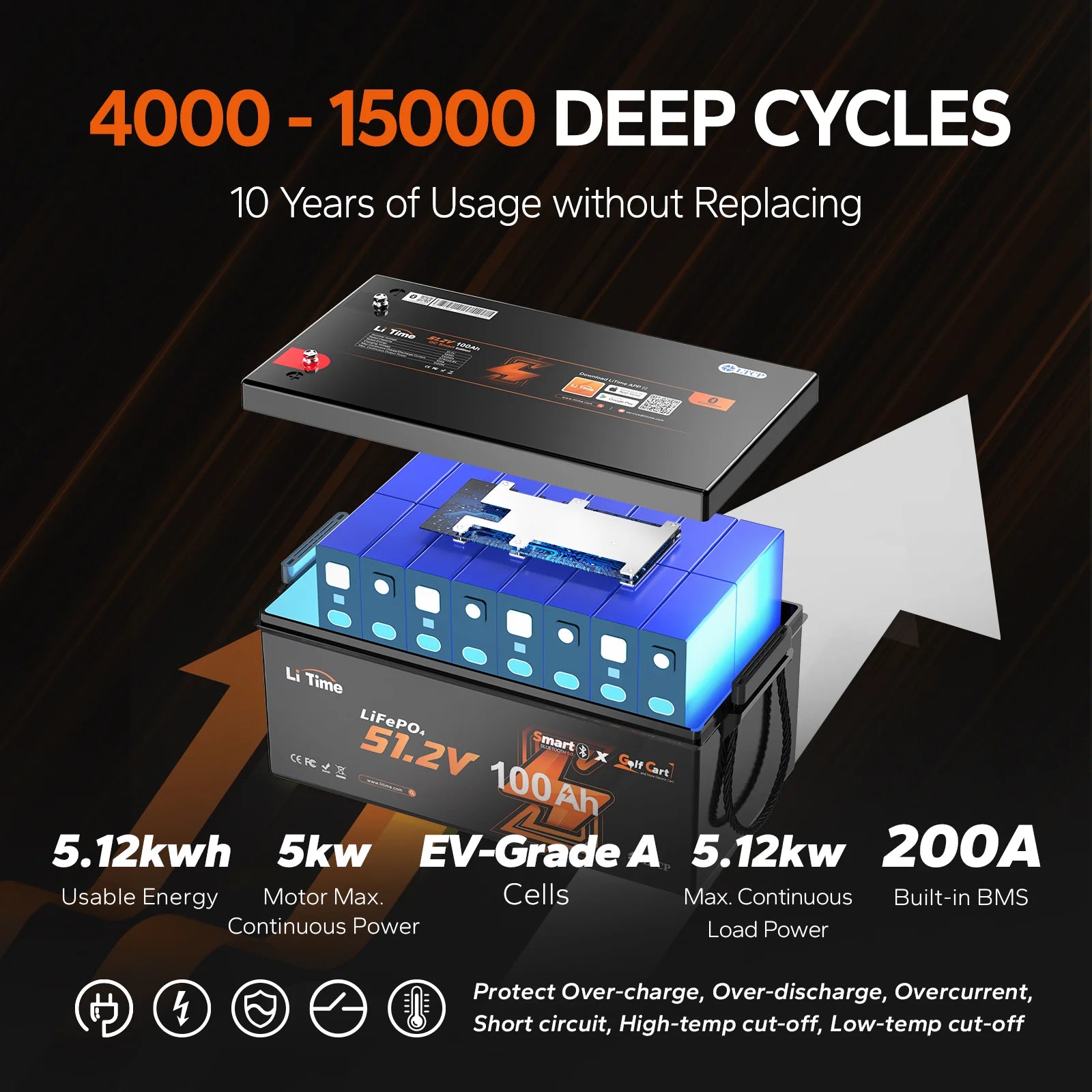

This battery features an advanced Battery Management System (BMS) with low-temperature cut-off protection.

It automatically suspends charging below 0°C (32°F) and discharging below -20°C (-4°F) to prevent damage and ensure safety.

Performance in Cold Climates:

Designed to operate effectively in cold environments, the battery maintains consistent performance, makin it suitable for Canadian winters.

The low-temperature cutoff function safeguards the battery, allowing for dependable use year-round.

Recommendations for Canadian Users:

• Storage: Store the battery in a cool, dry place when not in use to preserve its lifespan.
• Usage: Be mindful of the battery's operating temperature range to ensure optimal performance.

Yes, you need a charger specifically designed for lithium batteries. Using a compatible charger ensures optimal charging performance, prevents damage, and extends the battery's lifespan.

Switching to lithium batteries offers significant performance improvements for golf carts:

• Enhanced Power Delivery: Lithium batteries provide more consistent power, making it easier to climb hills and tackle inclines.
• Higher Top Speeds: The improved energy efficiency enables faster speeds compared to traditional lead-acid batteries.
• Longer Lifespan: Lithium batteries last significantly longer, reducing replacement frequency and long-term costs.




While 36V systems are reliable, a 48V lithium battery provides notable advantages:

• Faster Acceleration: With higher torque, the 48V system accelerates more quickly.
• Increased Power: Perfect for hilly or challenging terrain, a 48V battery delivers superior power.
• Greater Efficiency: 48V systems draw fewer amps, allowing for longer run times on a single charge.
• Better for Rough Terrain: The added power and efficiency make it ideal for off-road and uneven surfaces.
