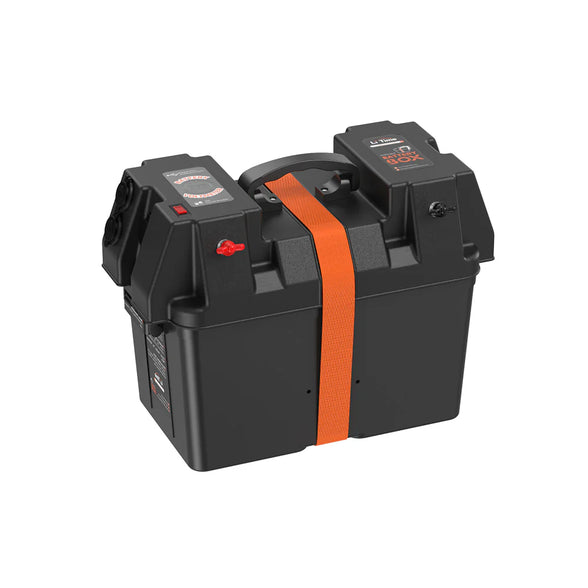

LiTime Group 24/27/31 Marine Battery Box, Built-in Voltmeter

1 / 0

Features

LiTime Group 24/27/31 Marine Battery Box, Built-in Voltmeter

C$128.99

C$159.99

19% OFF

【Keeps your Battery Safe】LiTime portable battery box adopts PC/PBT plastic material to make it lightweight but sturdy enough, it can withstand battery weights of up to 66 lbs without any worry. The water-resistant design with adequate ventilation protects your battery against accidental contact with battery terminals, making it an ideal option for boats, RVs, travel trailers, and trolling motors.

【Convenient to Carry and Reliable to Use】Lightweight at only 3.04 lbs, making it easy to carry with you everywhere. External terminals and a built-in smart voltmeter allow you to easily check the battery’s condition. The battery box also comes with a 12V accessory socket that includes 2* 15A Cig Sockets, 1* QC 3.0, and 1* Type C outlet, providing ample charging options. 16A circuit breaker can be cut off to protect the battery box as the DC is over 16A, offering you a peaceful mind while using it.

【Fit Multiple Battery Types】With an internal size of about L14*W8.11*H8.66 inches, the LiTime portable battery box can be paired with group 24, group 27, and group 31 size batteries. The battery box is equipped with 6AWG Silicone Cable, M8 Ring Terminal for easy connection to your battery. This LiTime portable battery box is suitable for Lithium, Gel, Sealed, and Flooded types of Lead Acid batteries.

【Battery Box for Boat】Safely and easily connect your trolling motor or accessory to the battery outlet ports and monitor your battery’s voltage without having to open the box. Compatible with LiTime 12V 50Ah, 12V 100Ah, 12V 100Ah TM, and 12V 100Ah Self-Heating.

【2-5 Days Fast Delivery & 24hrs Customer Service】LiTime Group is committed to providing you with satisfactory service. We will ship your order from USA local warehouses in CA, TX, or GA. You can expect professional technical support and one-to-one customer service with quick feedback within 24 hours.

Comparison

Hurry—Only 78 Left in Stock!

Quantity:

C$128.99

C$159.99

19% OFF

Add to Cart

2 Years Warranty

Backed up by techical support within 24hrs

Free Shipping

Free standard shipping on all orders

Free Returns

30 Days Hassle Free Returns

Battery Box

C$128.99

C$159.99

[{"alt":null,"id":39796690256168,"position":1,"preview_image":{"aspect_ratio":1.0,"height":1000,"width":1000,"src":"\/\/ca.litime.com\/cdn\/shop\/files\/99d35b249fc3dfe78903a93b2dd1b0cc.webp?v=1723023826"},"aspect_ratio":1.0,"height":1000,"media_type":"image","src":"\/\/ca.litime.com\/cdn\/shop\/files\/99d35b249fc3dfe78903a93b2dd1b0cc.webp?v=1723023826","width":1000},{"alt":null,"id":39796690616616,"position":2,"preview_image":{"aspect_ratio":1.0,"height":1600,"width":1600,"src":"\/\/ca.litime.com\/cdn\/shop\/files\/LiTimePortableBatteryBoxforBoats_Kayaks_Marine_RV_Trailer_andWaterproofforTrollingMotorIncludes12VoltAccessorySocket_Built-inVoltmeterFitsGroup24or27SizeBatteries10.webp?v=1723023826"},"aspect_ratio":1.0,"height":1600,"media_type":"image","src":"\/\/ca.litime.com\/cdn\/shop\/files\/LiTimePortableBatteryBoxforBoats_Kayaks_Marine_RV_Trailer_andWaterproofforTrollingMotorIncludes12VoltAccessorySocket_Built-inVoltmeterFitsGroup24or27SizeBatteries10.webp?v=1723023826","width":1600},{"alt":null,"id":39796690321704,"position":3,"preview_image":{"aspect_ratio":1.0,"height":1600,"width":1600,"src":"\/\/ca.litime.com\/cdn\/shop\/files\/LiTimeGroup242731BatteryBox_Built-inVoltmeter_3.webp?v=1723023826"},"aspect_ratio":1.0,"height":1600,"media_type":"image","src":"\/\/ca.litime.com\/cdn\/shop\/files\/LiTimeGroup242731BatteryBox_Built-inVoltmeter_3.webp?v=1723023826","width":1600},{"alt":null,"id":39796690354472,"position":4,"preview_image":{"aspect_ratio":1.0,"height":1600,"width":1600,"src":"\/\/ca.litime.com\/cdn\/shop\/files\/LiTimeGroup242731BatteryBox_Built-inVoltmeter_4.webp?v=1723023826"},"aspect_ratio":1.0,"height":1600,"media_type":"image","src":"\/\/ca.litime.com\/cdn\/shop\/files\/LiTimeGroup242731BatteryBox_Built-inVoltmeter_4.webp?v=1723023826","width":1600},{"alt":null,"id":39796690387240,"position":5,"preview_image":{"aspect_ratio":1.0,"height":1600,"width":1600,"src":"\/\/ca.litime.com\/cdn\/shop\/files\/LiTimePortableBatteryBoxforBoats_Kayaks_Marine_RV_Trailer_andWaterproofforTrollingMotorIncludes12VoltAccessorySocket_Built-inVoltmeterFitsGroup24or27SizeBatteries2.webp?v=1723023826"},"aspect_ratio":1.0,"height":1600,"media_type":"image","src":"\/\/ca.litime.com\/cdn\/shop\/files\/LiTimePortableBatteryBoxforBoats_Kayaks_Marine_RV_Trailer_andWaterproofforTrollingMotorIncludes12VoltAccessorySocket_Built-inVoltmeterFitsGroup24or27SizeBatteries2.webp?v=1723023826","width":1600},{"alt":null,"id":39796690420008,"position":6,"preview_image":{"aspect_ratio":1.0,"height":1600,"width":1600,"src":"\/\/ca.litime.com\/cdn\/shop\/files\/LiTimePortableBatteryBoxforBoats_Kayaks_Marine_RV_Trailer_andWaterproofforTrollingMotorIncludes12VoltAccessorySocket_Built-inVoltmeterFitsGroup24or27SizeBatteries3.webp?v=1723023826"},"aspect_ratio":1.0,"height":1600,"media_type":"image","src":"\/\/ca.litime.com\/cdn\/shop\/files\/LiTimePortableBatteryBoxforBoats_Kayaks_Marine_RV_Trailer_andWaterproofforTrollingMotorIncludes12VoltAccessorySocket_Built-inVoltmeterFitsGroup24or27SizeBatteries3.webp?v=1723023826","width":1600},{"alt":null,"id":39796690452776,"position":7,"preview_image":{"aspect_ratio":1.0,"height":1600,"width":1600,"src":"\/\/ca.litime.com\/cdn\/shop\/files\/LiTimePortableBatteryBoxforBoats_Kayaks_Marine_RV_Trailer_andWaterproofforTrollingMotorIncludes12VoltAccessorySocket_Built-inVoltmeterFitsGroup24or27SizeBatteries5.webp?v=1723023826"},"aspect_ratio":1.0,"height":1600,"media_type":"image","src":"\/\/ca.litime.com\/cdn\/shop\/files\/LiTimePortableBatteryBoxforBoats_Kayaks_Marine_RV_Trailer_andWaterproofforTrollingMotorIncludes12VoltAccessorySocket_Built-inVoltmeterFitsGroup24or27SizeBatteries5.webp?v=1723023826","width":1600},{"alt":null,"id":39796690518312,"position":8,"preview_image":{"aspect_ratio":1.0,"height":1600,"width":1600,"src":"\/\/ca.litime.com\/cdn\/shop\/files\/LiTimePortableBatteryBoxforBoats_Kayaks_Marine_RV_Trailer_andWaterproofforTrollingMotorIncludes12VoltAccessorySocket_Built-inVoltmeterFitsGroup24or27SizeBatteries7.webp?v=1723023826"},"aspect_ratio":1.0,"height":1600,"media_type":"image","src":"\/\/ca.litime.com\/cdn\/shop\/files\/LiTimePortableBatteryBoxforBoats_Kayaks_Marine_RV_Trailer_andWaterproofforTrollingMotorIncludes12VoltAccessorySocket_Built-inVoltmeterFitsGroup24or27SizeBatteries7.webp?v=1723023826","width":1600},{"alt":null,"id":39796690551080,"position":9,"preview_image":{"aspect_ratio":1.0,"height":1600,"width":1600,"src":"\/\/ca.litime.com\/cdn\/shop\/files\/LiTimePortableBatteryBoxforBoats_Kayaks_Marine_RV_Trailer_andWaterproofforTrollingMotorIncludes12VoltAccessorySocket_Built-inVoltmeterFitsGroup24or27SizeBatteries8.jpg?v=1723023826"},"aspect_ratio":1.0,"height":1600,"media_type":"image","src":"\/\/ca.litime.com\/cdn\/shop\/files\/LiTimePortableBatteryBoxforBoats_Kayaks_Marine_RV_Trailer_andWaterproofforTrollingMotorIncludes12VoltAccessorySocket_Built-inVoltmeterFitsGroup24or27SizeBatteries8.jpg?v=1723023826","width":1600},{"alt":null,"id":39796690583848,"position":10,"preview_image":{"aspect_ratio":1.0,"height":1600,"width":1600,"src":"\/\/ca.litime.com\/cdn\/shop\/files\/LiTimePortableBatteryBoxforBoats_Kayaks_Marine_RV_Trailer_andWaterproofforTrollingMotorIncludes12VoltAccessorySocket_Built-inVoltmeterFitsGroup24or27SizeBatteries9.webp?v=1723023826"},"aspect_ratio":1.0,"height":1600,"media_type":"image","src":"\/\/ca.litime.com\/cdn\/shop\/files\/LiTimePortableBatteryBoxforBoats_Kayaks_Marine_RV_Trailer_andWaterproofforTrollingMotorIncludes12VoltAccessorySocket_Built-inVoltmeterFitsGroup24or27SizeBatteries9.webp?v=1723023826","width":1600}]

FEATURES SPECS FAQ REVIEWS

Looking for a portable and smart battery box to keep your battery safe and powered no matter where you go? Look no further than LiTime's portable battery box! With lightweight yet sturdy construction, water-resistant design, and ample ventilation, this battery box can withstand battery weights up to 66 lbs and is ideal for boats, RVs, travel trailers, and trolling motors.

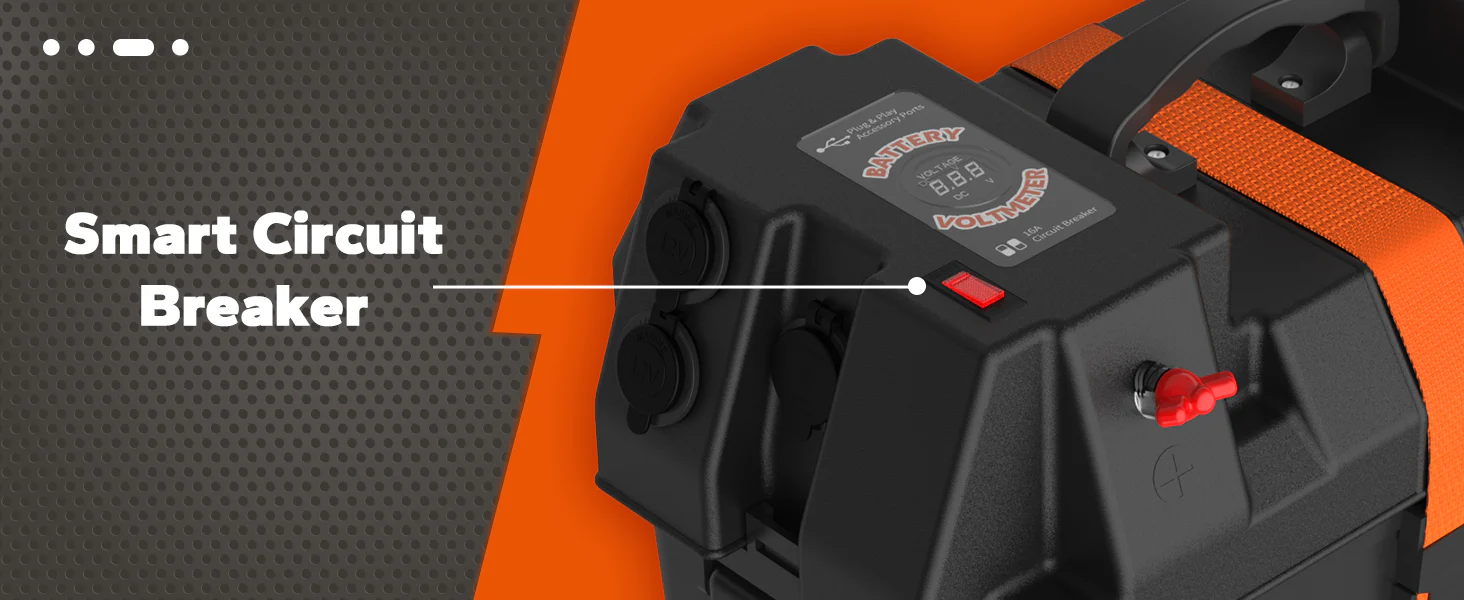

Smart Circuit Breaker

The Smart Circuit Breaker on the portable battery box prevents damage to your battery. 16A circuit breaker can be cut off to protect the battery box as the DC is over 16A, offering you a peaceful mind while using it.

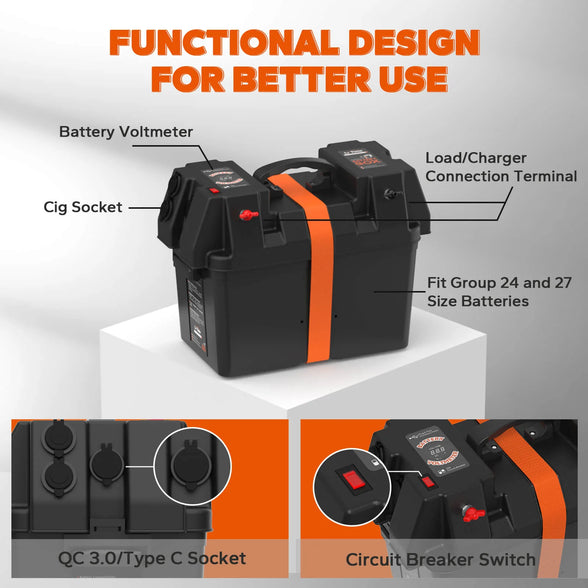

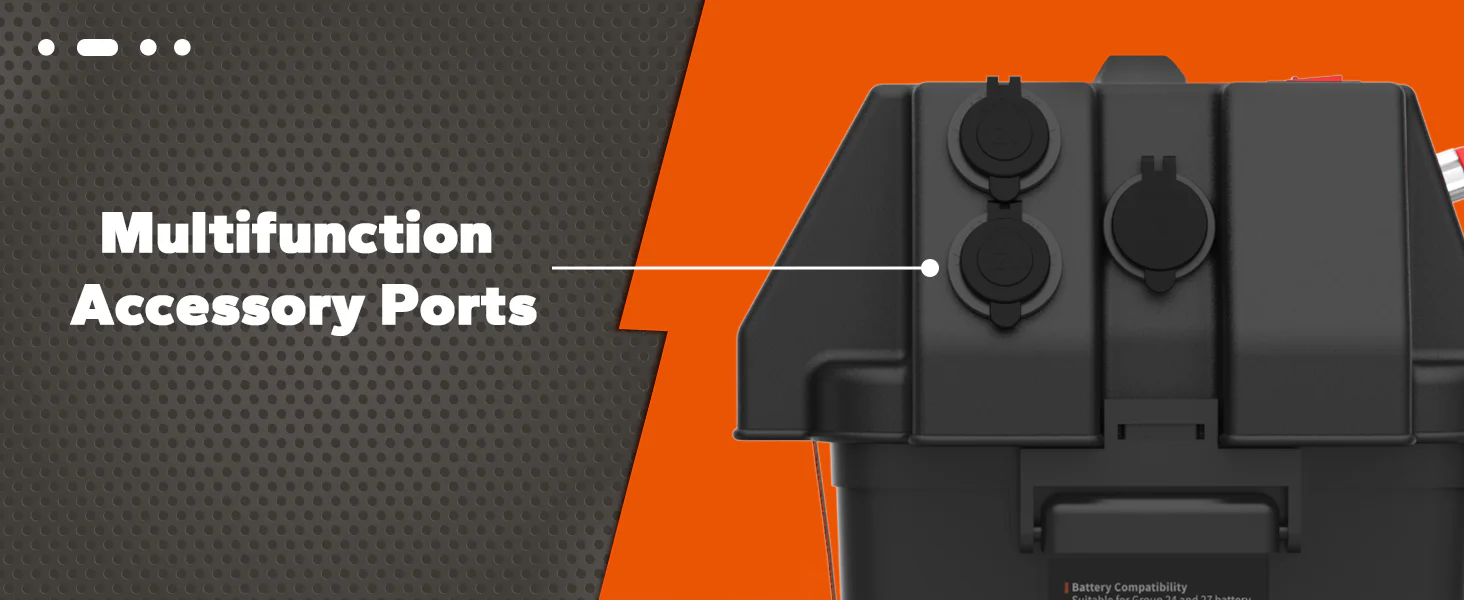

Multifunction Accessory Ports

Including two 15A cigarette lighter sockets, a QC 3.0 port, and a Type-C port. Whether on-the-go or at home, stay connected and powered up with the versatile charging options of the portable battery box.

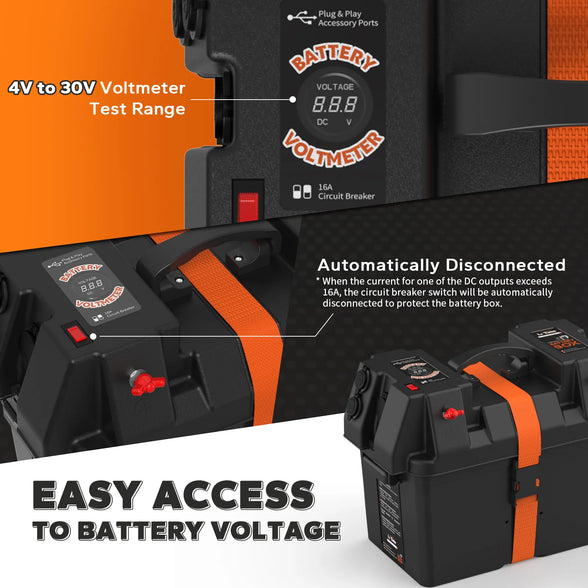

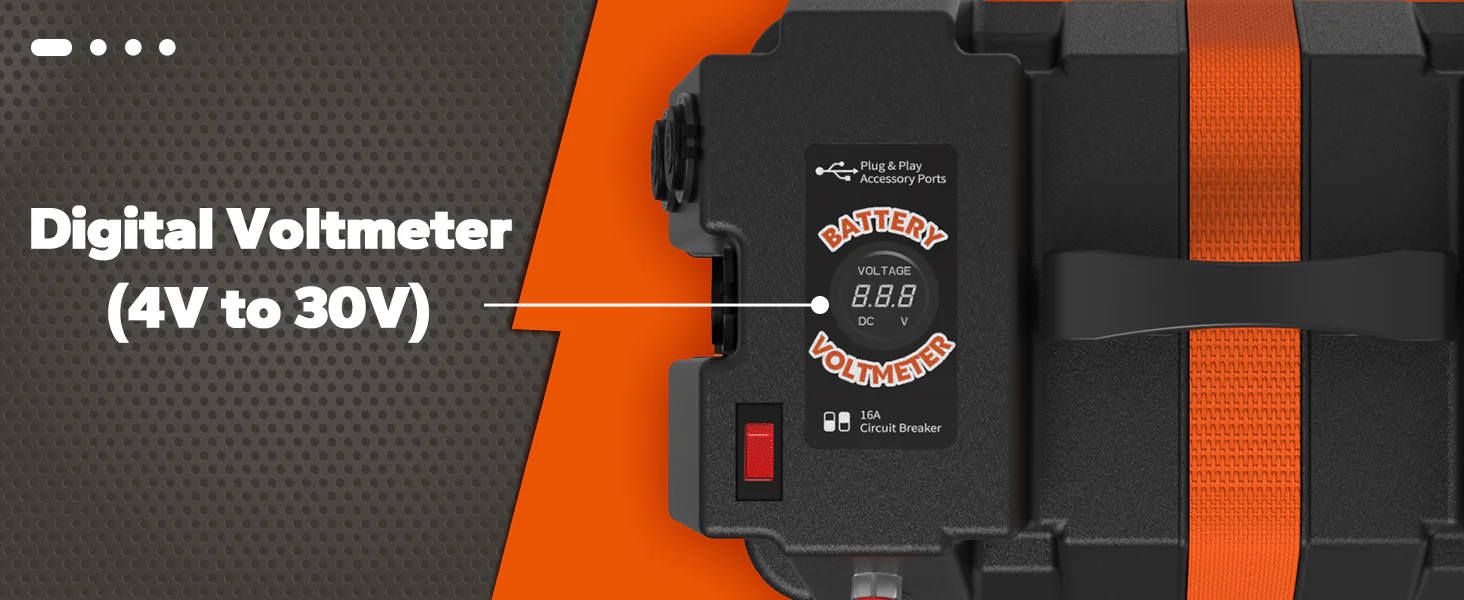

Digital Voltmeter

This innovative feature allows you to monitor your battery's real-time voltage and determine when it needs to be charged.

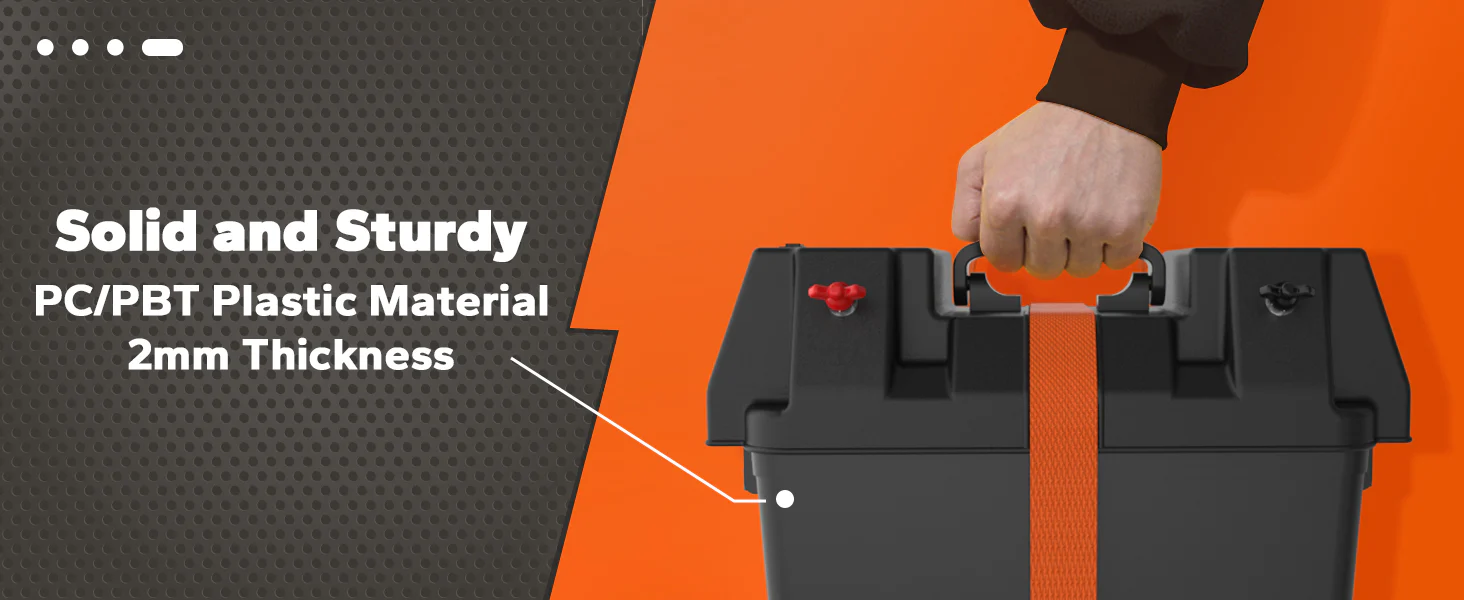

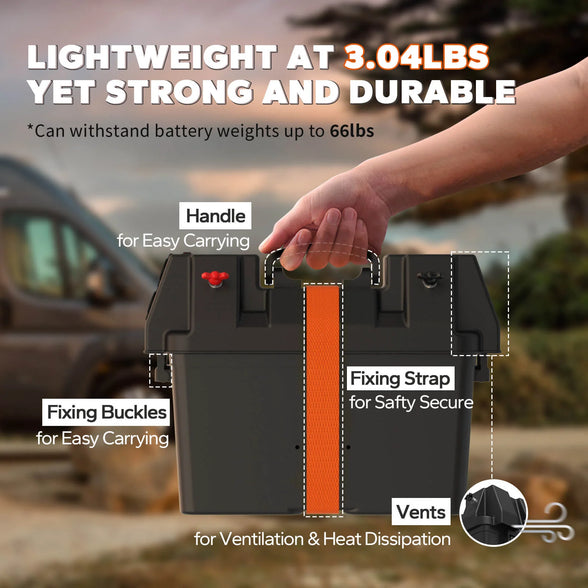

Solid and Sturdy

With unparalleled reliability and long-lasting performance, you can trust that your battery is always safe and secure with the battery protection box.

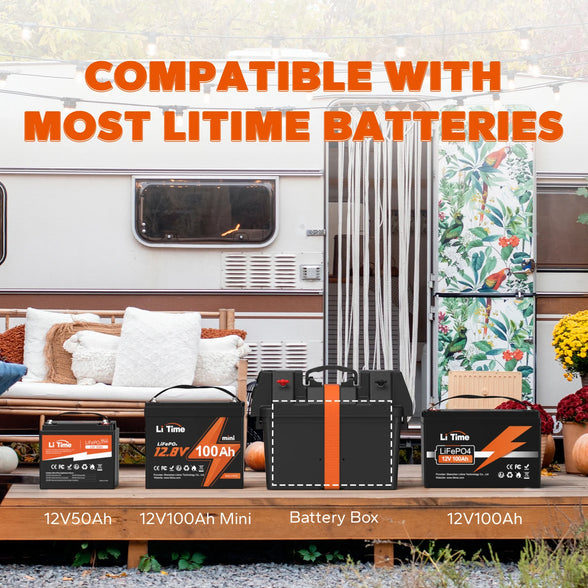

Versatile Battery Compatibility

LiTime portable battery box is versatile and compatible with multiple battery types, including group 24/27/31 sizes and Lithium/Gel/Sealed/Flooded types. Ideal for trolling motor batteries and compatible with LiTime 12V 50Ah, 12V 100Ah, 12V 100Ah TM, 12V 100Ah Self-Heating.

BASIC

DC Outlet：

QC 3.0, 5V 3A/9V 2A/12V 1.5A *1; TYPE-C,5V 5.6A/9V 3A *1; 12V 15A Cig Socket *2

Voltmeter Test Range：

4V to 12V

Circuit Breaker Switch：

12V 16A

Cables inside the Battery Box (to Connect the Battery)：

6AWG Silicone Cable, M8 Ring Terminal

Max Continuous Input/Output Current：

100A

Terminals on the Battery Box：

M8

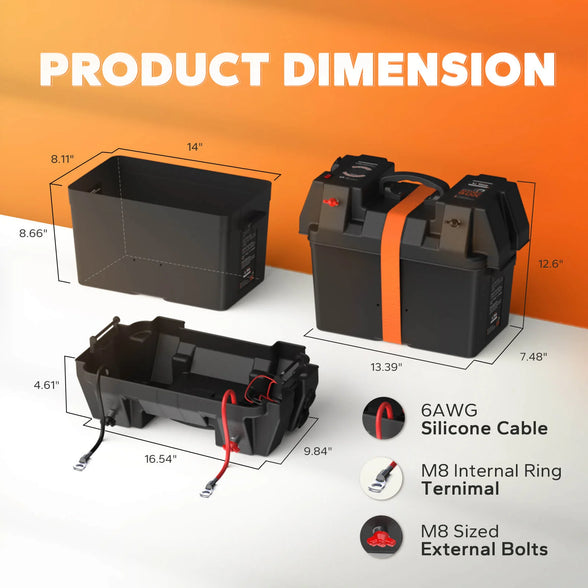

DIMENSIONS

Model：

LPBBG27

Compatible Battery Size：

Group 24, 27, 31

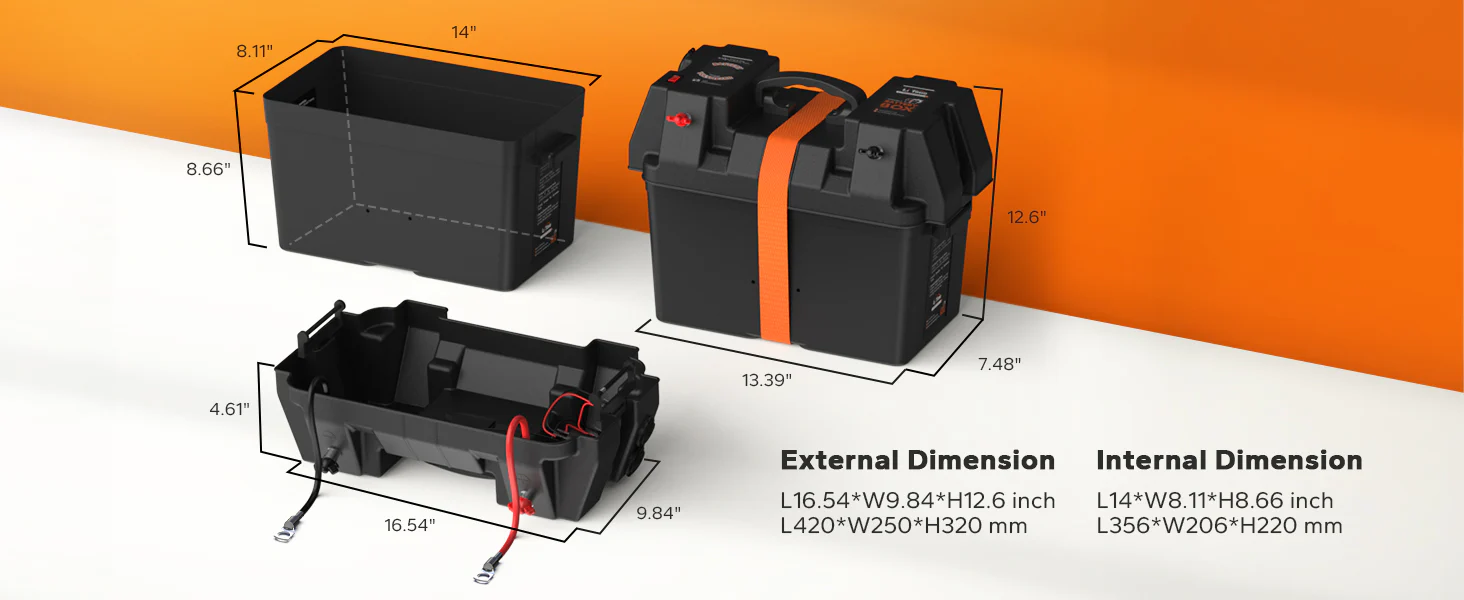

External Dimension：

L16.54*W9.84*H12.6 inch

Internal Dimension：

L14*W8.11*H8.66 inch

Case Material：

PC/PBT

Weight：

3.04 lbs

What does a battery box do?

Battery boxes extend the life of the battery and also protect your vehicle, equipment, and cargo from potential acid spills from your battery.

What sizes of batteries does the LiTime battery box fit?

The LiTime portable battery box is compatible with group 24, group 27, and group 31 size batteries. It comes with 6AWG Silicone Cable and M8 Ring Terminal, facilitating convenient battery connections. This portable battery box from LiTime is designed to work with Lithium, Gel, Sealed, and Flooded lead-acid battery types.

Do lithium batteries need to be in a box?

It is strongly advised to store all lithium-ion batteries in a moisture-resistant container to shield them from potential water damage. While these batteries offer limited water resistance, implementing these additional measures will enhance their overall lifespan.

Well constructed, has all the featues i could want for a very reasonable price

Good

The box is sturdy. I like that it has a 10amp fuse and volt meter. Would be perfect if it had a 60 amp circuit breaker but I added one without any problem.

If it fit it ships

I bought this for my LI Time 100AH TM battery as I could not find one that would fit my battery but this one does and it has al the features I wanted to add myself to a box, but this one comes all together for even cheaper price.

Great so far

I like that it is light weight and so far it has worked great as a sump pump back up battery.

Very good

Almost the perfect battery box. I have used 1 so far and it operates really well . Only issue for me is bit to tall for my installation. In my case I'm replacing existing batteries so wire are per existing so boxes have to go certain way . So the wiring studs on the boxes are facing the edge of box and there a metal rig at the same height.
